11 | Installation

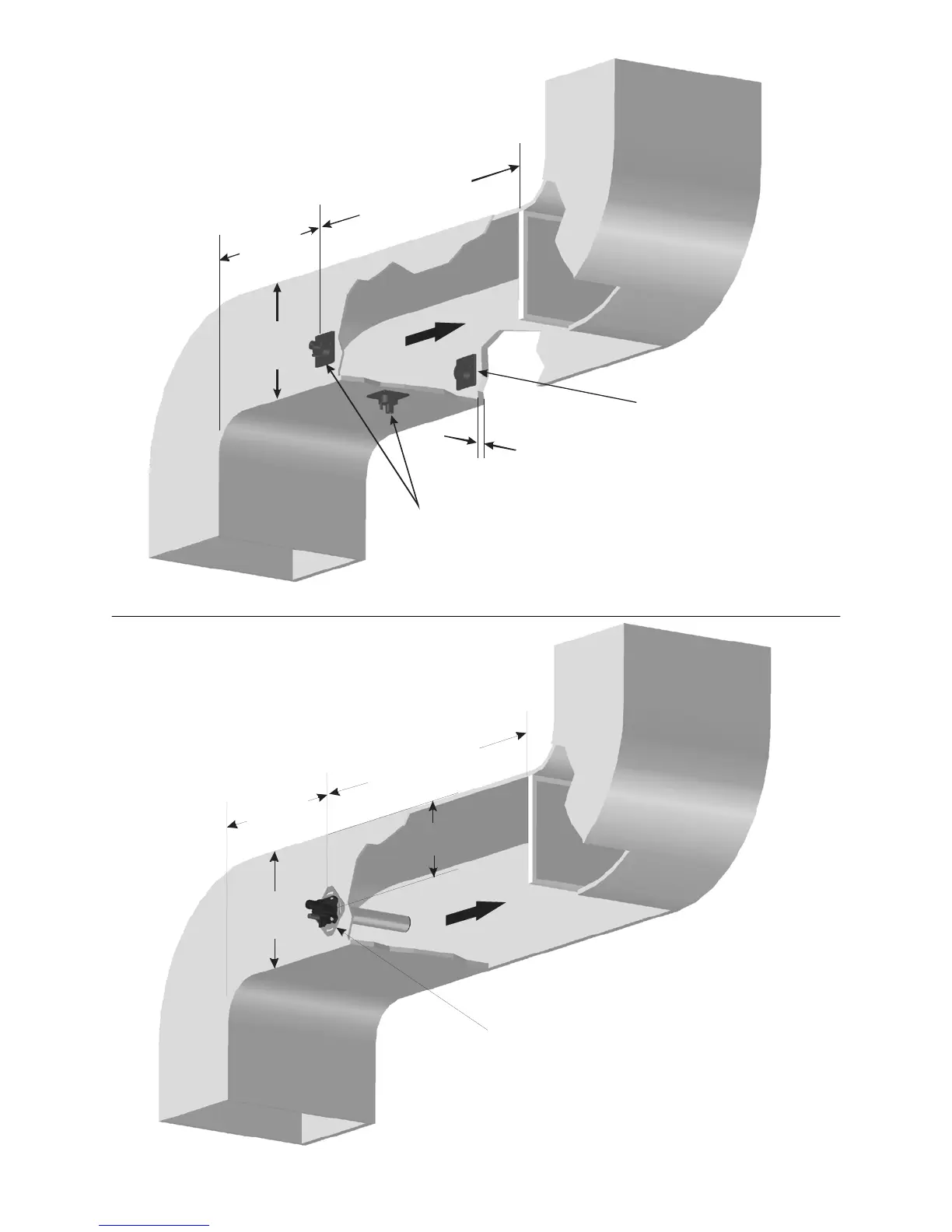

Figure 8: RH Distributor Installation
Figure 10: Steam Distributor Above Humidifier (Hose)
Figure 11: Steam Distributor Below Humidifier (Hose)
Figure 9: ASD10 Distributor Installation
12 in.
(30 cm)
min.
4 ft (1.2 m) min. to
any obstruction
Mount ASD distributor
to side of duct
2 x duct
height min.
2/3 Duct
Height
12 in.
(30 cm)
min.
3/4 in. (19 mm)
max. wall
thickness
Mount inside if
duct wall is
> 3/4 in. (19 mm)
4 ft (1.2 m) min. to
any obstruction
Mount distributor to
side or bottom of duct
2 x duct
height min.
