Installation | 20
Options and Accessories
Remote Blower Pack
A remote blower pack is available for the RH for applications where steam for humidification
must be introduced directly into the space being humidified but the humidifier must be installed
in a different location.
• For instructions on installing the remote blower pack refer to the installation instructions
supplied with it.
• The steam line instructions in this manual are also applicable to remote mounted blower
packs except the slope must be larger because the blower pack does not have a separate
condensate line and the maximum allowable steam line length is 4 ft (1.2 m)

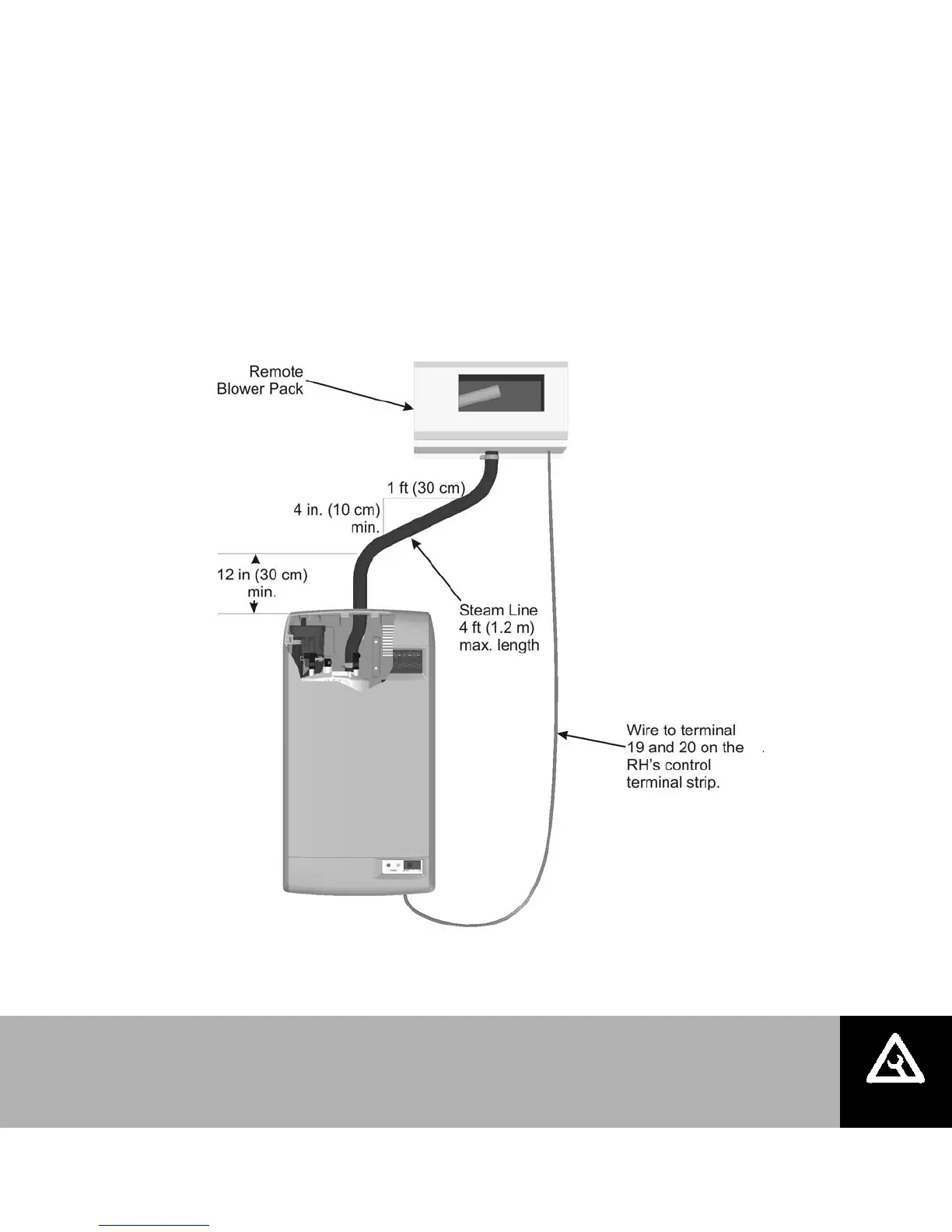

Figure 23: Remote Mounted Blower Pack
Note:
• The blower pack requires additional clearance see the instructions that came with it.
• The steam line slope for the blower pack is 4 in. / 1 ft (10 cm / 30 cm).
