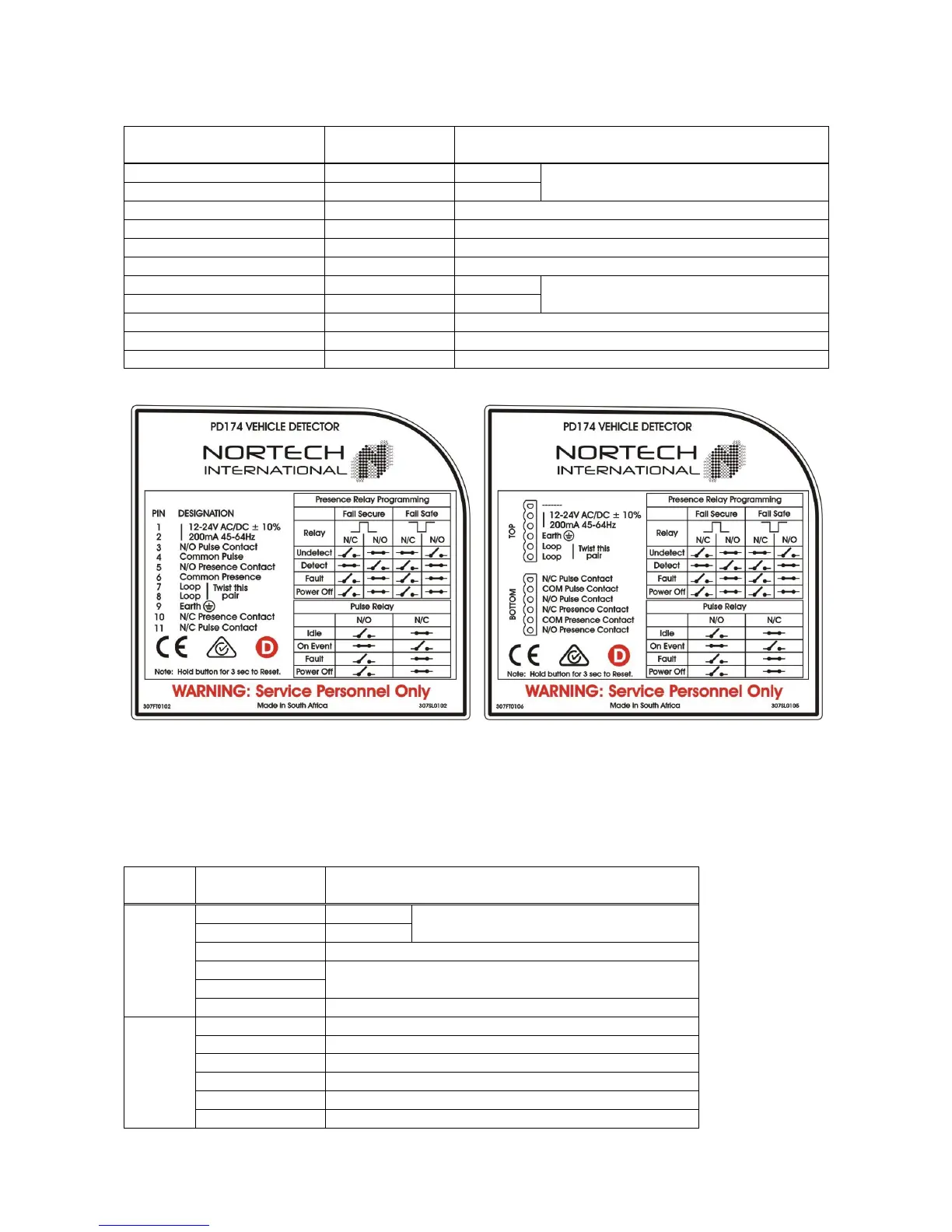

307UM0100_01 May 2016 PD17x User Manual Page 19 of 31
6.3 PD174 Enhanced Detector - Order number 307FT0102
11-pin connector wiring for PD174 DETECTOR - Order number 307FT0102
301FT0041 Wiring Harness
Wire COLOUR
11 PIN Connector
Pin No.
FUNCTION
Red
1
Live
Power supply
12-24V ± 10% DC/AC
Black
2
Neutral
Grey
3
N/O Pulse Contact
Violet
4
Common Pulse Contact
Yellow
5
N/O Presence Contact
Brown
6
Common Presence Contact
Blue
7
Loop
Twist this pair
Blue
8
Loop
Green/Yellow
9
Earth
Pink
10
N/C Presence Contact
White
11
N/C Pulse Contact
Figure 9. Example of PD17x side labels. Power supply requirements and pin connections are clearly stated on the side of the unit.
11 Pin configuration is shown on the left and DIN Rail version on the right
6.4 PD171 Enhanced Detector DIN Rail - Order number 307FT0104
DIN Rail connector wiring for PD171 DETECTOR - Order number 307FT0104
6 PIN Connector
Pin No.
FUNCTION
Top
1
Loop
Twist this pair
2
Loop
3
Earth
4
Power supply
120V AC ± 10% 50/60Hz
5
6
Not Connected
Bottom
7
N/C Pulse Contact
8
Common Pulse Contact
9
N/O Pulse Contact
10
N/C Presence Contact
11
Common Presence Contact
12
N/O Presence Contact
