2.2 Electrical Data
Power requirements 120V AC
± 10% (48 to 62Hz) (PD171)
230V AC ± 10% (48 to 62Hz) (PD172)
Requirement: 1.5 VA Maximum @ 230 V
12-24V ± 10% DC/AC (48 to 62Hz) (PD174)
Requirement: 1 VA Maximum @ 12 V
Relay Contact Rating Relay contact rating: 2A@30VDC, 0.5A@125VAC, 0.25A@250VAC
For ambient temperatures above 60°C de-rate the relay

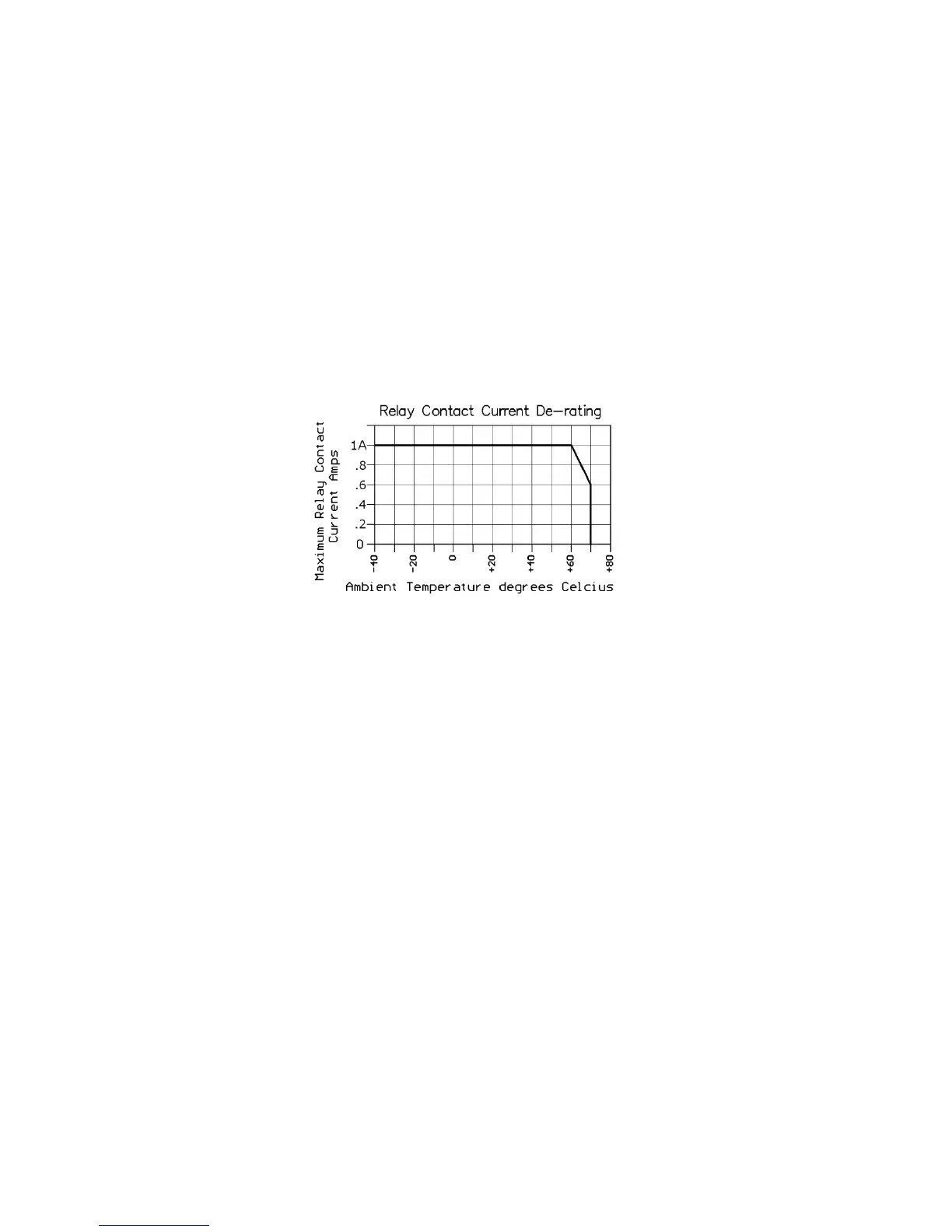

Maximum current as per graph below:
2.3 Environmental Data
Storage Temperature -40°C to +80°C
Operating Temperature -40°C to +80°C
Humidity Up to 95% relative humidity without condensation
Circuit protection Conformal coating over the PCB and all components
IP Rating IP30 – This product MUST be installed in an enclosure
2.4 Mechanical Data
Housing Material ABS blend
Mounting Position DIN rail mounting or Shelf
Connections 11-pin Submagnal (JEDEC No. B11-88) OR
2x 6 way Plugs on DIN Rail Mount
