307UM0100_01 May 2016 PD17x User Manual Page 7 of 31
The figure below shows the 11 pin connector on the rear of the PDx7x unit, as well as the DIN Rail clip for the DIN Rail
housing version. The 11 pin connector plugs into a relay base that accommodates all of the wiring for the unit. A list of
acceptable relay bases is given below. The DIN Rail housing plugs directly onto the DIN Rail and is fitted with 2x 6 way
connectors for wiring the necessary connections.

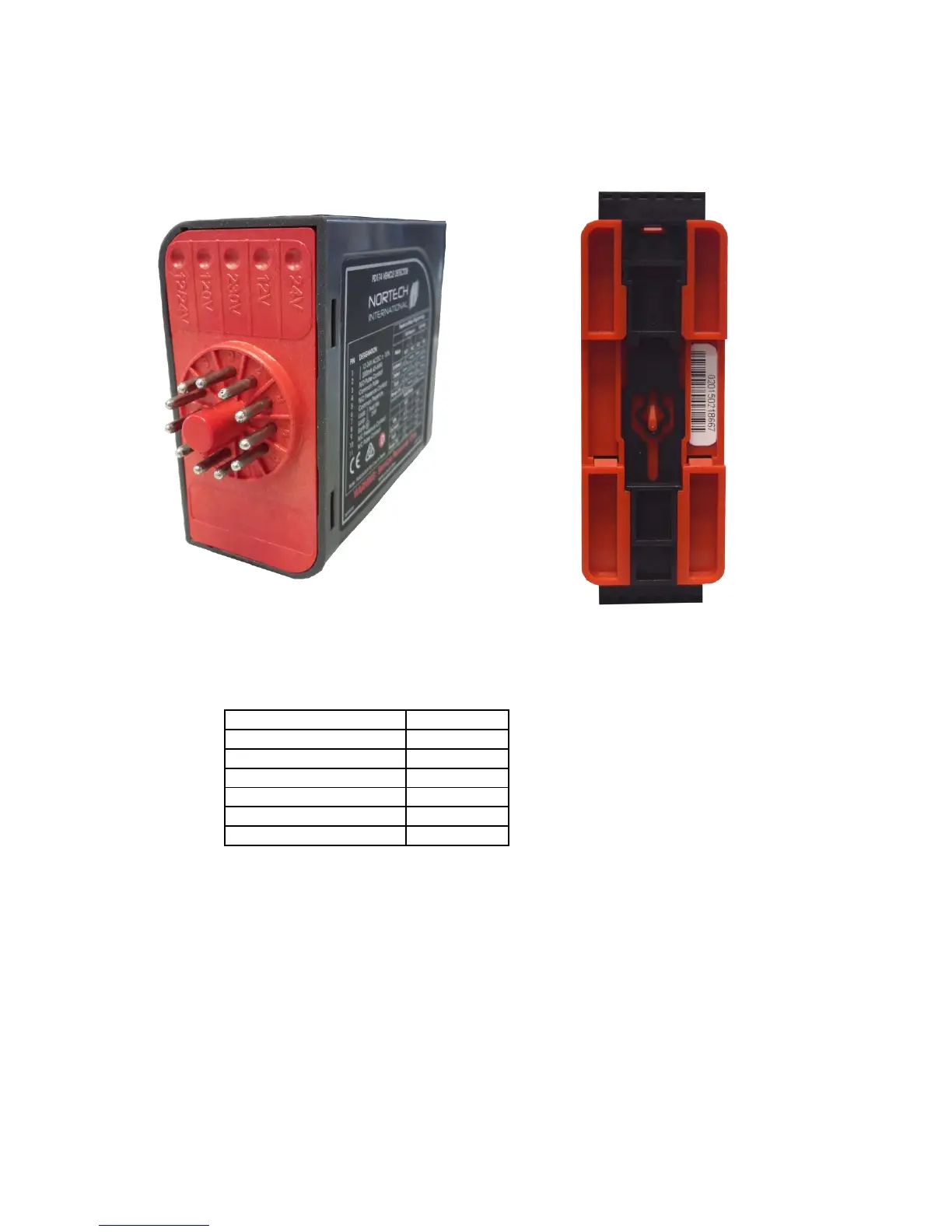

Figure 2. PDx7x rear view showing the 11 pin connector on the left and the DIN Rail housing on the right
Relay base recommendations:
Size of Housing 78mm ( High ) X 41mm ( Wide ) X 80mm ( Deep )
2.5 Approvals
CE Regulations: EN 301 489-3 Equipment Type: III Class of Equipment: 2
CISPR22
EN 50293 Performance Criteria B
Safety: IEC / EN 60950-1
