Nortech PD17x - PD172 Enhanced Detector DIN Rail - Order Number 307 FT0105; PD174 Enhanced Detector DIN Rail - Order Number 307 FT0106

307UM0100_01 May 2016 PD17x User Manual Page 20 of 31

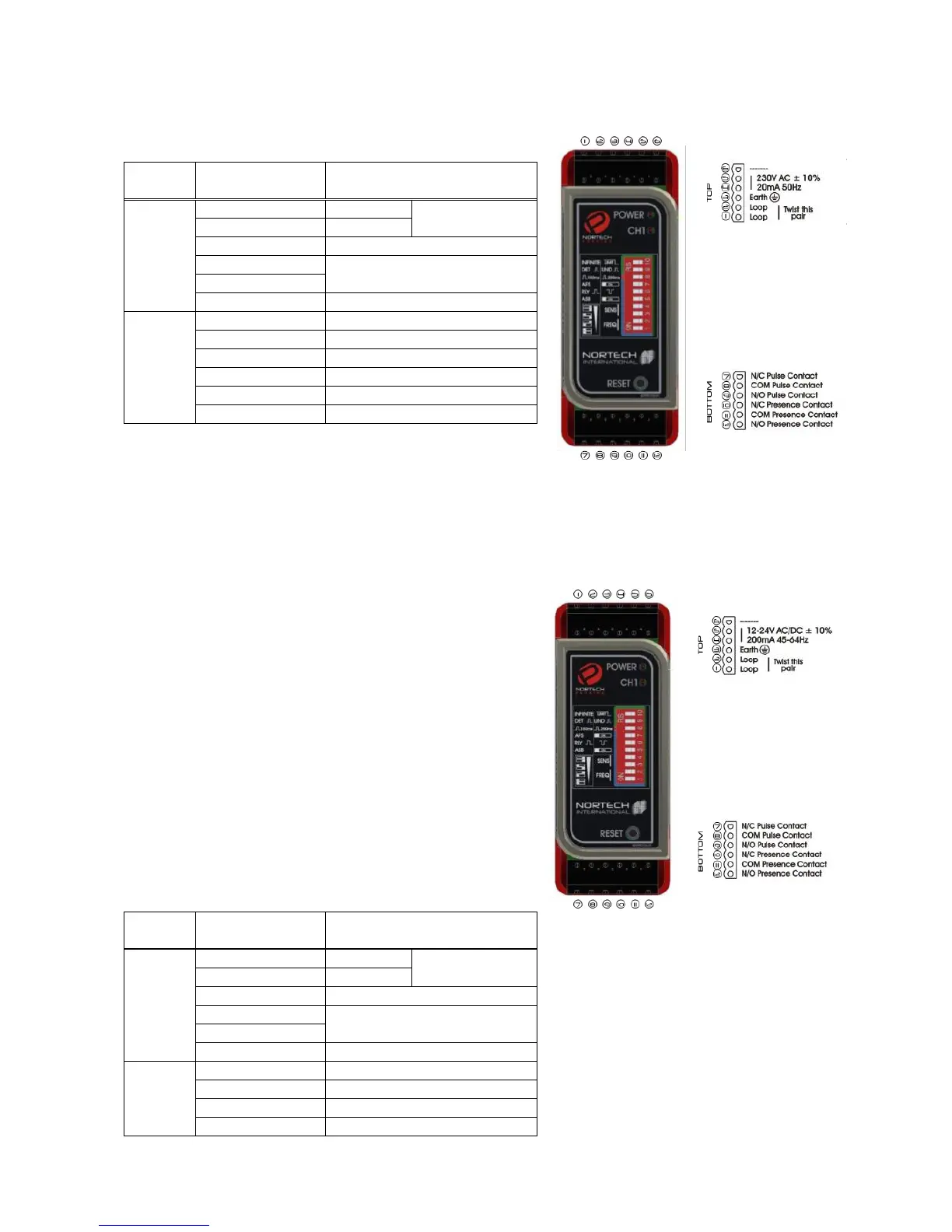

6.5 PD172 Enhanced Detector DIN Rail - Order number 307FT0105
DIN Rail connector wiring for PD172 DETECTOR - Order number 307FT0105
6 PIN Connector
Pin No.
FUNCTION
Top
1
Loop
Twist this pair
2
Loop
3
Earth
4
Power supply
230V AC ± 10% 50Hz
5
6
Not Connected
Bottom
7
N/C Pulse Contact
8
Common Pulse Contact
9
N/O Pulse Contact
10
N/C Presence Contact
11
Common Presence Contact
12
N/O Presence Contact
6.6 PD174 Enhanced Detector DIN Rail - Order number 307FT0106
DIN Rail connector wiring for PD174 DETECTOR - Order number 307FT0106
6 PIN Connector
Pin No.
FUNCTION
Top
1
Loop
Twist this pair
2
Loop
3
Earth
4
Power supply
12-24V ± 10% DC/AC
5
6
Not Connected
Bottom
7
N/C Pulse Contact
8
Common Pulse Contact
9
N/O Pulse Contact
10
N/C Presence Contact
