64 WLAN 2300 Series Outdoor Solution with AP Mounted in NEMA Enclosure
NN47250-503 (323847-C Version 02.01)

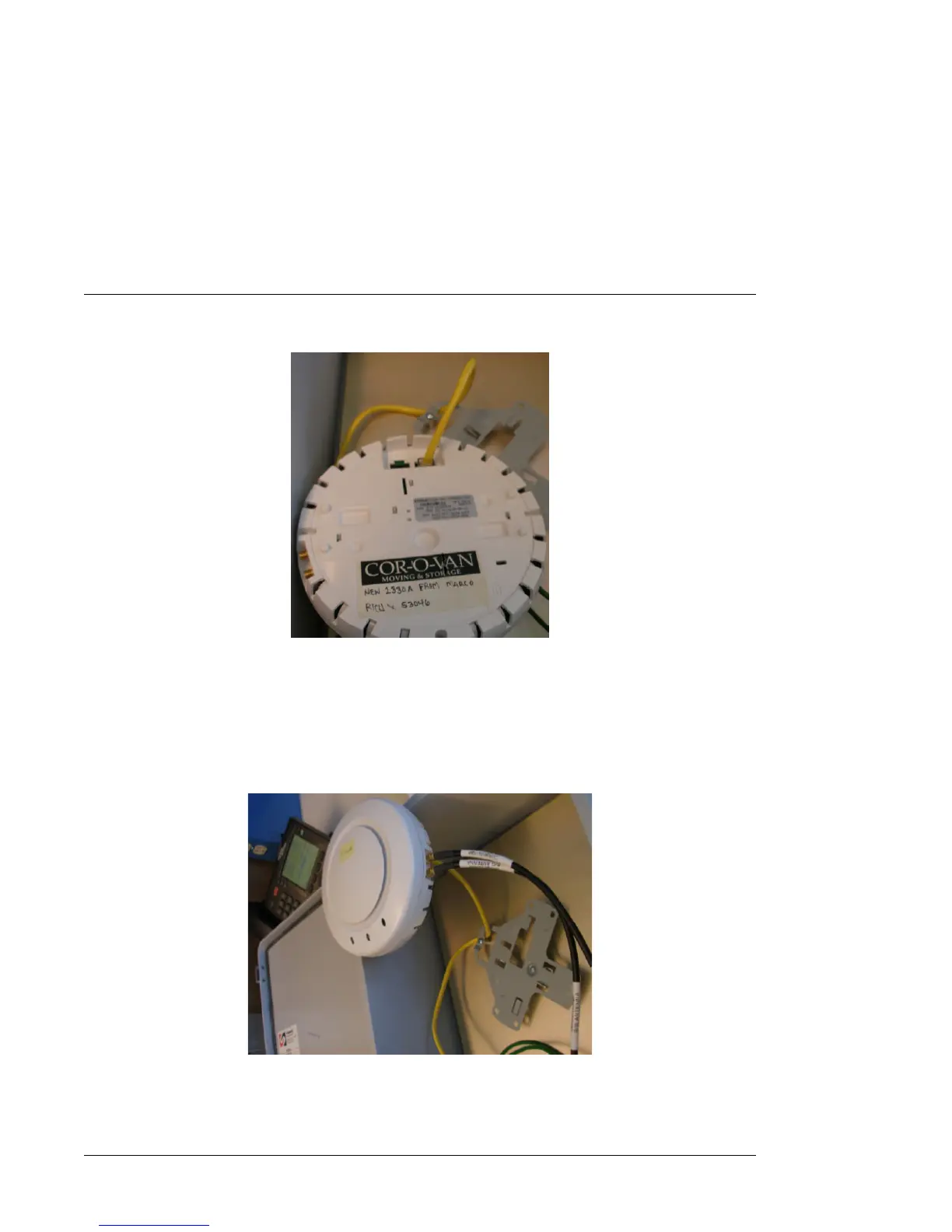

Figure 17. Connecting Ethernet cable to Port 1
13 Connect the external antenna cables to the AP as shown in Figure 18 .
11A Antenna cable connects to top connector.
11BG Antenna cable connects to bottom connector.
Figure 18. Connecting external antenna cables to the AP
14 Use a 5/16 wrench to tighten the external antenna connectors to the recommended specifications.
