Northstar M121/M84 Installation and Operation Manual38

50 kHz display

200/50 kHz display Mixed display

1 minute ago

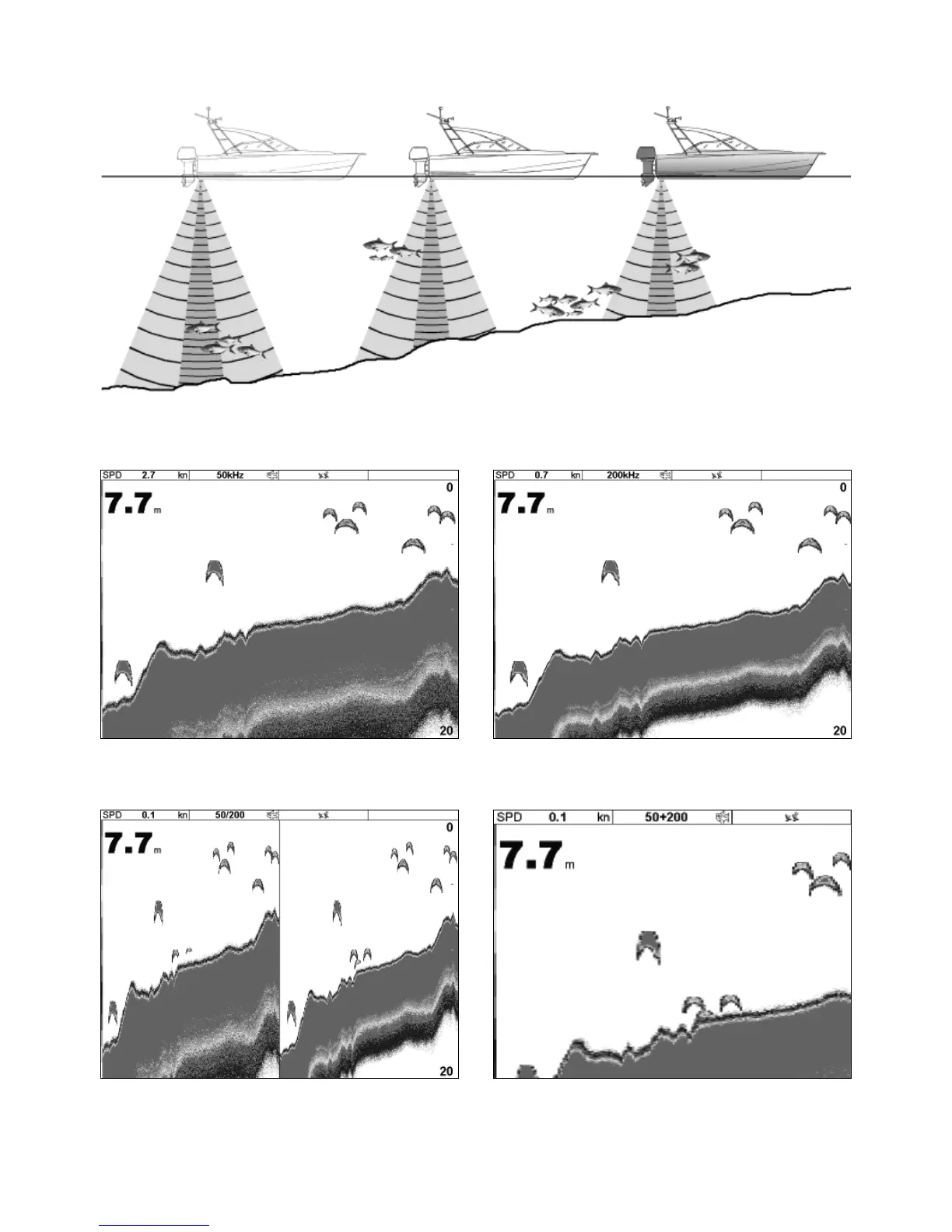

Comparison of the same fish scenario displayed at different frequencies:

30 seconds ago Now

200 kHz display
