Northstar M121/M84 Installation and Operation Manual46

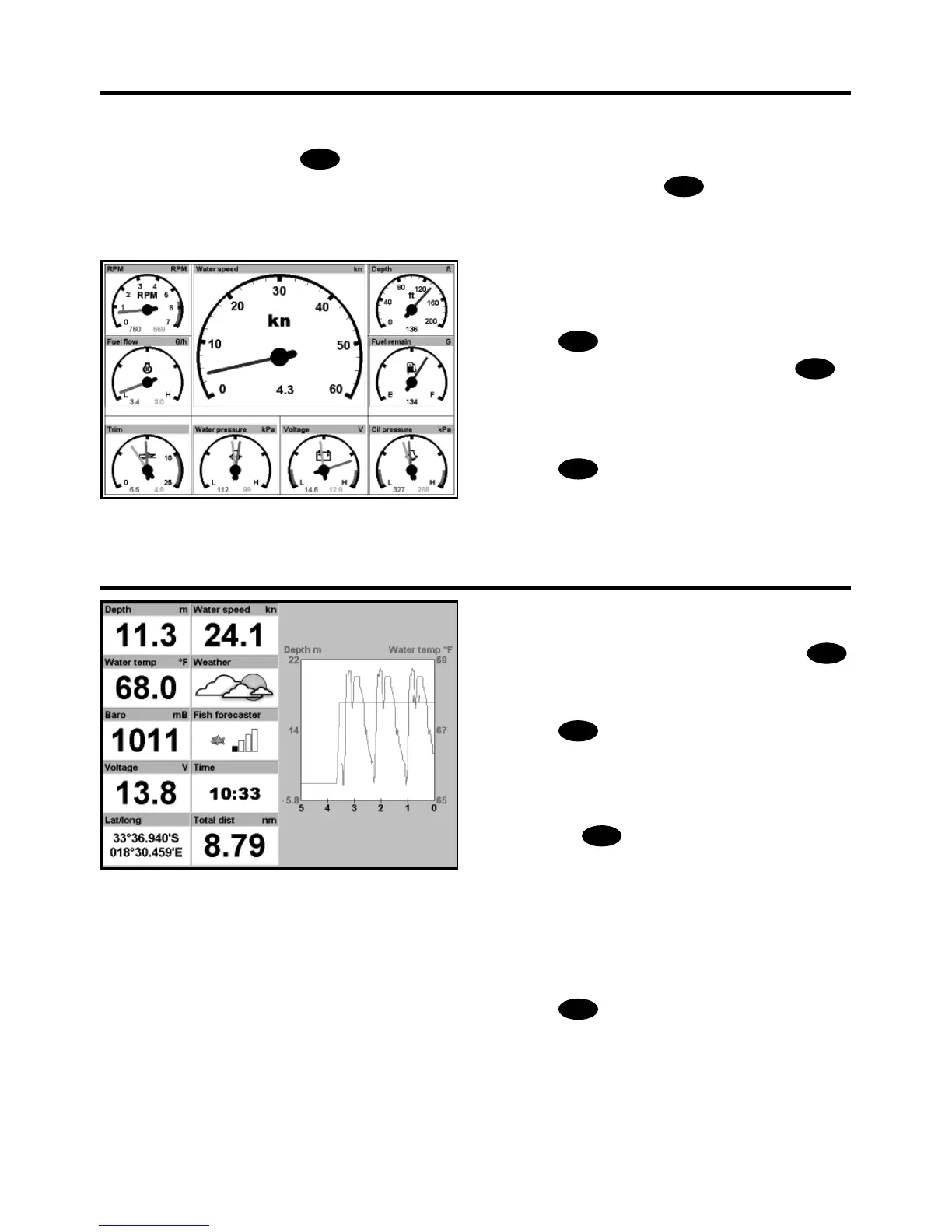

11 Gauges window
The Gauges window shows boat data, such
as water speed, as analog gauges. To select
the Gauges window, press
DISPLAY
, select More,
then select Gauges. Before using the Gauges
window, set Speed range, Max RPM and Max
fuel flow (see section 19-13).
Selecting a Gauges layout
The Gauges window can show one of four
gauge layouts. To select a layout from the
Gauges window, press
MENU
, select Layout and
select a layout.
Changing a gauge layout
You can change the data displayed on each
gauge in a layout.
1 Select the layout to change (see above).
2 Press
MENU
and select Gauge setup.
3 Highlight the gauge to change. Press
ENTER
and select the data to display in the gauge.
4 Repeat the above step to change other
gauges.
5 Press
ESC
.
12 Data window
The data window has large numeric data fields
and a graph of depth and water temperature if
available. To go to the data window, press
DISPLAY
,
select More, then select Data.
To select what data is displayed:
1 Press
MENU
and select Data setup.
2 Change a data field:
i Press the cursor keys to highlight the
field.
ii Press
ENTER
to display a menu of data
items.
iii Select a data item that is available on
your system or select None to leave the
field empty.
3 Repeat the above step to set the other data
fields.
4 Press
ESC
.
