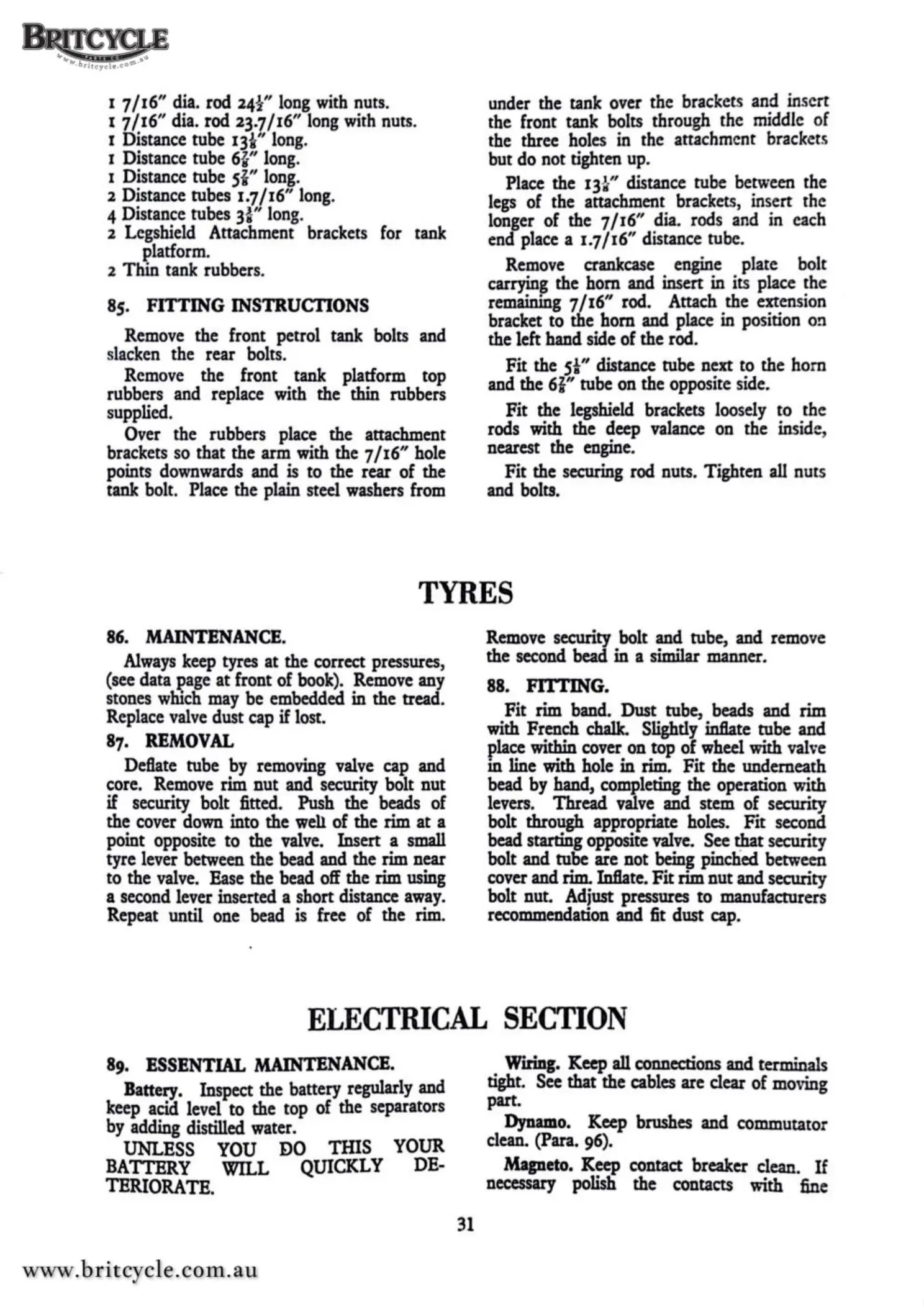

1 7 / 16"
dia.
rod
24½"
long
with
nuts.
1 7
/16"
dia. rod
23.7
/16"
long
with
nuts.
I Distance tube
13¼"
long.
I Distance tube
6f'
long.
1 Distance tube
St"
long.
2 Distance tubes
1.7
/16"
long.
4 Distance tubes
3¾"
long.
2
Lcgshield
Attachment brackets
for
tank
platform.
2 Thin tank rubbers.
85.
FITTING
INSTRUCTIONS
Remove
the front petrol tank
bolts
and
slacken
the rear bolts.
Remove
the front tank platform top
rubbers and replace
with
the thin rubbers
supplied.
Over
the rubbers
place
the attachment
brackets
so
that the arm
with
the 7
/16"
hole
points
downwards
and
is
to the rear of the
tank bolt.
Place
the plain steel
washers
from
under
the tank over the brackets and insert
the front tank bolts through the middle of
the three
holes
in
the attachment brackets
but
do
not tighten
up.
Place
the
13¼"
distance tube
between
the
legs
of the attachment brackets, insert the
longer
of
the 7
/16"
dia.
rods
and
in
each
end
place
a 1.7
/16"
distance tube.
Remove
crankcase
engine
plate bolt
carrying the horn and insert in its place the
remaining
7 /16"
rod.
Attach the extension
bracket to the horn and
place
in
position
on
the left hand side
of
the rod.
Fit the
s¼"
distance tube next to the horn
and
the 61" tube
on
the opposite
side.
Fit the
legshield
brackets
loosely
to the
rods
with the
deep
valance
on
the inside,
nearest the
engine.
Fit the securing rod nuts. Tighten all nuts
and
bolts.
TYRES
86.
MAINTENANCE.
Always
keep
tyres at the correct pressures,
(see
data
page
at front
of
book).
Remove
any
stones
which
may
be
embedded
in the tread.
Replace
valve
dust
cap
if
lost.
87.
REMOVAL
Deflate
tube
by
removing
valve
cap and
core.
Remove
rim nut and security bolt nut
if
security bolt
fitted.
Push the beads
of
the cover
down
into the
well
of the rim at a
point opposite to the
valve.
Insert a
small
tyre lever between the bead and the rim near
to the
valve.
Ease the bead
off
the rim
using
a second lever inserted a short distance
away.
Repeat until
one
bead
is
free of the
rim.
Remove
security bolt and tube, and
remove
the
second
bead in a
~jmilar
manner.
88.
Fl'ITING.
Fit rim band. Dust tube, beads and rim
with French
chalk.
Slightly
inftate tube and
place
within
cover
on top of
wheel
with
valve
in line
with
hole in rim. Fit the underneath
bead
by
hand,
completing
the operation with
levers.
Thread
valve
and stem of security
bolt through appropriate
holes.
Fit second
bead starting opposite
valve.
See
that security
bolt and tube are not
being
pinched between
cover
and rim. Inflate. Fit rim nut and security
bolt nut. Adjust pressures to manufacturers
recommendation
and
fit
dust cap.
ELECTRICAL
SECTION
89.
ESSENTIAL
MAINTENANCE.
Battery.
Inspect the battery regularly
and
keep
acid
level to the top of the separators
by
adding distilled water.
UNLESS
YOU
DO
THIS
YOUR
BATl'ERY
WILL
QUICKLY
DE-
TERIORATE.
31
Wiring.
Keep
all connections and terminals
tight.
See
that the
cables
are clear of
moving
part.
Dynamo.
Keep brushes and commutator
clean.
(Para. 96).
Magneto.
Keep
contact breaker clean. If
necessary
polish the contacts with
fine
