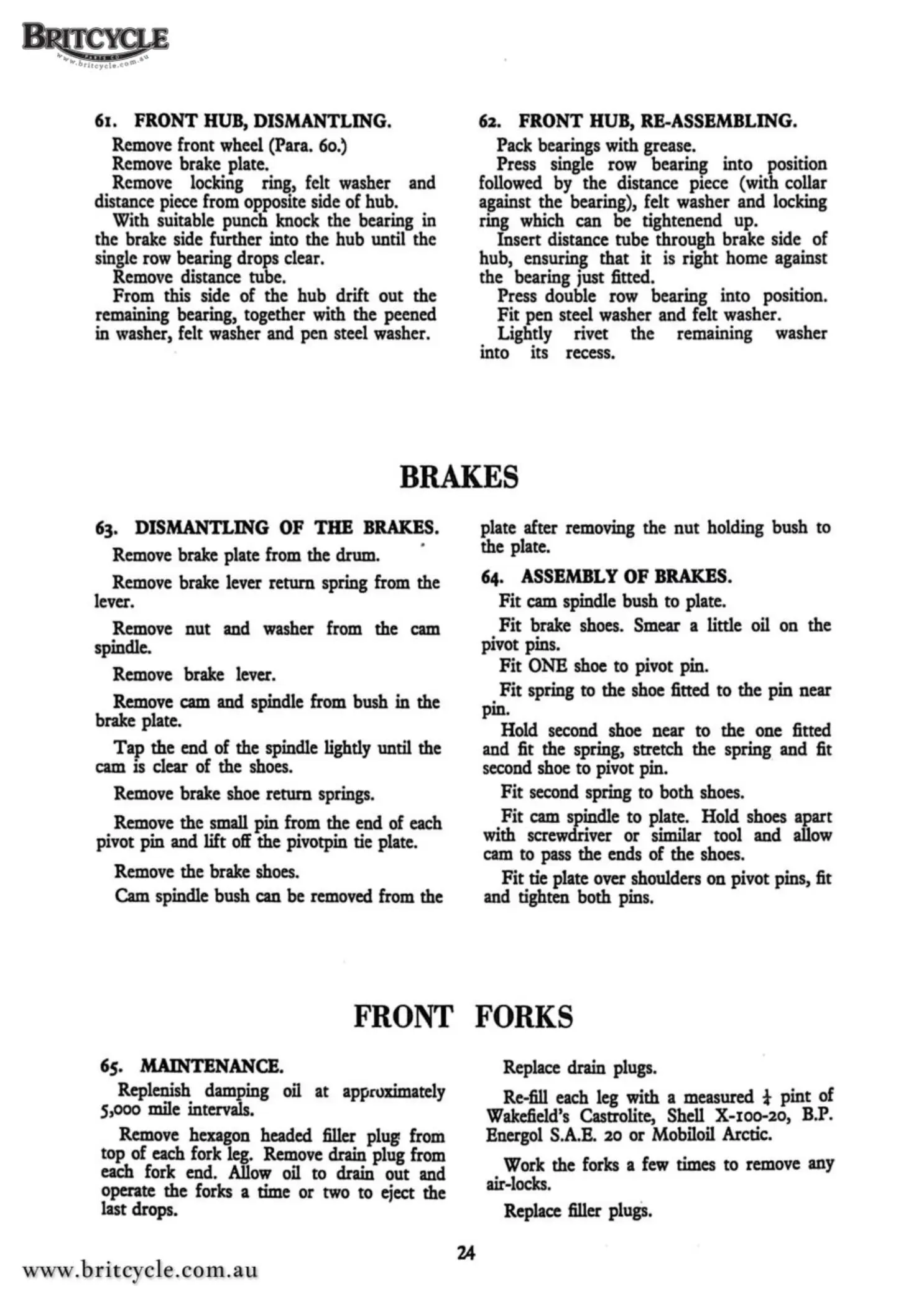

61.
FRONT
HUB,
DISMANTLING.
Remove front wheel (Para. 60.)
Remove brake plate.
Remove locking ring, felt washer and
distance piece from opposite side of hub.
With suitable punch knock the bearing in
the brake side further into the hub until the
single row bearing drops clear.
Remove distance tube.
From
this side of the hub drift
out
the
remaining bearing, together with the peened
in washer, felt washer and pen steel washer.
62.
FRONT
HUB,
RE-ASSEMBLING.
Pack bearings with grease.
Press single row bearing into position
followed by the distance piece ( with collar
against the bearing), felt washer and locking
ring which can
be
tightenend up.
Insert distance tube through brake side
of
hub, ensuring that it is right home against
the bearing just fitted.
Press double row bearing into position.
Fit
pen steel washer and felt washer.
Lightly rivet the remaining washer
into its recess.
BRAKES
63.
DISMANTLING
OF
THE
BRAKES.
Remove brake plate from the drum.
Remove brake lever return spring from the
lever.
Remove
nut
and washer from the cam
spindle.
Remove brake lever.
Remove
cam
and spindle from bush in the
brake plate.
Tap
the end of the spindle lightly until the
cam
is clear of the shoes.
Remove brake shoe return springs.
Remove the small pin from the end of each
pivot pin and lift
off
the pivotpin tie plate.
Remove the brake shoes.
Cam
spindle bush can be removed from the
plate after removing the
nut
holding bush to
the plate.
64.
ASSEMBLY
OF
BRAKES.
Fit
cam
spindle bush
to
plate.
Fit
brake shoes. Smear a little oil on the
pivot pins.
Fit
ONE shoe to pivot pin.
.
Fit
spring to the shoe fitted
to
the
pin near
pm.
Hold second shoe near to the one fitted
and fit the spring, stretch the spring and fit
second shoe to pivot pin.
Fit
second spring to both shoes.
Fit
cam
spindle
to
plate. Hold shoes apart
with screwdriver
or
similar tool and allow
cam to pass the ends
of
the shoes.
Fit
tie plate over shoulders
on
pivot pins, fit
and tighten both pins.
FRONT
FORKS
6s.
MAINTENANCE.
Replenish damping oil at approximately
5,000
mile intervals.
Remove hexagon headed filler plug from
top
of
each fork leg. Remove drain plug from
each fork end. Allow oil to
drain
out and
operate the forks a time or two to eject the
last drops.
24
Replace
drain
plugs.
Re-fill each leg with a measured ¼ pint of
Wakefield's Castrolite, Shell
X-100-20,
B.P.
Energol S.A.E.
20
or
Mobiloil Arctic.
Work the forks a few times to remove any
air-locks.
Replace filler plugs.
