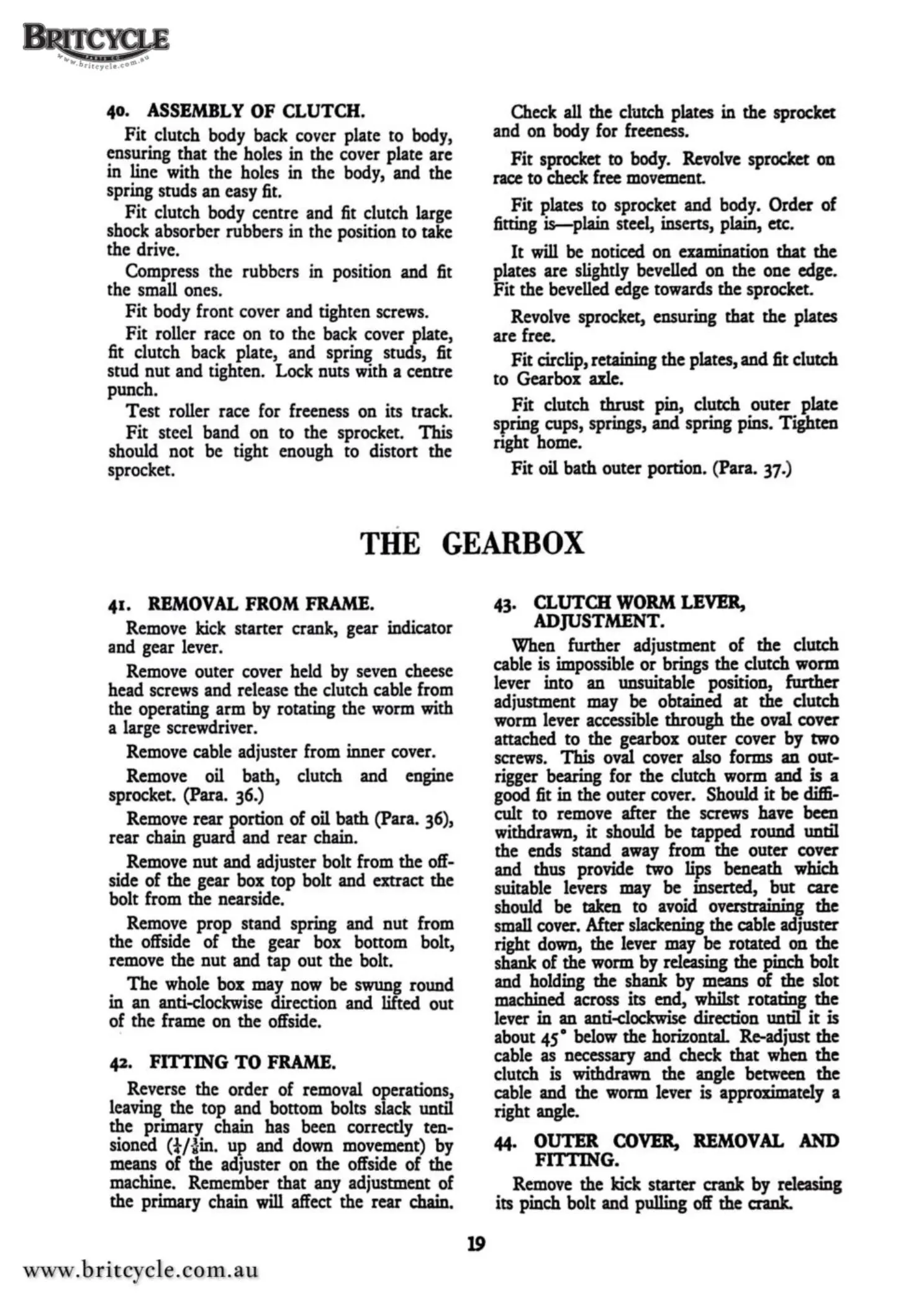

40. ASSEMBLY OF CLUTCH.
Fit clutch body back cover plate to body,
ensuring that the holes in the cover plate are
in line with the holes
in the body, and the
spring studs an easy fit.
Fit clutch body centre and fit clutch large
shock absorber rubbers in the position to take
the drive.
Compress the rubbers in position and fit
the small ones.
Fit body front cover and tighten screws.
Fit roller race on to the back cover plate,
fit clutch back plate, and spring studs, fit
stud nut and tighten. Lock nuts with a centre
punch.
Test roller race for freeness on its track.
Fit steel band on to the sprocket. This
should not be tight enough to distort the
sprocket.
.
Check all the clutch plates in the sprocket
and on body for freeness.
Fit sprocket to body. Revolve sprocket on
race to check free movement.
Fit plates to sprocket and body. Order of
fitting
is-plain steel, inserts, plain, etc.
It will be noticed on examination that the
plates are slightly bevelled on the one
edge.
Fit the bevelled edge towards the sprocket.
Revolve sprocket, ensuring that the plates
are free.
Fit circlip, retaining the plates, and fit clutch
to Gearbox axle.
Fit clutch thrust pin, clutch outer plate
spring cups, springs, and spring pins. Tighten
right home.
Fit oil bath outer portion. (Para. 37.)
THE GEARBOX
41. REMOVAL FROM FRAME.
Remove kick starter crank, gear indicator
and gear lever.
Remove outer cover held by seven cheese
head screws and release the clutch cable from
the operating arm by rotating the worm with
a large screwdriver.
Remove cable adjuster from inner cover.
Remove oil bath, clutch and engine
sprocket. (Para. 36.)
Remove rear portion of oil bath (Para. 36),
rear chain guard and rear chain.
Remove nut and adjuster bolt from the off-
side
of the gear box top bolt and extract the
bolt from the nearside.
Remove prop stand spring and nut from
the offside of the gear box bottom bolt,
remove the nut and tap out the bolt.
The whole box may now be swung round
in an anti-clockwise direction and lifted out
of the frame on the offside.
42. FITTING TO FRAME.
Reverse the order of removal operations,
leaving the top and bottom bolts slack until
the primary chain has been correctly ten-
sioned (¼/}in. up and down movement) by
means
of the adjuster on the offside of the
machine. Remember that any adjustment of
the primary chain
will affect the rear chain.
19
43. CLUTCH WORM LEVER,
ADJUSTMENT.
When further adjustment of the clutch
cable
is impossible or brings the clutch worm
lever into an unsuitable position, further
adjustment may
be obtained at the clutch
worm lever accessible through the oval cover
attached to the gearbox outer cover
by two
screws. This oval cover also forms an out-
rigger bearing for the clutch worm and is a
good fit in the outer cover. Should it be diffi-
cult to remove after the screws have been
withdrawn, it should be tapped round until
the ends stand away from the outer cover
and thus provide two lips beneath which
suitable levers may be inserted, but care
should be taken to avoid overstraining the
small cover. After slackening the cable adjuster
right down, the lever may be rotated on the
shank of the worm by releasing the pinch bolt
and holding the shank by means of the slot
machined across its end, whilst rotating the
lever in an anti-clockwise direction until it is
about 45° below the horizontal. Re-adjust the
cable as necessary and check that when the
clutch is withdrawn the angle between the
cable and the worm lever
is approximately a
right angle.
44. OUTER COVER, REMOVAL AND
FIT'flNG.
Remove the kick starter crank by releasing
its pinch bolt and pulling off the
crank.
