Operation Description
14
2.2 Product Description
The following information will help you use, maintain, adjust and troubleshoot the 40XT and 50XT tractors.
These series of wheeled tractor are medium-sized tractors that can be used in a variety of land types. The tractors have
a compact structure and are easy to control with responsive steering, a high lift capacity and low maintenance.
2.3 Operating Controls and Tractor Instrumentation

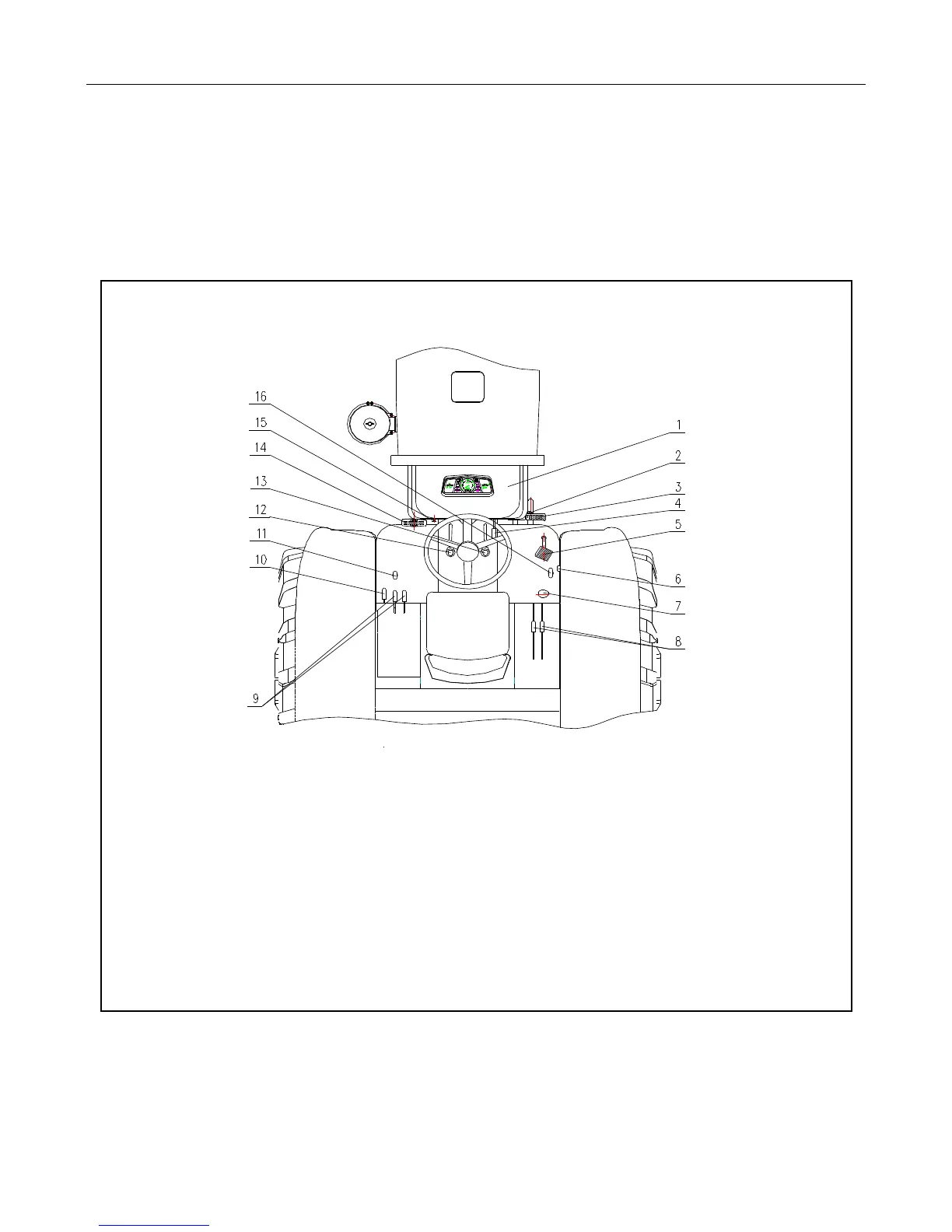

Operating Controls Diagram
1. Instrument panel 2. Brake pedal locking bar 3. Left/Right brake pedals 4. Parking brake lever
5. Throttle foot pedal 6. Throttle lever 7. Differential lock pedal 8. Three-point lift lever
9. Hydraulic output levers (a. optional multi-way hydraulic valve b. optional single-way hydraulic valve)
10. Power takeoff (PTO) lever 11. Front drive handle (four-wheel drive) 12. Main gear shift lever
13. High/low gear shift lever 14. Clutch pedal 15. Fuel shutoff cable
16. Shuttle gear shifting lever forward/reverse
Figure 2-1 Operation
control mechanism
diagram
