Operation Description
18

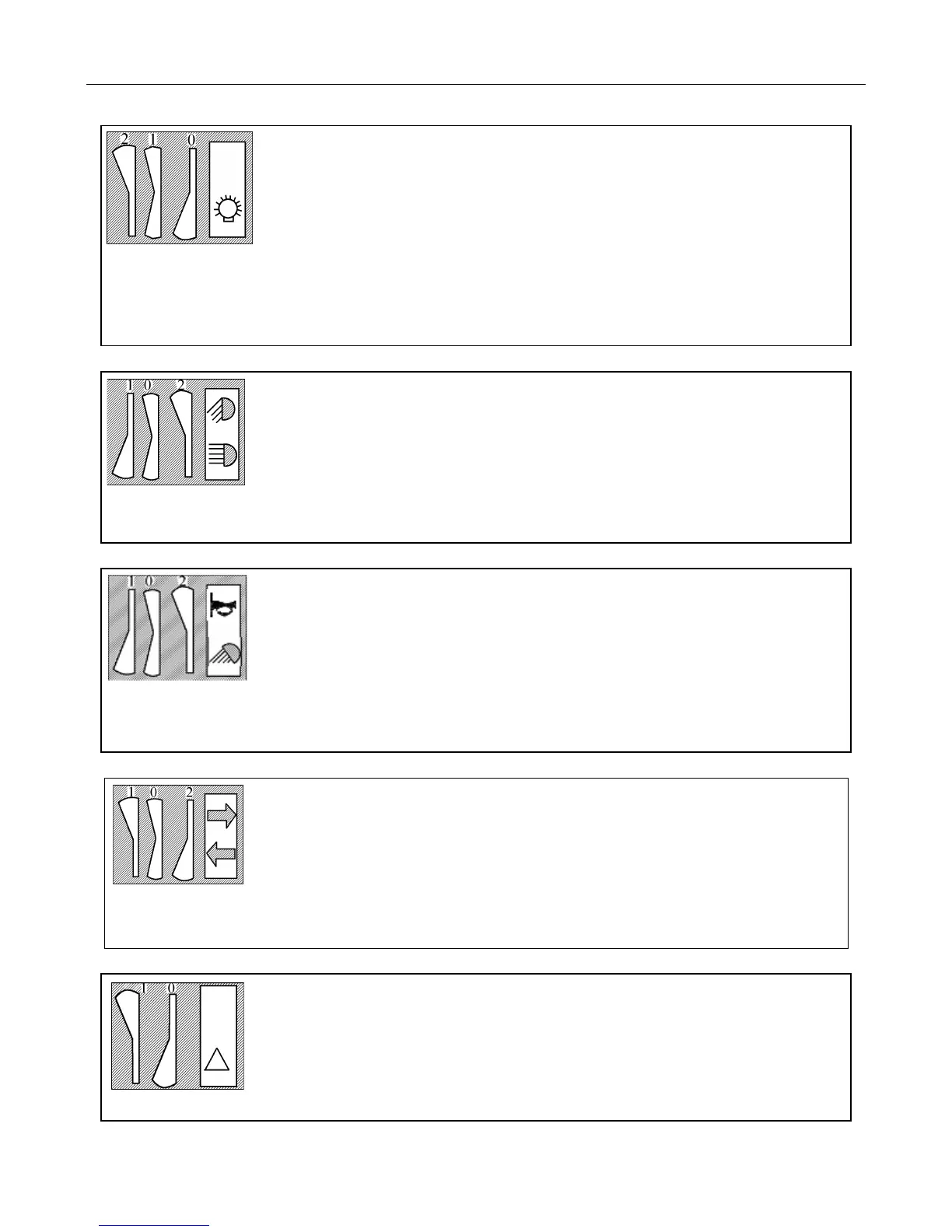

2.3.2 Tractor Control Switches
Headlight and Taillight Switch
Position ―2‖ Instrument panel lights are on, taillights are on, headlights are on if
high/low dimmer switch is set to high or low beam.
Position ―1‖: Instrument panel lights are on, headlights and taillights are off.
Position ―0‖: Headlights, taillights, and instrument panel lights are off.
Figure 2- 13 Headlight and Taillight Switch
High/Low Dimmer Switch
Position ―1‖: Headlights are on low beam if headlight switch is in Position ―2.‖
Position ―0‖: Headlights are off.
Position ―2‖ Headlights are on high beam if headlight switch is in Position ―2.‖
Figure 2-14 Headlight High/Low Beam Switch
Rear Work Lights and Horn Switch
Position ―1‖: Sounds the horn.
Position ―0‖: Rear work lights and horn are off.
Position ―2‖: Turns on the rear work lights on rear fenders.
Figure 2-15 Rear Lamp/Horn Switch
Turn Signal Switch
Position ―1‖: Turns on left turn signal.
Position ―0‖ Turns off both turn signals.
Position ―2‖: Turns on right turn signal.
Figure 2-16 Turn Signal Switch
Hazard Warning Switch
Position ―1‖ Hazard warning lights are on.
Position ―0‖: Hazard warning lights are off.
Figure 2-17 Hazard Warning Switch
