$SSHQGL[ $ $QQXQFLDWRUV
Connecting Annunciators
A-16 AFP-300/AFP-400 Installation PN 50253:C1 05/22/97
$&6DQG/'06HULHV(,$&RQQHFWLRQ
&RQQHFWLRQ *XLGHOLQHV
When operating an ACS series annunciator, including the LDM-32), connect the
annunciator to TB4 on the CPU using an EIA-485 circuit as shown in Figure A-5.
• The circuit is power-limited and supervised.
• You can connect up to 32 devices (such as ACMs, LDMs, and AFMs) to the
control panel using ten unique addresses. Only one device per address can answer
back.
• Maximum distance between the control panel and the furthest annunciator: 6,000
feet (@16 AWG).
• Use twisted-pair cable with a characteristic impedance of approximately 120
ohms.
• An EIA-485 circuit is rated 5.5 VDC max., 60 mA max.
• Refer to the ACS Manual and the LDM Manual for additional information.
$&6 DQG /'0 6HULHV
(,$ &RQQHFWLRQV

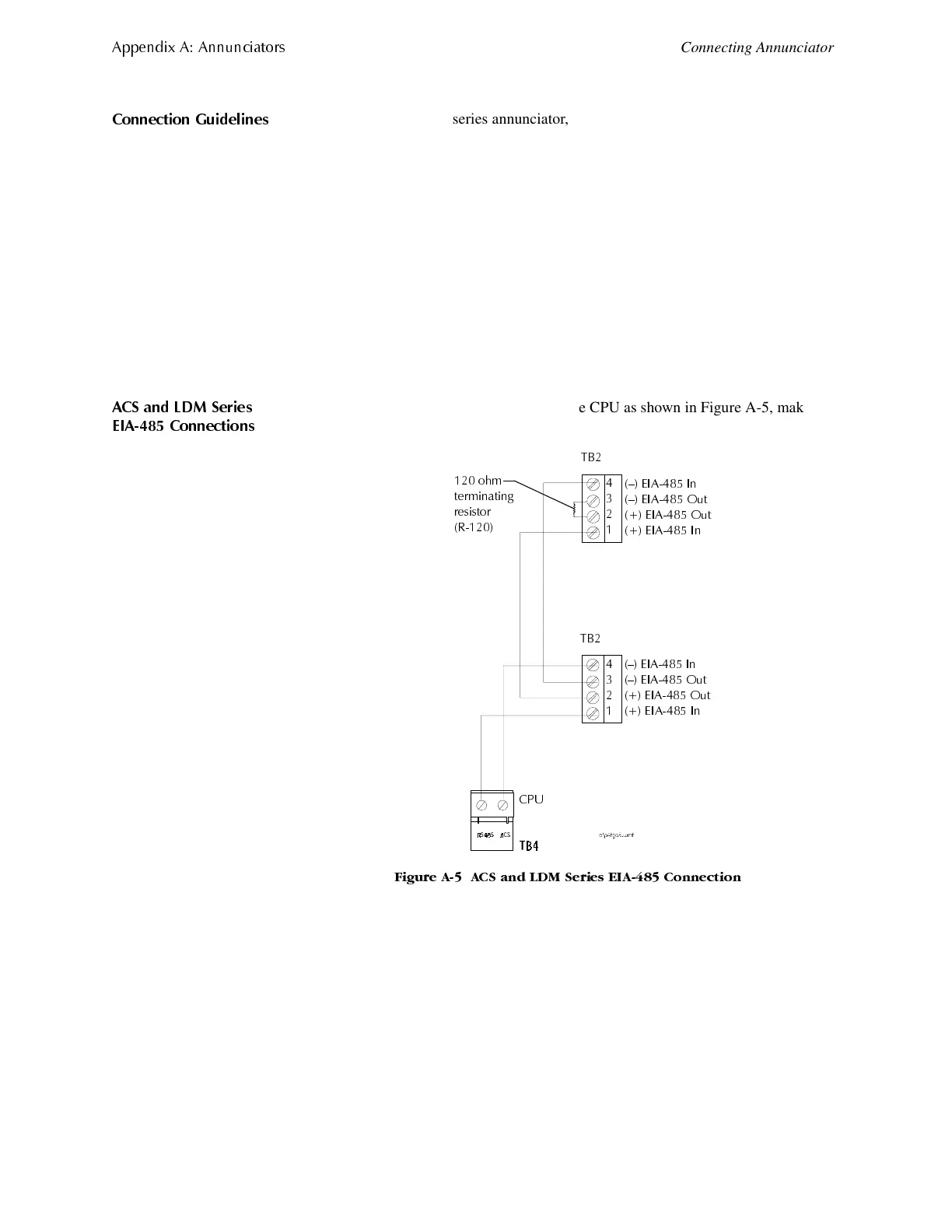

Connect ACS- and LDM- series devices to the CPU as shown in Figure A-5, making
sure to install a 120 ohm terminating resistor on the last annunciator in the series.
)LJXUH $ $&6 DQG /'0 6HULHV (,$ &RQQHFWLRQ
&38
RKP
WHUPLQDWLQJ
UHVLVWRU
5
7%
7%
² (,$ ,Q
² (,$ 2XW
(,$ 2XW
(,$ ,Q
² (,$ ,Q
² (,$ 2XW
(,$ 2XW
(,$ ,Q
