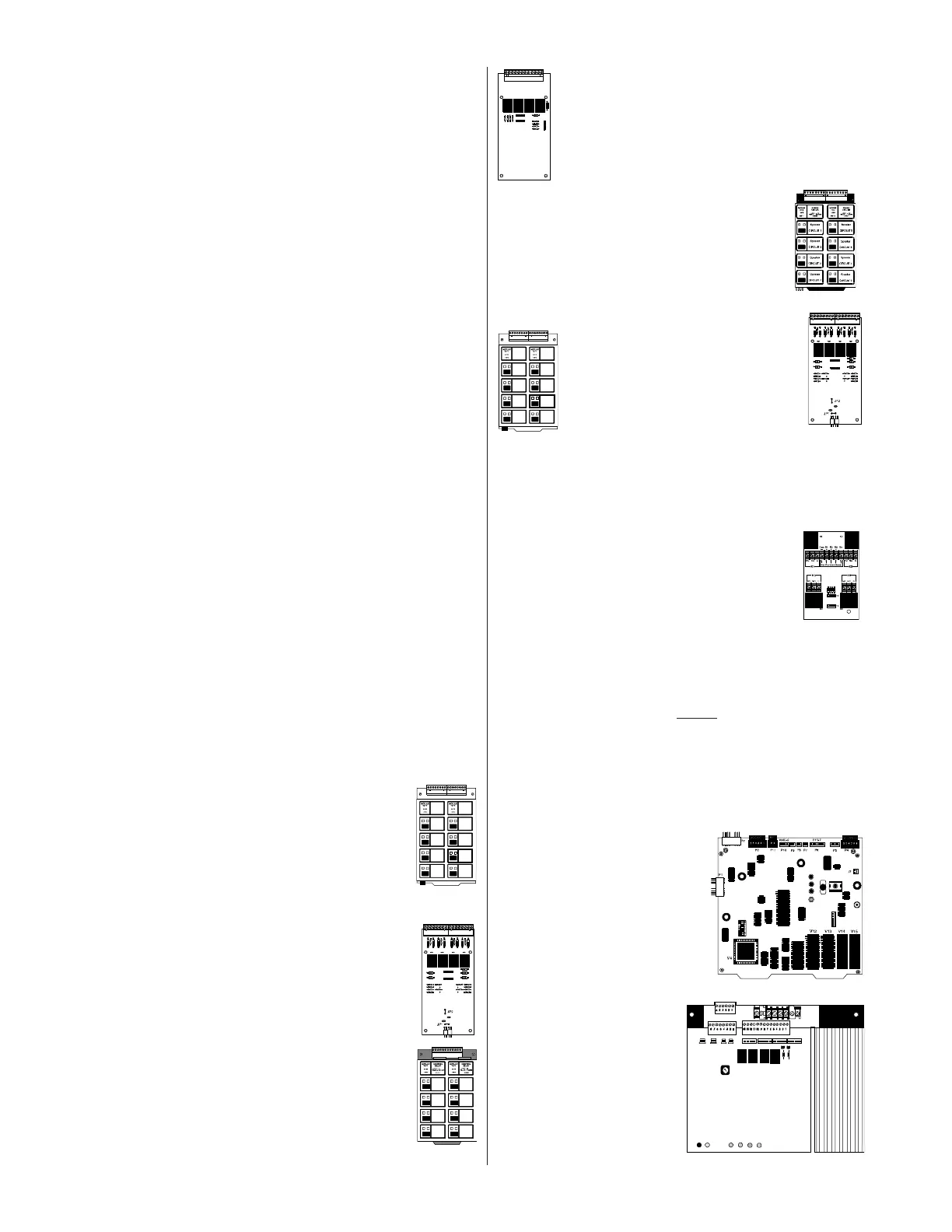

DN-5262 • 10/31/05 — Page 7 of 10
CRE-4: Control Relay Expander, expands
CRM-4 to provide a total of eight (8) Form-C
relay contacts. (Maximum of one per CRM-4.)
May also be connected to add four relays to
ICM-4, TCM-2, TCM-4, or VCM-4.
See CRE-4 data sheet DN-0461.
VCM-4: Voice Control Module
provides four Style Y or Style Z speaker
circuits, eight manual select switches
and indicators, slide-in labels, and plug-
in terminal blocks. Move jumper to
convert to telephone circuits with remote
ring signal and local call-in flash. May be
expanded to 8 circuits with VCE-4, ICE-
4, or CRE-4.
VCE-4: Voice Control Expander
adds four circuits to VCM-4.
Note: VCM-4 / VCE-4 combina-
tion must be 8 speaker or 8
phone circuits.
DCM-4: Dual Channel Module
provides four Style Y or Style Z speaker
circuits plus four channel A/B select relays. Not
expandable.
OTHER OPTION MODULES
ARM-4: Auxiliary Relay Module, four (4)
Form-C relays controlled by a relay
module (CRM-4 or CRE-4). N.O. contacts
rated 20 amps, N.C. contacts rated 10
amps at 125 VAC and 30 VDC. Maximum
of one for each CRM-4 or CRE-4. See
ARM-4 data sheet DN-0461.
VCC-1: Voice Control Center. Provides a variety of user
selectable tones on a single channel. Up to two
different tones or messages may be selected on a
single channel. Also provides optional digital voice
message capability and
on-site programmable voice
messages. Includes Audio Message Generator
(AMG-1) microphone, cables, dress panels, and
instructions.
VTCC-1: Voice/Telephone Control Center. Provides all
that the VCC-1 provides plus two-way Fire Fighter’s
Telephone (FFT-7) capability.
TCC-1: Telephone Control
Center. Provides a stand-
alone two-way Fire Fighter’s
telephone (FFT-7S). Includes
cables, dress panel and
instructions.
AMG-E: Audio Message
Generator (without micro-
phone). Order in addition
to VCC-1 or VTCC-1 if
two-channel system is
required.
FFT-7/FFT-7S: Fire Fighter’s
Telephone control with
master handset.
AA-30: Audio Amplifier - 30
watts. Switch-mode
power. Includes
amplifier and audio
BASIC EQUIPMENT PACKAGES
There are two packages available to configure an AFP-300
or 400 system. The standard model, BE-300 or BE-400, is
designed to mount in a NOTIFIER full-sized cabinet in the
CAB-3/-4 Series. The BE-300AA or BE-400AA is a minia-
ture package designed for a smaller cabinet, the CAB-
400AA. Order one of the following BE packages:
BE-400: Base Equipment includes the CPU (2 loops)
module (CPU-400), an 80-character display, program-
ming keypad, MPS-400 main power supply, installation
instructions, chassis and required hardware. Order
CAB-3/-4 Series cabinet separately.
BE-400AA: Base Equipment for use with CAB-400AA mini
cabinet. It is similar to BE-400 but for use in smaller
cabinet. Includes MPS-400RB and transformers.
Supports one output option module. Order CAB-400AA
cabinet separately.
BE-300: Base Equipment includes the CPU (1loop)
module (CPU-300), an 80-character display, program-
ming keypad, MPS-400 main power supply, installation
instructions, chassis and required hardware. Order
CAB-3/-4 Series cabinet separately.
BE-300AA: Base Equipment for use with CAB-400AA mini
cabinet. It is similar to BE-300 but for use in smaller
cabinet. Includes MPS-400RB and transformers.
Supports one output option module. Order CAB-400AA
cabinet separately.
CAB-3/4 Series: The AFP-300/400 utilizes CAB-3/-4
Series cabinets. See data sheets DN-3549 and DN-
6857.
SYSTEM MODULES
The AFP-300/400 includes the ability to communicate with
up to 8 conventional modules each with up to 8 circuits.
Any mix of notification, relay, speaker, or telephone may
be used.
Choose any combination of up to eight output
modules: ICM/ICE, CRM/CRE, DCM-4 or VCM/VCE.
ICM-4: Notification Appliance Circuit Module, provides four
Style Y or Style Z alarm Notification
Appliance Circuits. Maximum signaling
current is 3.0 amps per circuit or 6.0 amps
per module, subject to power supply
limitations (includes auxiliary power
harness, ELRs and slide-in labels).
Includes ON/OFF controls and ON/OFF
LEDs See ICM-4 data sheet DN-0010.
ICE-4: Notification Appliance Circuit Expander, expands
ICM-4 to provide a total of eight (8) Style Y
or Style Z alarm Notification Appliance
Circuits. Circuit ratings are same as ICM-4.
(Maximum of one per ICM-4.) May also be
used to add four Notification Appliance
Circuits to VCM-4.
See ICE-4 data sheet DN-0010.
CRM-4: Control Relay Module, four (4) Form-
C relay contacts, rated at 5.0 A, 120 VAC
or 28 VDC (resistive) per circuit. Includes
manual ON/OFF controls and LEDs.
See CRM-4 data sheet DN-0461.
0010icm4.wmf
029ice4.wmf
0461crm4.wmf
5262vcm4.wmf
029ice4.wmf
0010icm4.wmf
0461arm4.wmf
0669cre4.wmf
5262amge.wmf
3224a30.wmf
