Nova INFINITY User Manual

8. Remove all the jaw slides.
- By using your bare hand, slides the jaw slides out from the chuck.

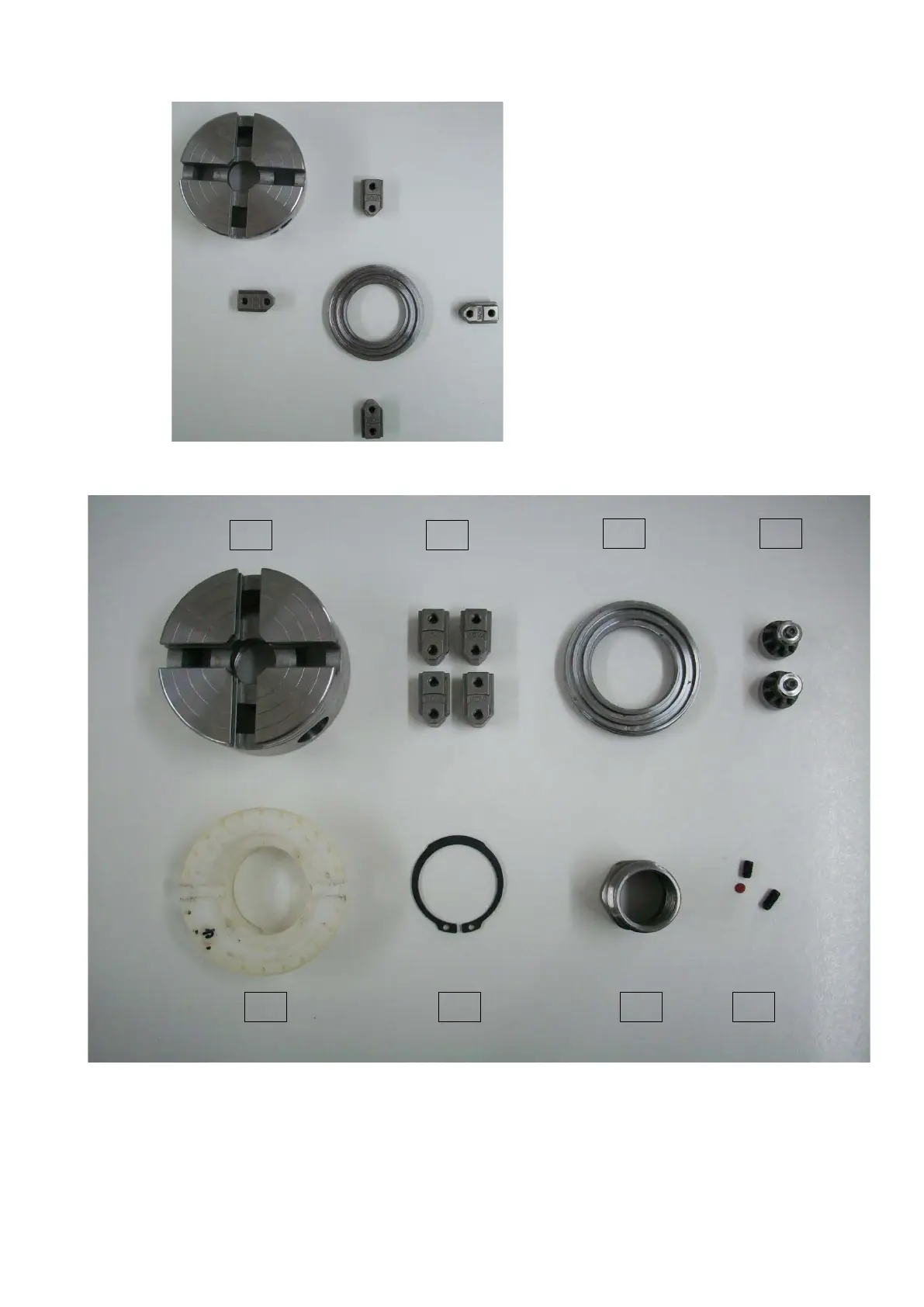

Complete disassembled parts list:
1. Your original NOVA chuck,
2. Your original NOVA jaw slides,these will be replaced by the NOVA Infinity Quick Change Jaw Slides
3. Your original NOVA scroll ring,
4. Your original NOVA pinion gears,
5. Your original NOVA backing plate,(shown here in white, normally comes in black)
6. Your original NOVA external circlip/snap ring,
7. Your original NOVA Insert, and
8. Your original NOVA two grub screws and fibre washer.
1
2
3
4
5
7
6
8
120-0913-009 12
