Assembly guides:
1. Before proceed to the installation steps, safety goggles and gloves should be worn accordingly.

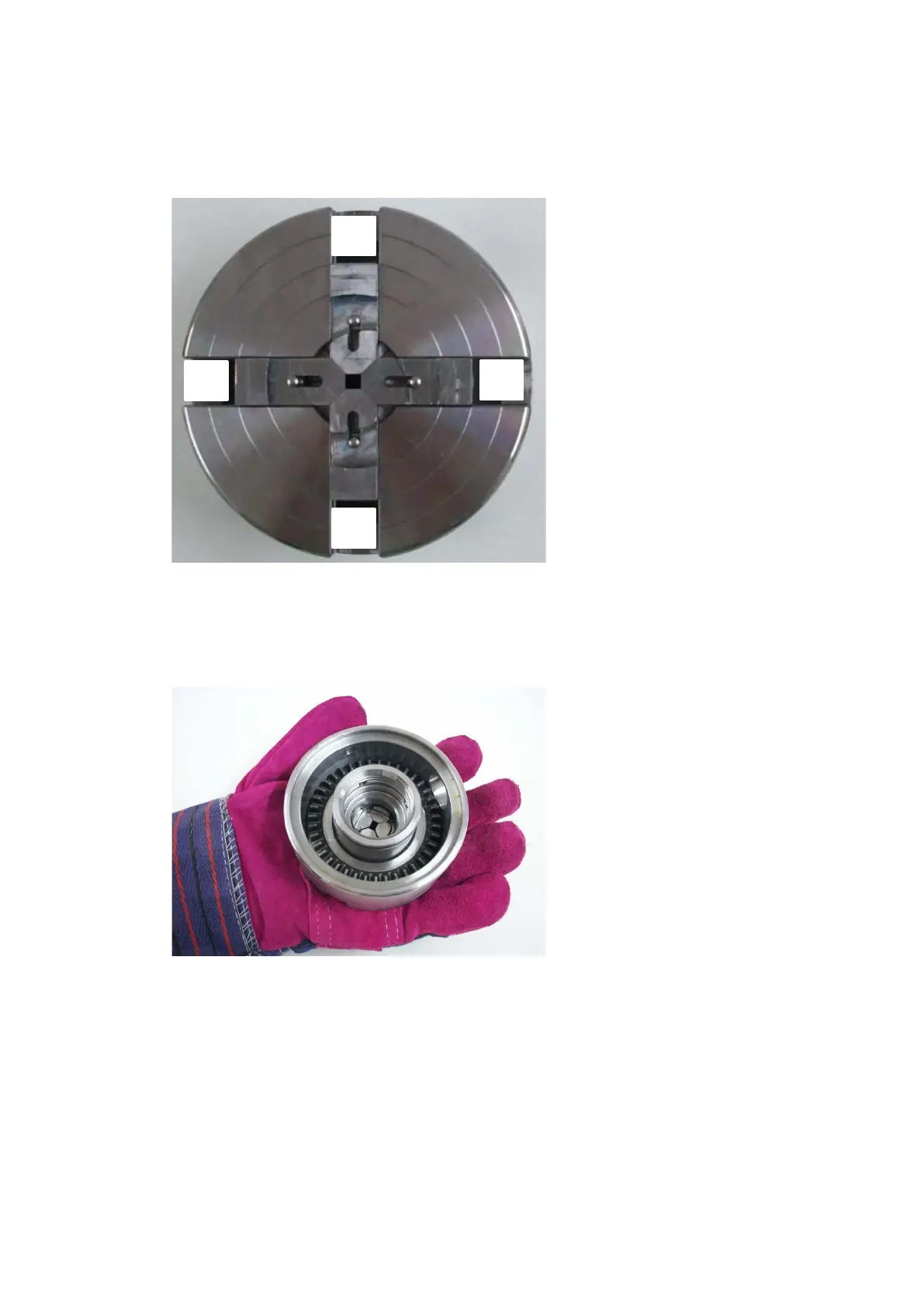

2. Installation of the jaw slides.
- Insert the jaw slides from number 1 to 4 in clockwise order until they met each other in the middle and
forming square shaped hold in the middle. Note: The jaw slide’s number can be found on the top side.
3. Installation of the scroll ring.
- Hold the installed jaw slides securely by your hand, flips the chuck upside down and showing the back
side of the chuck,
- Put the scroll ring into the chuck with the scroll gear facing downwards, and
- Rotates the scroll ring counter clock wise direction until all the jaw slides engaged into place.
120-0913-009 14
