Operation of the chuck
Main functionality of the chuck is to grab and secure the workpiece by expanding or
contracting its jaw slides. The jaw slides of the chuck can be operated by using the
provided t-handle.

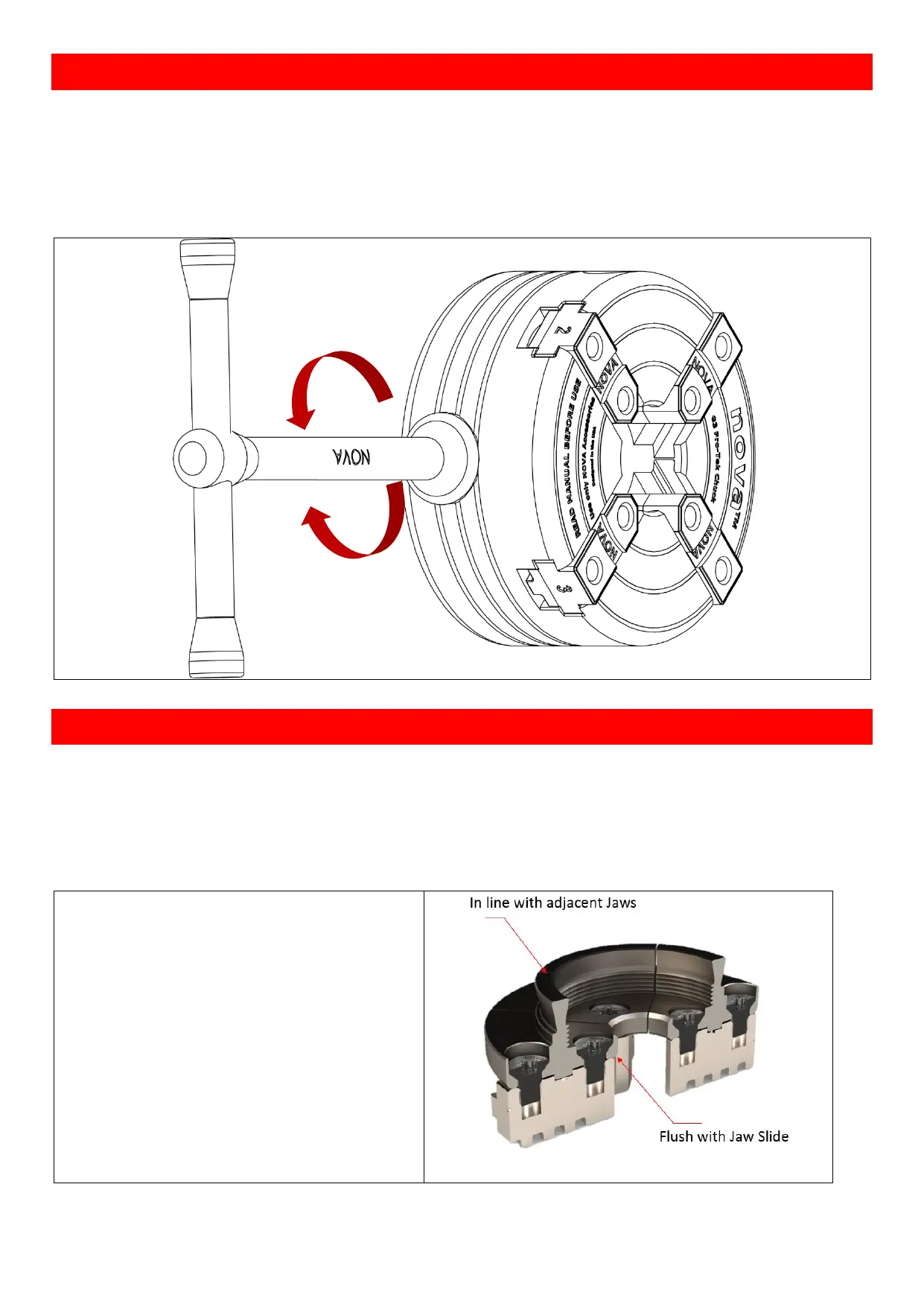

The image below illustrates how the chuck can be operated:
Mounting the jaws onto the chuck
The PRO-TEK G3 chuck is supplied with a set of PRO-TEK 50mm jaws (#6075). The jaws
must be securely fastened for the chuck to serve its function correctly. Mounting
procedure of the jaw applies to all NOVA accessory jaws.
Please follow the steps below when mounting the jaws onto the chuck:
1. Ensure there are no dusts or debris
on the bottom surface of the jaw
and top surface of the jaw slides.
2. Each jaw segment has a number
indented on the jaw edge to
indicate its correct mounting
position for minimal runout.
Loosely screw the jaw segment
onto the jaw slide with the number
Open
Close
