Mounting the chuck using the ASR Eurolock locking ring
The M33 version NOVA lathes and chucks have a special locking coupler to prevent
the chucks from coming loose and detaching from the lathe spindle. The ASR Eurolock
locking ring is exclusive to the M33 version lathes and chucks.
Note:
The locking ring is not compatible with lathes and chucks that are not the M33 ASR
Eurolock model (example shown is SUPERNOVA2 chuck).

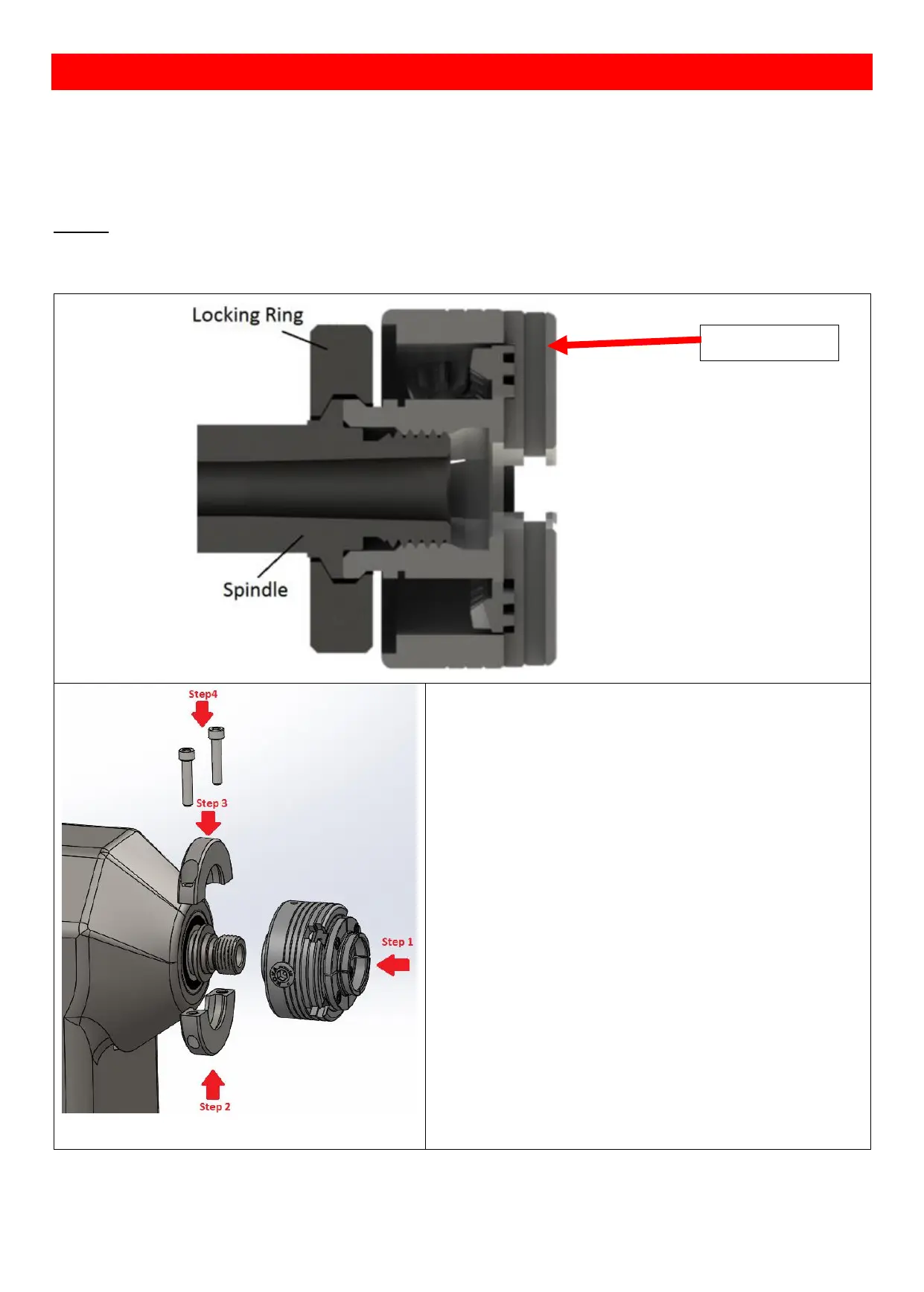

Below are the steps on how to attach the
ASR Eurolock locking ring:
Step 1:
Tighten the M33 ASR Eurolock chuck to the
spindle on the lathe, make sure the rings on
the spindle and chuck have been clamped.
Step 2:
Put the lower part of locking ring under the
clamped rings.
Step 3:
Put upper part of the locking ring to the
clamped rings as well.
Step 4:
Using the Hex key to tighten up two bolts on
the locking ring.
