Disassembling the PRO-TEK G3 chuck
Safety Note:
Remember to wear safety glasses when dealing with circlips as it poses a potential
risk of flying upwards when it slips off from the circlip pliers.
Remove all accessory jaw segments prior to the disassembly process.
The disassembly process can begin with jaw slides being at any position.
Step
No.
Description

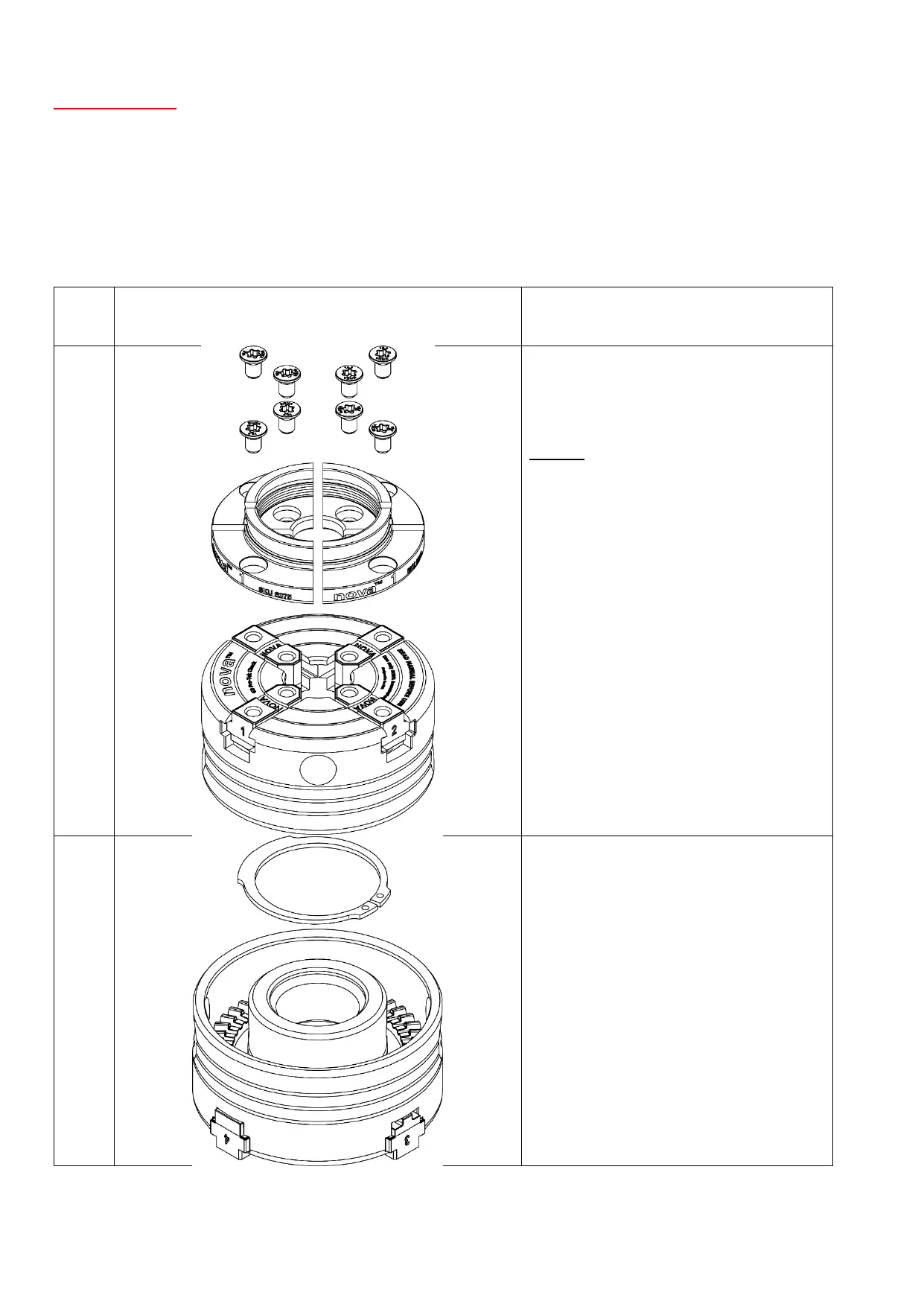

1.
Remove all the jaw segments
from the chuck.
Note:
Refer to “Removing Jaws from
the Chuck” section for
instructions on how to remove
the jaws from the chuck.
2.
Remove the circlip that is
holding the back plate onto
the chuck body using a pair of
external circlip pliers.
