matching the jaw slide. The
numbering should be 1,2,3,4 in a
clockwise direction.
Note:
The jaw segments should slightly
rattle by hand at this point.
3. Tightly close the jaw slides until all
side surfaces of the jaw segments
meet one another and no lights can
be seen between the jaw segments

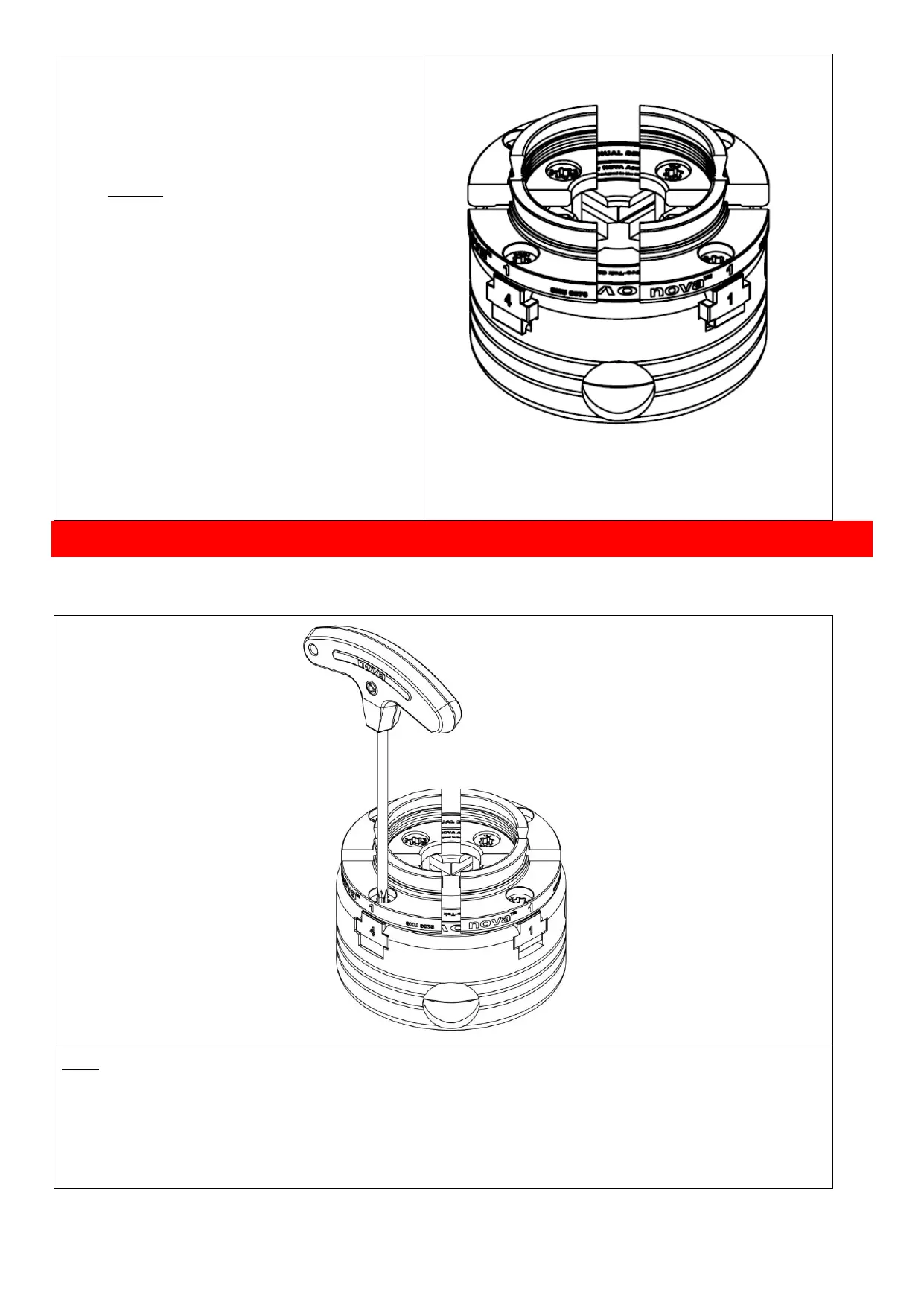

4. Fully tighten all the jaw segment
mounting screws by using NOVA
Star Head T-bar handle supplied.
Removing jaws from the chuck
Simply remove the jaw mounting screws by using the supplied NOVA Star head
wrench to dismount the jaw segments from its jaw slides.
Tip:
There may be occasions where the jaw segment seizes on the jaw slide which
poses difficulties when attempting to remove the jaw slides by hand. Use a soft
hammer (mallet) to gently tap either side of the jaw segment to dislodge it out
from the jaw slide.
