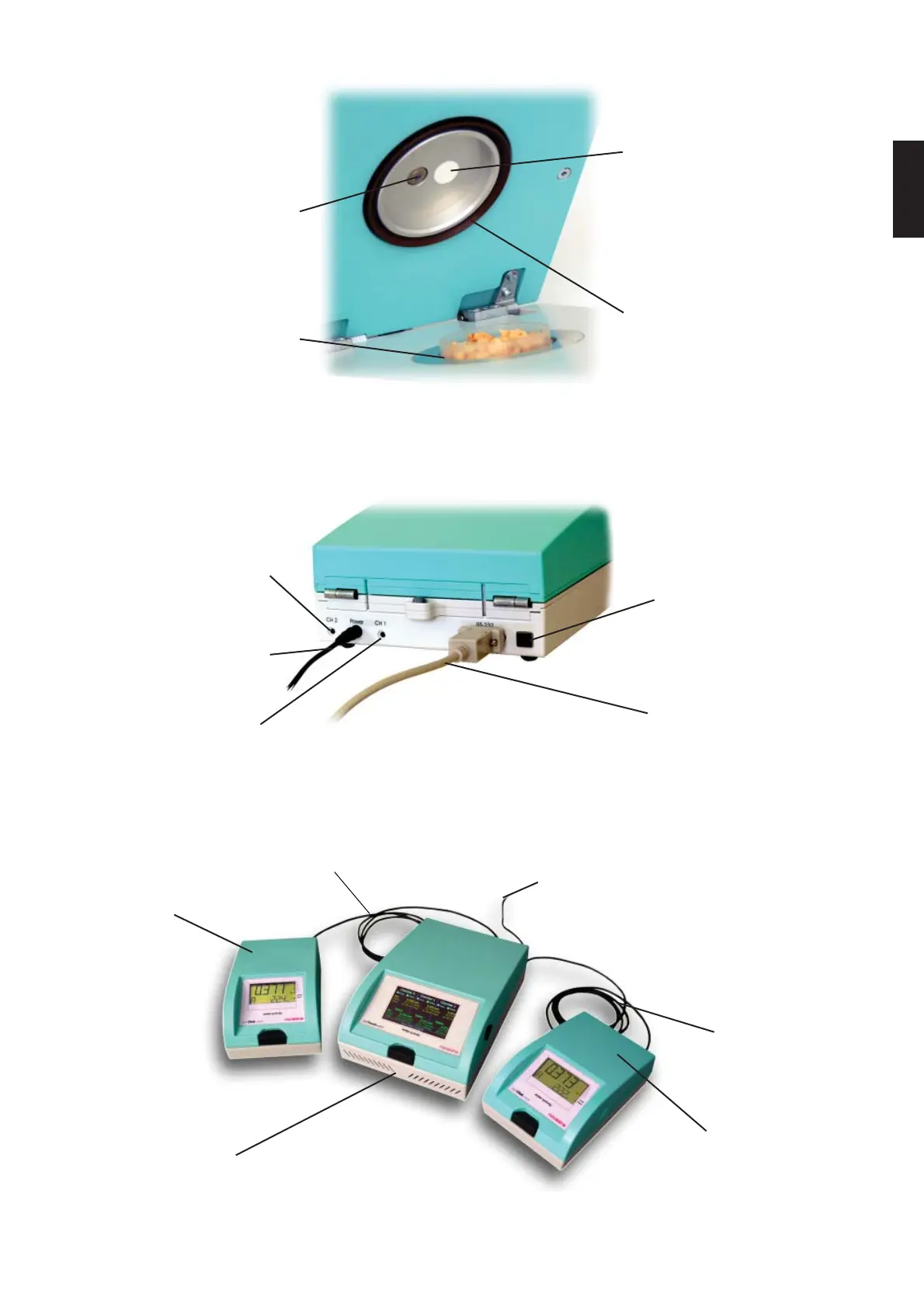

The inner part of the measurement chamber is equipped with all the characteristic sensors
White pre-fi lter in front
of the electrolytic
measurement cell (sensor)
Infrared temperature sensor
for sample surface temp.
measurement
Sealing to eliminate air ex-
change with environment
Metal indentation for fi lled
sample cup insertion
The connections (external chambers, RS232 etc.) are located on the back-side of the instrument
CH1 socket for
LabClick-aw no.1
CH2 socket for
LabClick-aw no.2
Power supply connector
USB connector for PC and Nova-
log MC communication
RS-232 interface for
connection to PC
A maximum of two additional chambers (LabClick-aw) can be connected to the LabTouch-aw advanced
LabClick-aw
no. 2
LabClick-aw
no. 1
LabTouch-aw
ADVANCED (Master)
Power cable
to 90...260V AC power supply
Chamber 2
cable
Chamber 1
cable
