Chapter2 Connection
Manual of NVEC400
- 9 -

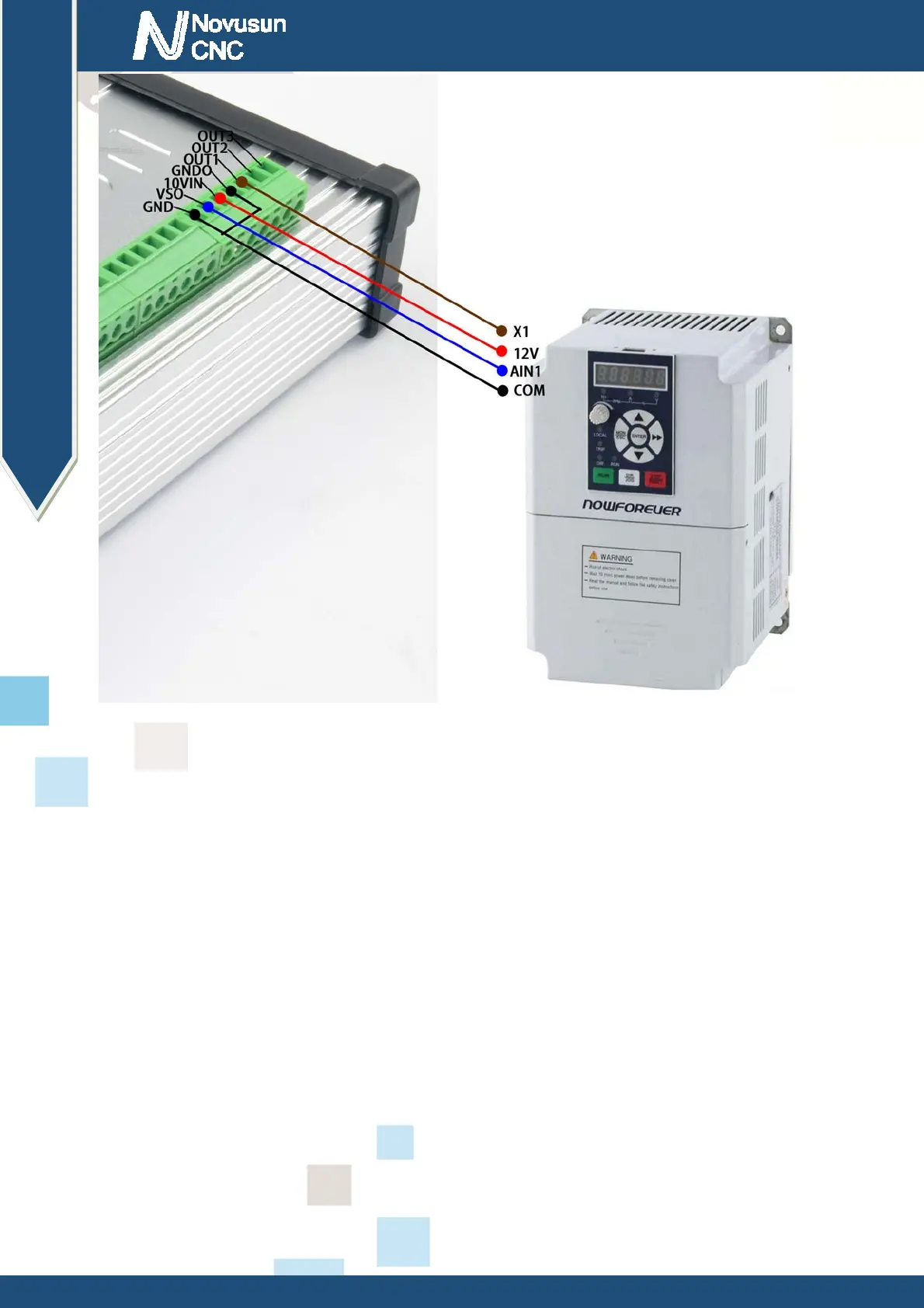

Figure2-4. spindle control output and inverter connection
VSO real output voltage=10V*s spindle setting speed/max spindle speed.Forexample,if max
spindle speed is 24000,current spindle speed is S=18000,so the VSO output
voltage=10*18000/24000=7.5V.
Max. spindle speed setting ports as showed sa Figure 2-4,open it from Pulley from Menu
config. The current spindle speed can be set by S directive or Mach 3 spindle setting speed module.
