Chapter2 Connection

Manual of NVEC400

- 10 -

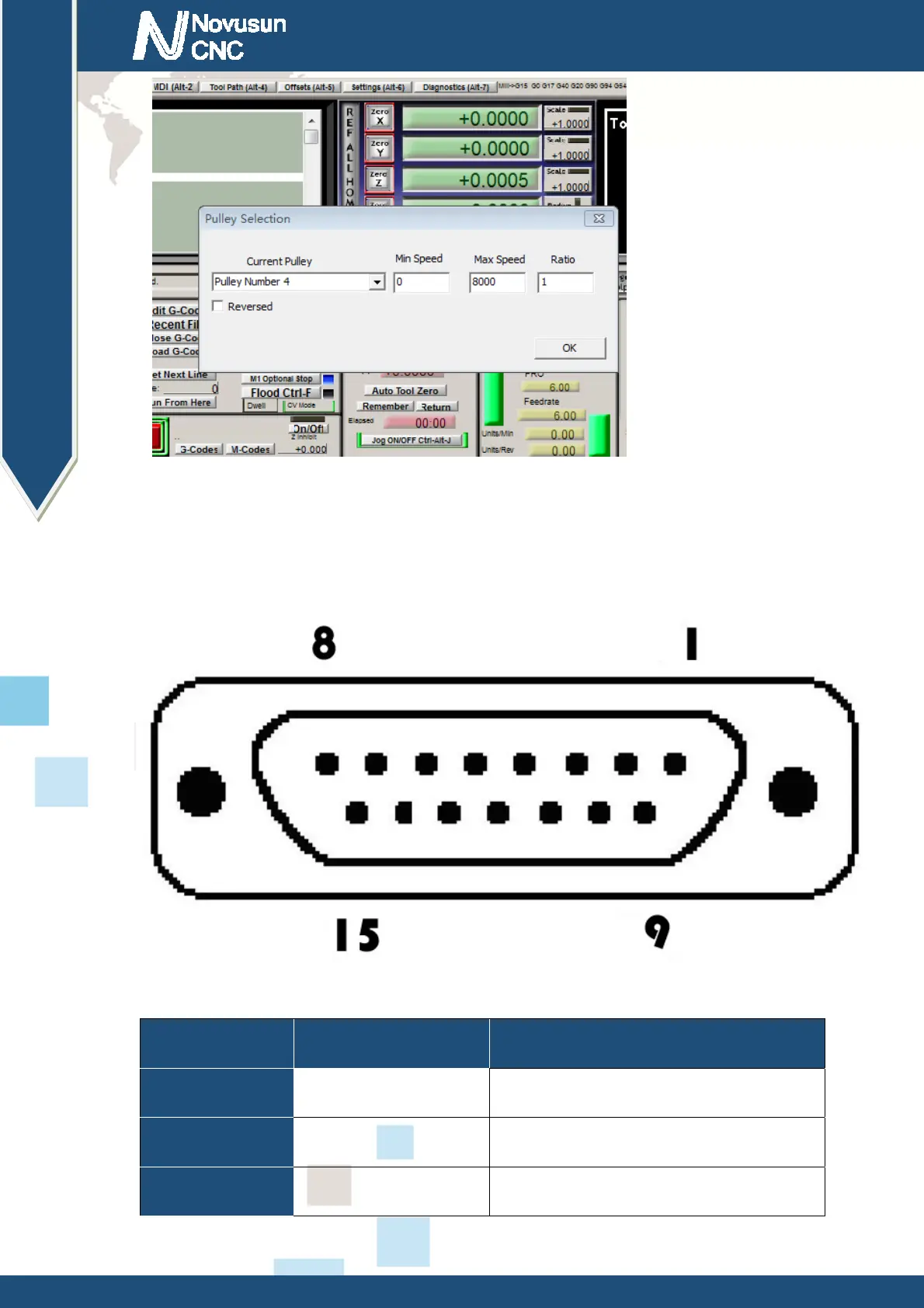

Figure2-5. Max spindle speed setting position

2.2.4 General output interface

As the Figure 2-2 showed. the marked No. 4 is General output interface. This is a DB15

port. The pin order see as figure 2-6. definition see as table 2-1.

Figure2-6. MPG Port Pin order

No. Mark Definition

1 OUT4 Output Port4

2 OUT6 Output Port6

3 OUT8 Output Port8
