9) Speed testing port for user to inspect the real speed.
10) Internal over-voltage, over-current and stalling inspection
11) Input signal TTL compatible
cnc.prom.ua
1.3 Product appearance and dimension
NVBDH+ product appearance pls see picture 1-1,detached driver pls see picture
1-2,NVBDH with motor see picture 1-3.
NVBDL+ product appearance pls see picture 1-4, detached driver pls see picture
1-5,NVBDH with motor see picture 1-6.

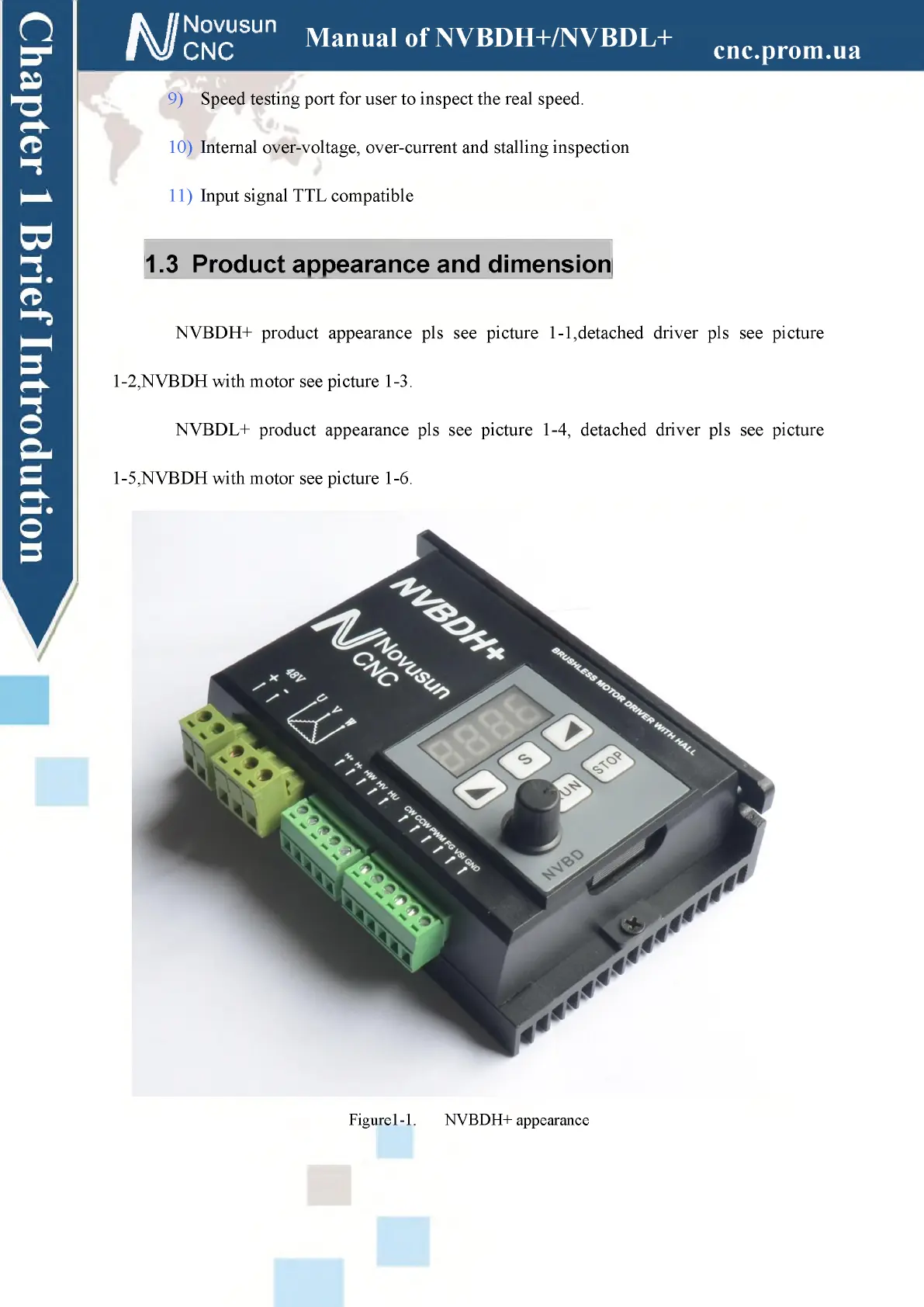

Figure1-1 NVBDH+ appearance
