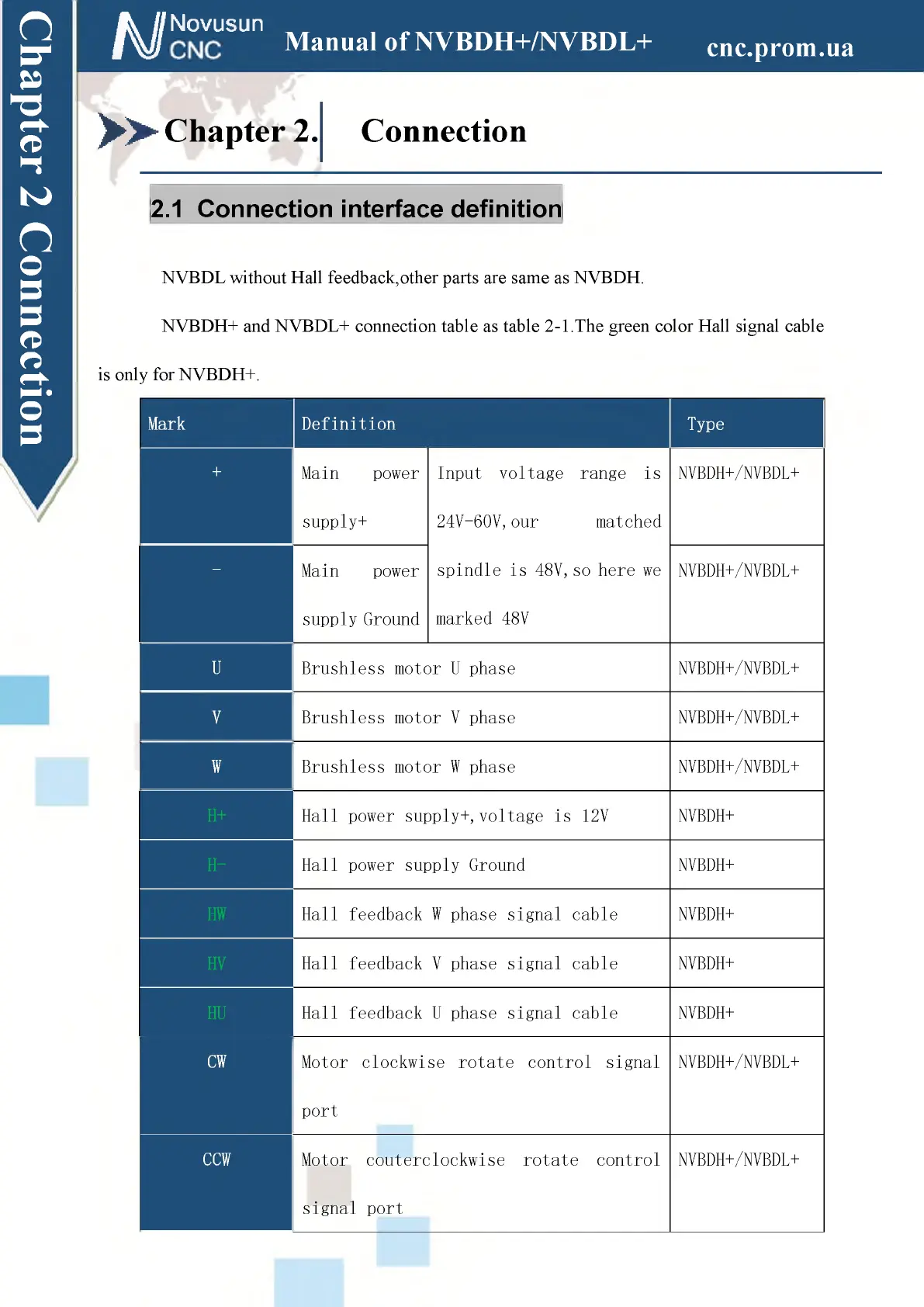

2.1 Connection interface definition
NVBDL without Hall feedback,other parts are same as NVBDH.
NVBDH+ and NVBDL+ connection table as table 2-1.The green color Hall signal cable
is only for NVBDH+.
Mark Definition
Main power
supply+
Main power
supply Ground
Input voltage range is
24V-60V,our matched
spindle is 48V,so here we
marked 48V
Brushless motor U phase
Brushless motor V phase
Brushless motor W phase
Hall power supply+,voltage is 12V
Hall power supply Ground
Hall feedback W phase signal cable
Hall feedback V phase signal cable
Hall feedback U phase signal cable
Motor clockwise rotate control signal
port
Motor couterclockwise rotate control
signal port
NVBDH+/NVBDL+
NVBDH+/NVBDL+
NVBDH+/NVBDL+
NVBDH+/NVBDL+
NVBDH+/NVBDL+
NVBDH+
NVBDH+
NVBDH+
NVBDH+
NVBDH+
NVBDH+/NVBDL+
NVBDH+/NVBDL+
