Novusun CNC NVBDH+ - Page 7

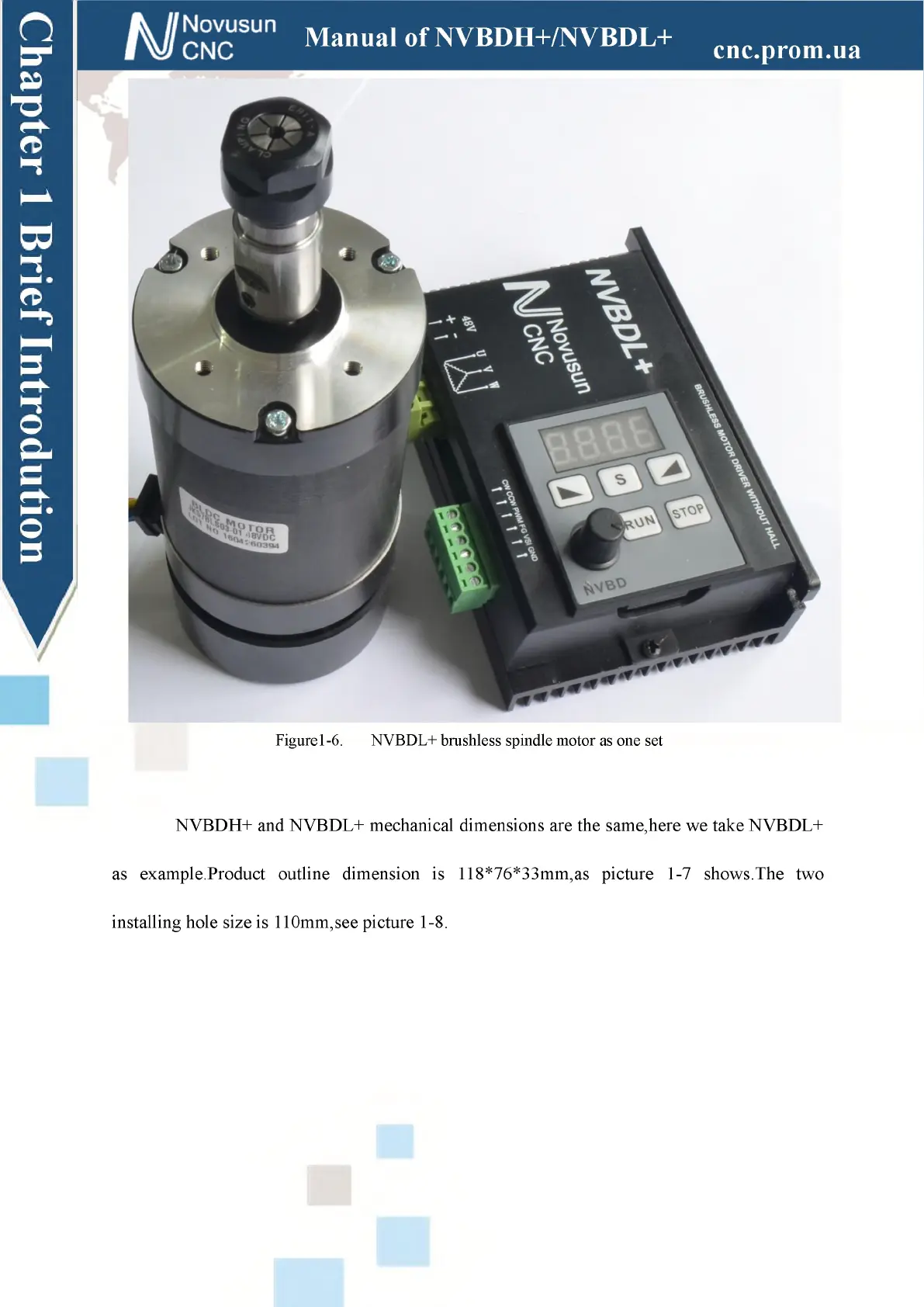

Figure1-6. NVBDL+ brushless spindle motor as one set
NVBDH+ and NVBDL+ mechanical dimensions are the same,here we take NVBDL+
as example.Product outline dimension is 118*76*33mm,as picture 1-7 shows.The two
installing hole size is 110mm,see picture 1-8.
