Noztek Pelletizer - Page 12

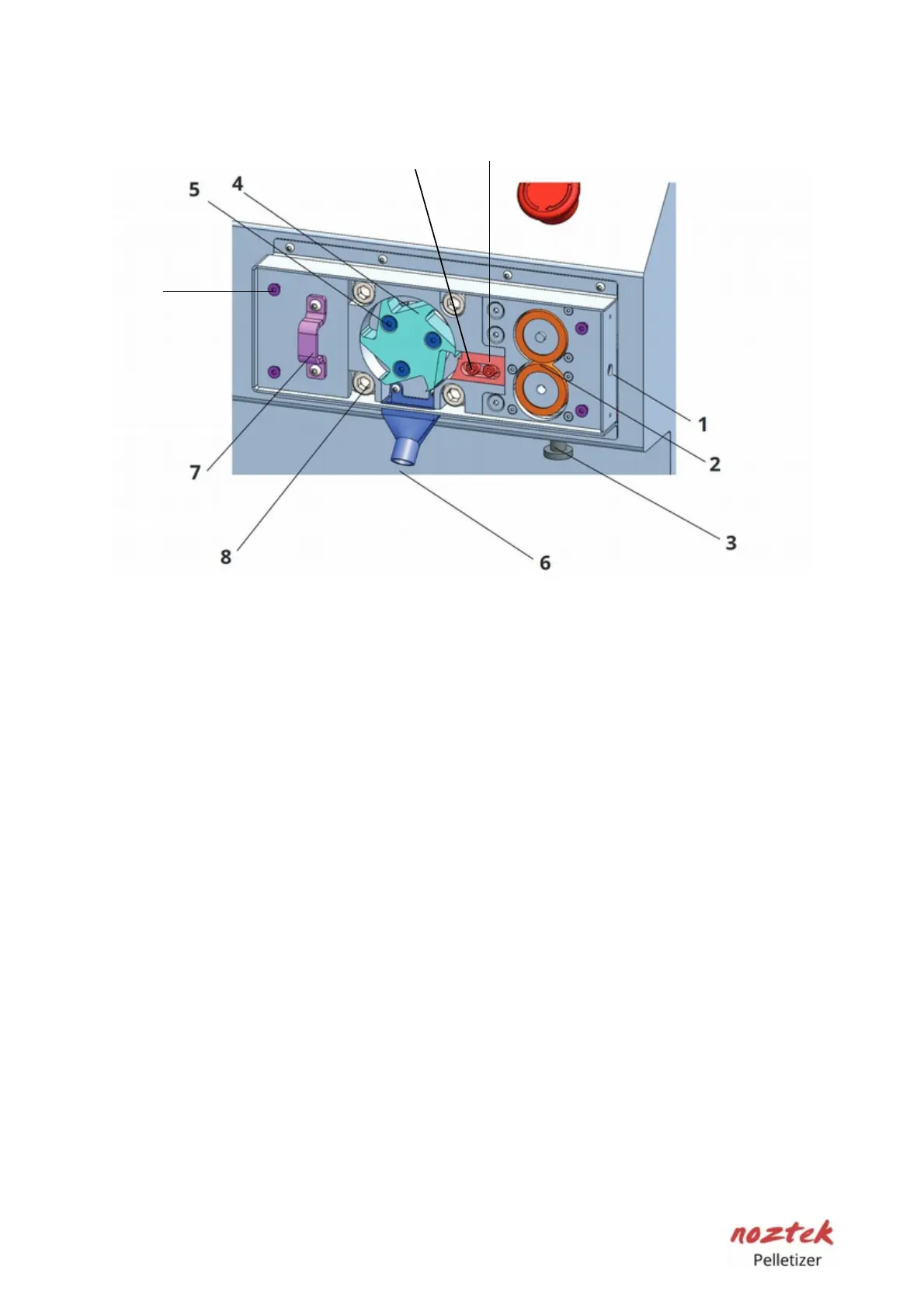

Pelletizer operational layout overview:
1. Filament feed inlet.
2. Roller wheels.
3. Roller wheel adjustment lever.
4. Cutting blade (interchangeable for 24 edge blade).
5. Cutting blade bolts (x3).
6. Pellet Funnel.
7. Screen handle.
8. Main block motor bolts (x4).
9. Screen removal bolts (x4).
10. Static cutting blade.
11. Static cutting blade bolts. (X2).
9
10
11
9
