Noztek Pelletizer - Loading Filament

Loading Filament

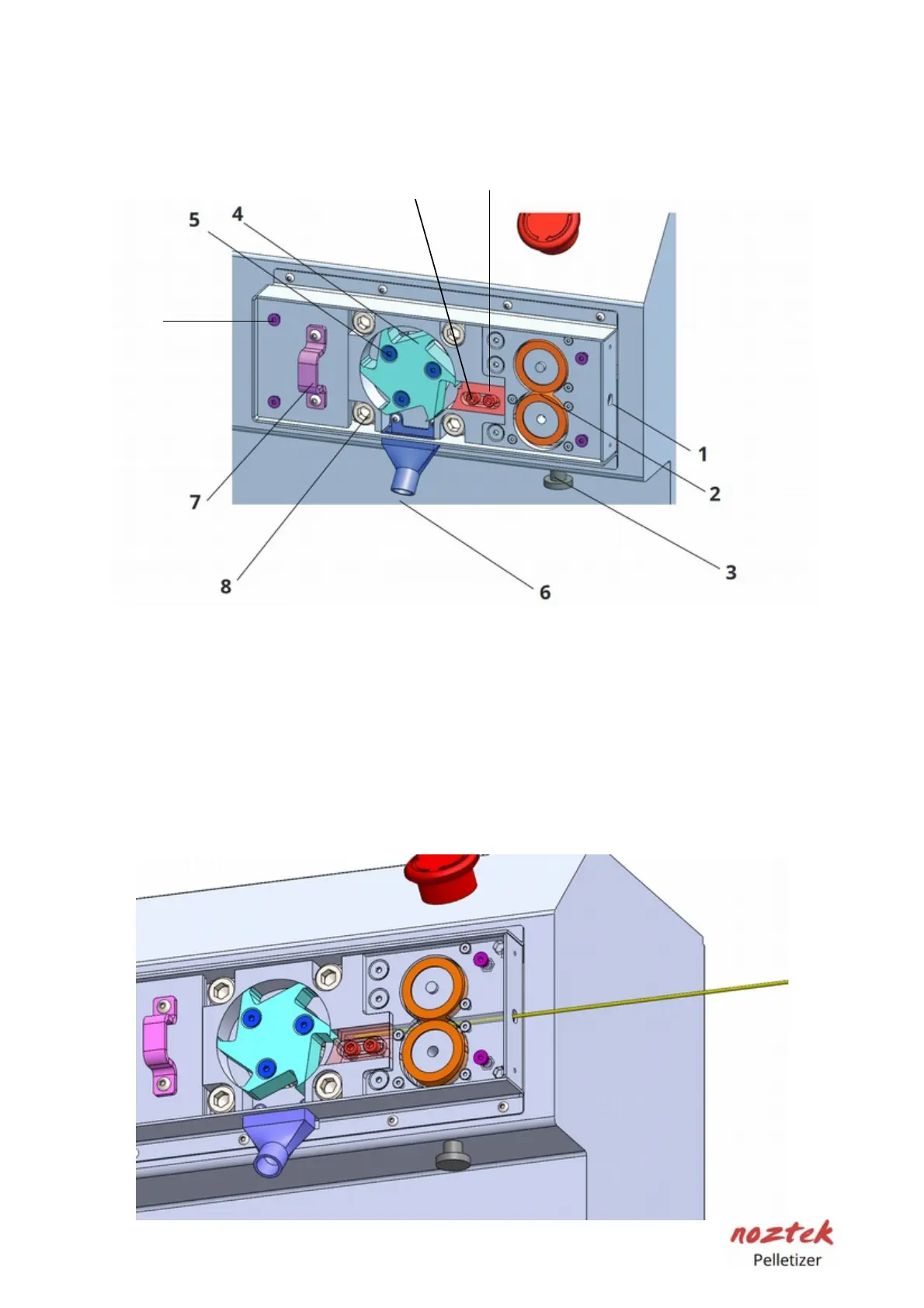

Loading Filament steps
1. Pull and hold the roller wheel adjustment lever downwards (3).
2. Feed filament through the filament inlet opening (1).
3. Push the filament 60mm towards the static cutting blade area (10).
4. Release the roller wheel adjustment lever (3).
5. Please refer to the image below for a visual representation of the correct
setup.
9
10
11
16
