NSD Varicam VS-5EX-1 User Manual

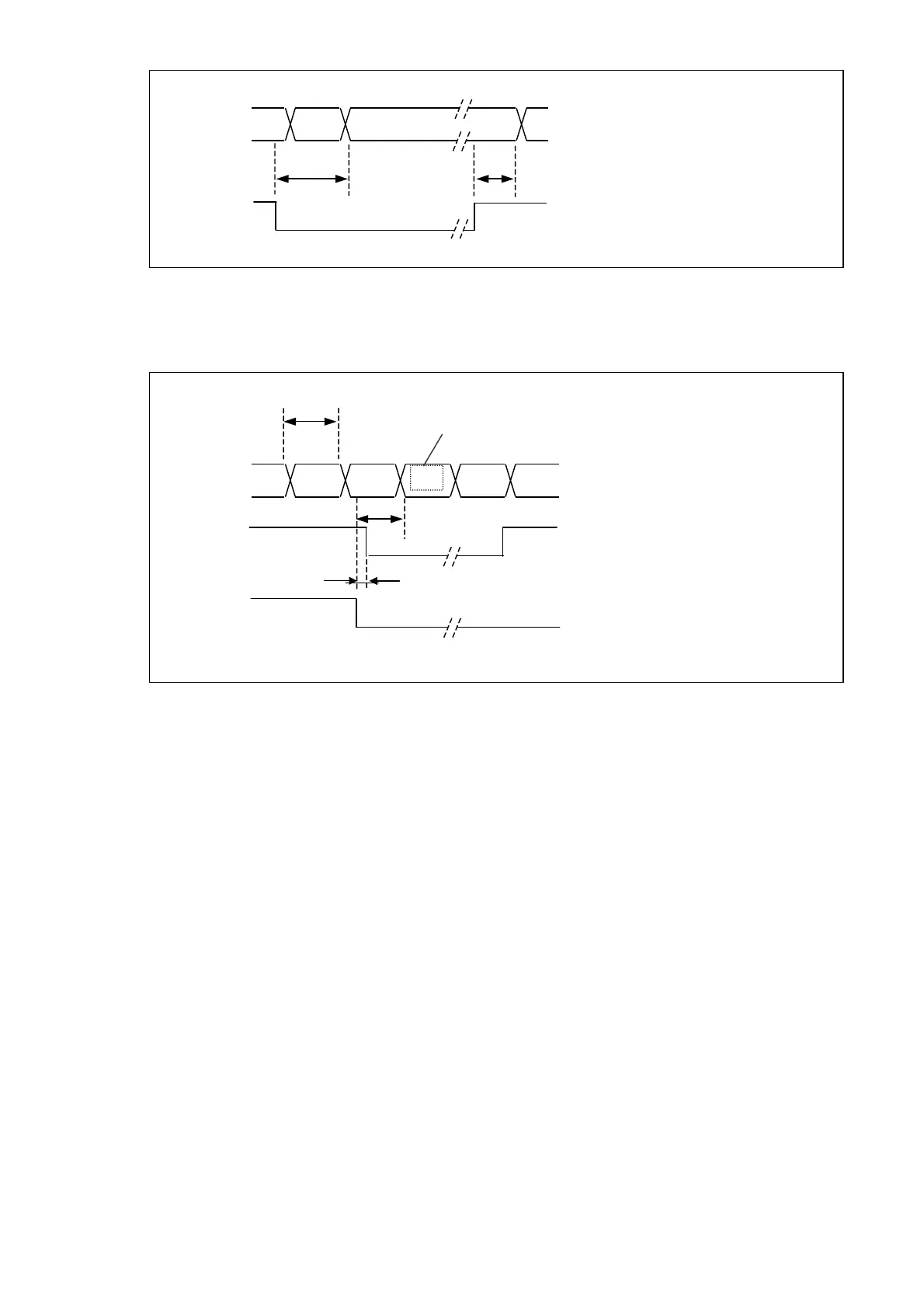

(3) Current Position Output When HOLD Input is Operative
(4) Current Position Output When “External Origin Set” Input Occurs
Current position
value output
HOLD input
Data HOLD
t1
t2
t1: Time period from the point when the HOLD
input occurs, until the point when a “data
hold” status is established. (ms) t1
≦
10
t2: Time period from the point when the HOLD
input is canceled, until the point when data
sampling is resumed. (ms) t2
≦
ts+10
Switch output
ts
t4
ts: Current position output sampling time. (ms)
0.352/17.6/35.2
t3: Time period from the point when the “External
Origin Set” input occurs, until the point when
the current position value switches to “000”.
(ms)
t3
≦
ts+5
t4: Time period from the point when the “External
Origin Set” input occurs, until the point when
the current position “000” switch output
occurs. (ms)
t4
≦
5
000
t3
External origin set input
●B-13●
Current position
value output
Origin point display
