Caprice │ Installation and Operation Instructions - Direct Vent C 85-340
Direct Vent Termination Kit
When installed as a Direct Vent boiler the combustion air-inlet must also be piped directly to the outdoors using
the methods described in this section and in accordance with the CSA B139 (Canada) or NFPA 31 (USA) and
local code requirements.
Venting Options - Due to potential moisture loading (build-up) along the exterior wall,
sidewall venting may not be the preferred venting option.
The majority of the balance flue components required for Direct Vent installations are included with the
Burner Kit. Remaining components must be ordered separately. Refer to the components listed in Table
7-2 and illustrated in Figure 7-2.

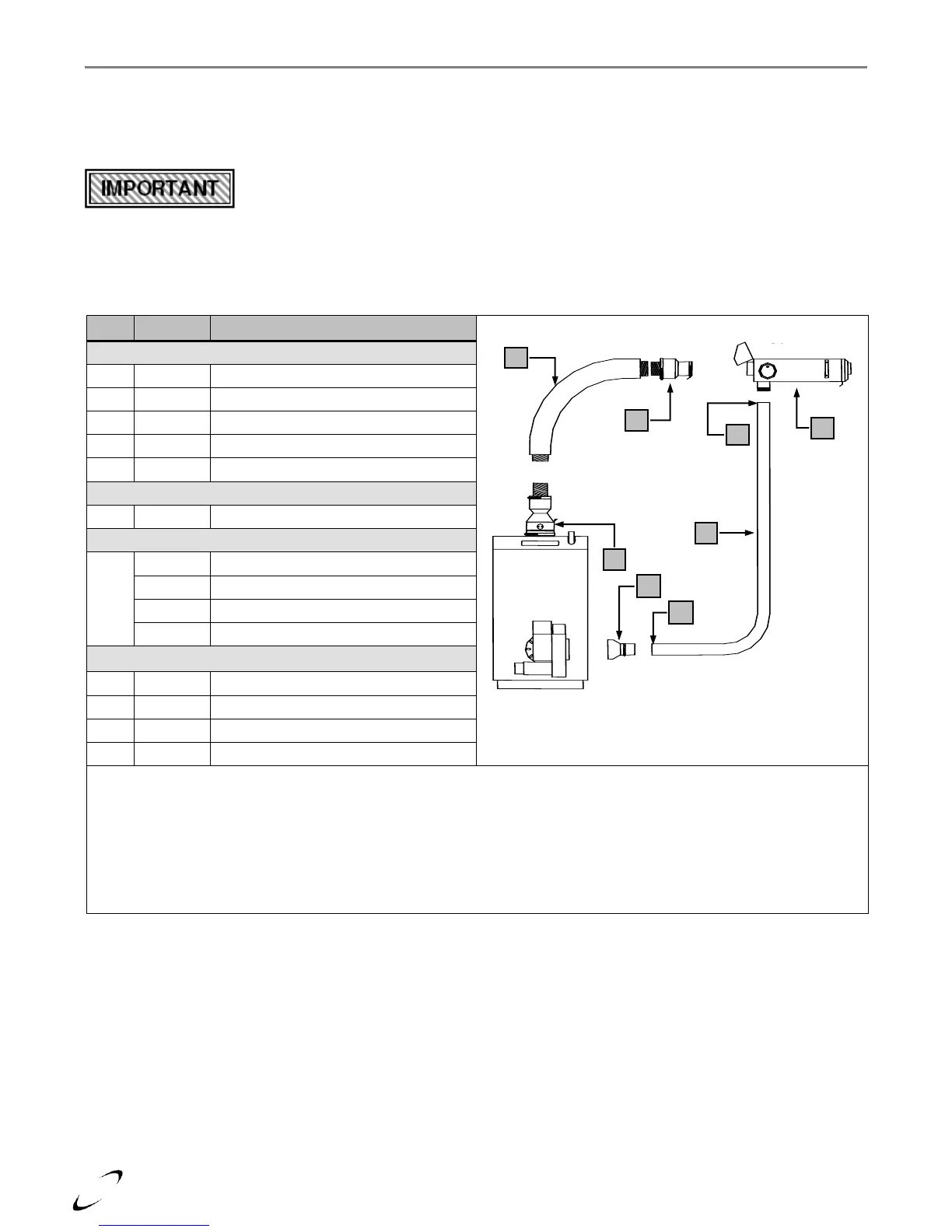

Table 7-2 Direct Vent Components
Included with Direct Vent Burner Kit
3” Insulated Flex to Pipe Adapter
4” to 3” Increaser (Beckett Only)
1
Extended Direct Vent Terminal, 20”
Silicone, High Temp., 302 (83ml)
Notes:
1
Only applicable for boiler packages using Becker burners.
2
Required for Direct Vent installation but not included with boiler package; therefore, must be ordered separately.
3
Optional components available from NTI. Must be ordered separately.
4
3” Hose Clamps (x 2). Dashed lines indicate that the connection location changes based on the burner kit (i.e.Riello -
clamps connect 3” Flex to Vent Terminal and Burner; Beckett - clamps connect 3” Flex to the Vent Terminal and
Increaser (Item 4).
Components required for Direct Vent installation:
Items 1-5 included with the boiler’s DV Burner Kit.
Items 6-7 must be ordered separately.
