NTI ENVIROMUX Series Wiring Instruction

2

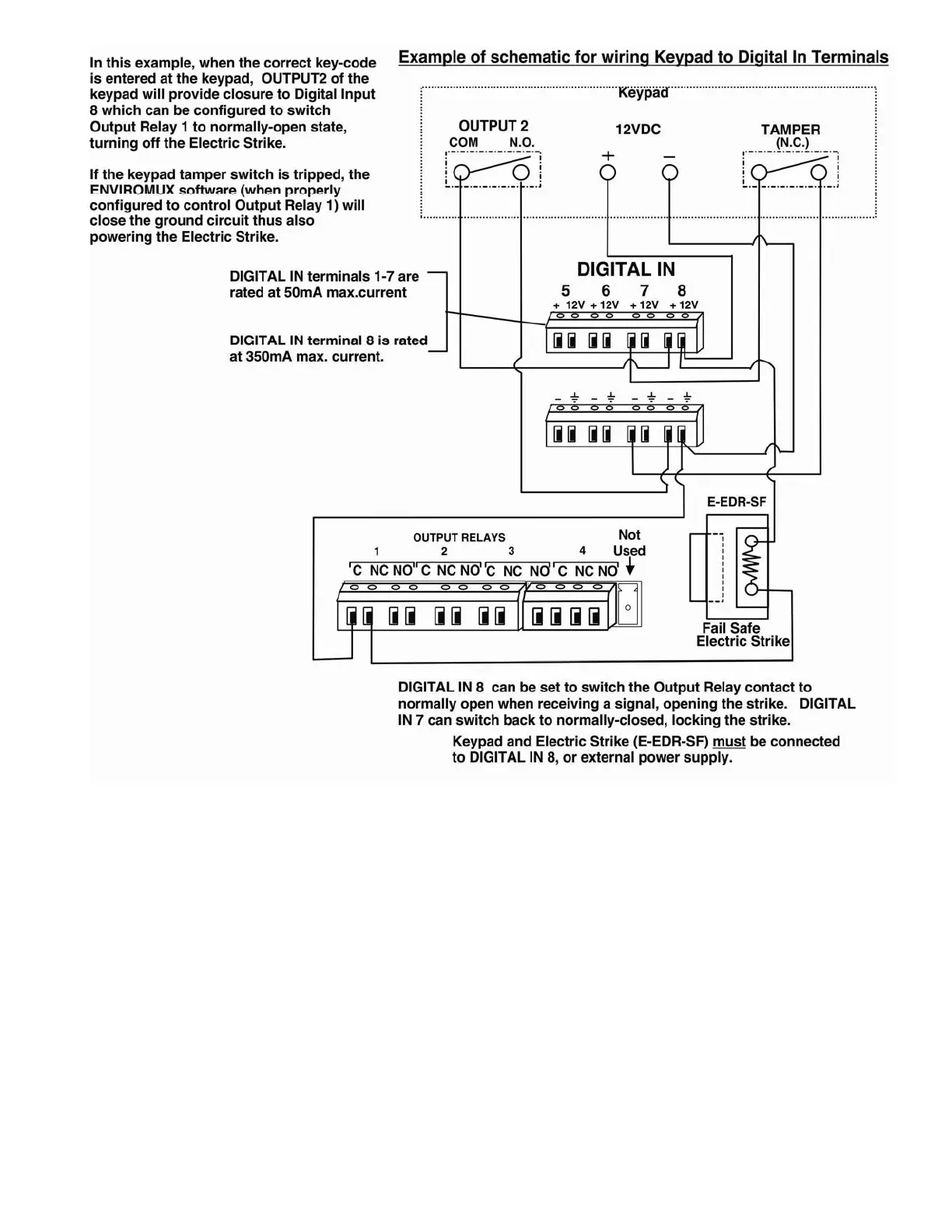

In the wiring example above, using an Output Relay and with the ENVIROMUX properly configured, tampering with the keypad would
automatically lock the Strike and only the administrator would be able to unlock it by either acknowledging the alert or by manually
changing the Output Relay state in the web interface. The only other way to power OFF the strike would be to power OFF the
ENVIROMUX and wait for the backup battery to fully discharge.

NTI ENVIROMUX Series Specifications

General

Product Type	Environmental Monitoring System
Temperature Range	-40°C to 85°C
Power Supply	12V DC or 24V AC
Network Interface	Ethernet 10/100 Mbps
Alarm Notifications	Email, SNMP
Sensor Types Supported	Temperature, Humidity, Water, Airflow
Power	12V DC or 24V AC
Operating Temperature	-40°C to 85°C
Mounting	Wall or Rack Mount
Communication Interfaces	Ethernet
Data Logging	Yes
Compliance	CE, RoHS
