NTI Trinity Lx 150 - Page 57

Lx Series Installation and Operation Instructions │Trinity Lx
57
Commercial Models (Lx500-800)

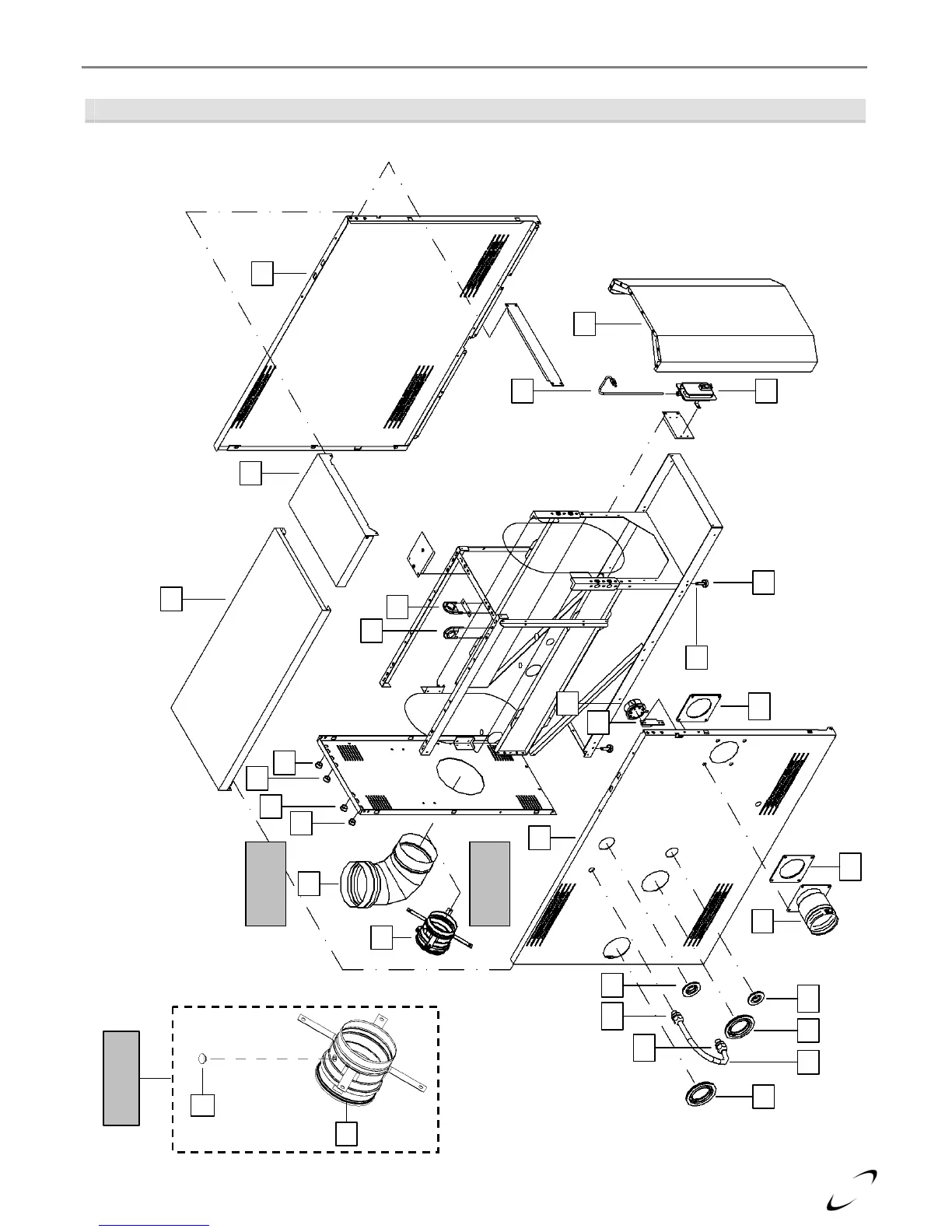

Figure 13-6 Lx500-800 Model
Cabinet, Vent and Air-Intake Parts
76
77
73
72
95
95
95
95
78
101
101
42
98
49
48
96
96
47
46
47
74
100
99
104
75
104
97
41
41
Lx700-800
(Elbow)
Lx500-600
(c/w Tabs)
44
Lx500-600
Flue Adapter
41
