Trinity Lx │Installation and Operation Instructions Lx Series
60

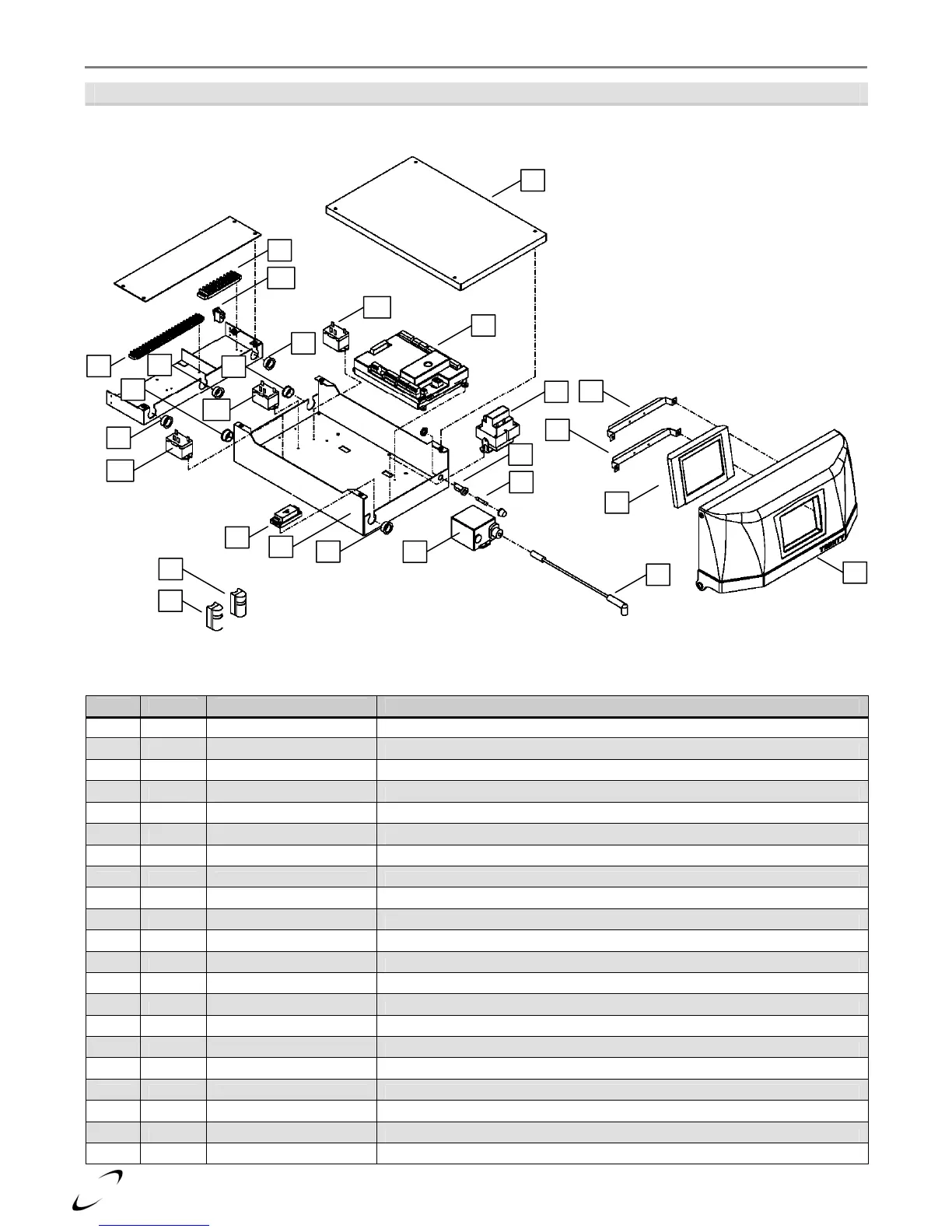

Figure 13-9 Lx500-800 Model
Electrical Housing, Controller, and Display Module
Table 13-1 Parts List: Lx150-800 Models
Item Part # Models Description
1 82657 150 Premix burner 135.8 (Lx100-150; not Lx150E)
1 82658 150E, 200 Premix burner, 200.6 (Lx150E, Lx200)
1 84207 300 Premix burner, (Lx300)
1 83173 400 Premix burner, 327 (Lx400)
1 84382 500 Premix burner (Lx500)
1 84383 600 Premix burner (Lx600)
1 84134 700, 800 Premix burner (Lx700-800)
2 82761 150–500 Premix Burner Gasket (Lx150-500)
2 84133 600–800 Premix Burner Gasket (Lx600-800)
3 82771 150, 150E, 200 Extended Air Tube (Lx100-200)
3 83195 300–500 Extended Air Tube (Lx300-500)
3 84132 600, 700, 800 Conical Air-Gas Inlet Pipe / Stabilor (Lx600-800)
4 82766 150–500 Blower Gasket (Lx150-500)
4 84026 600–800 Blower Gasket (Lx600-800)
5 82052 150 EBM Blower RG130 (Lx100-150, not Lx150E)
5 82661 150E, 200, 300 EBM Blower RG148/1200-3633 (Lx150E-300)
5 82994 400 EBM Blower RG148/Enhanced (Lx400)
5 84322 500 EBM Blower NRG137 (Lx500)
5 84006 600–800 EBM Blower G1G170 (Lx600-800)
6 82054-2 150, 150E, 200, 300 CVI Venturi Gasket (Lx150-300)
6 83106 400 O-ring, Venturi to Blower (Lx400)
