Trinity Lx │Installation and Operation Instructions Lx Series
22
Sidewall Termination - Due to potential moisture loading (build-up) along the exterior
wall, sidewall venting may not be the preferred venting option. Refer to Figures 4-8 and
4-10 for roof top venting options.

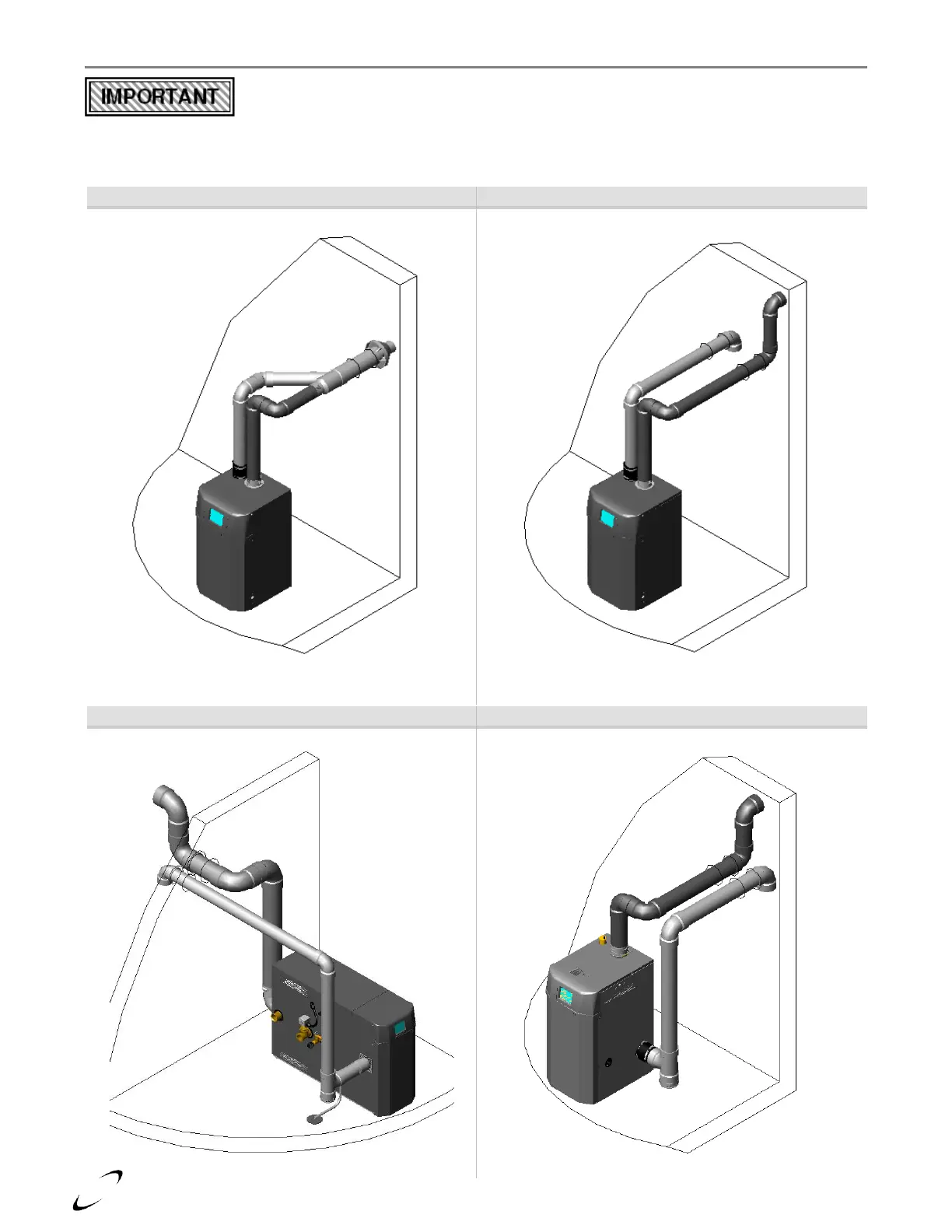

Sidewall Termination Examples – Direct Vent Installation
Figure 4-6(a) Concentric Sidewall Termination
Figure 4-6(b) Two-Pipe Sidewall Termination
(Lx200 Illustrated)
(Lx200 Illustrated)
Figure 4-7(a) Two-Pipe Sidewall Termination
Figure 4-7(b) Two-Pipe Sidewall Termination
(Lx800 Illustrated)
(Lx400 Illustrated)
