Lx Series Installation and Operation Instructions │Trinity Lx
63

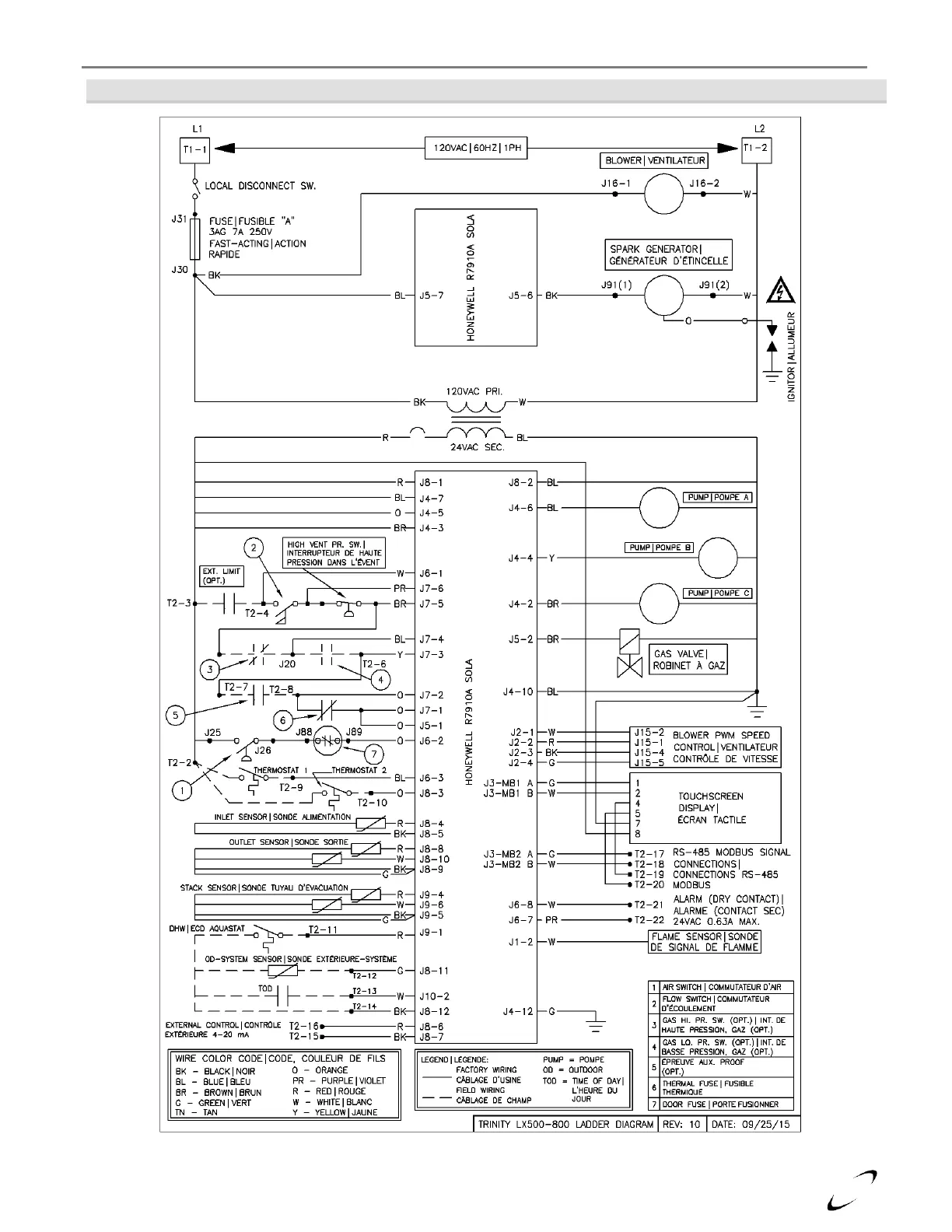

Figure 13-2(b) Ladder/Logic Diagram (Lx500-800)
