Tft Series Installation and Operation Instructions │Trinity
41



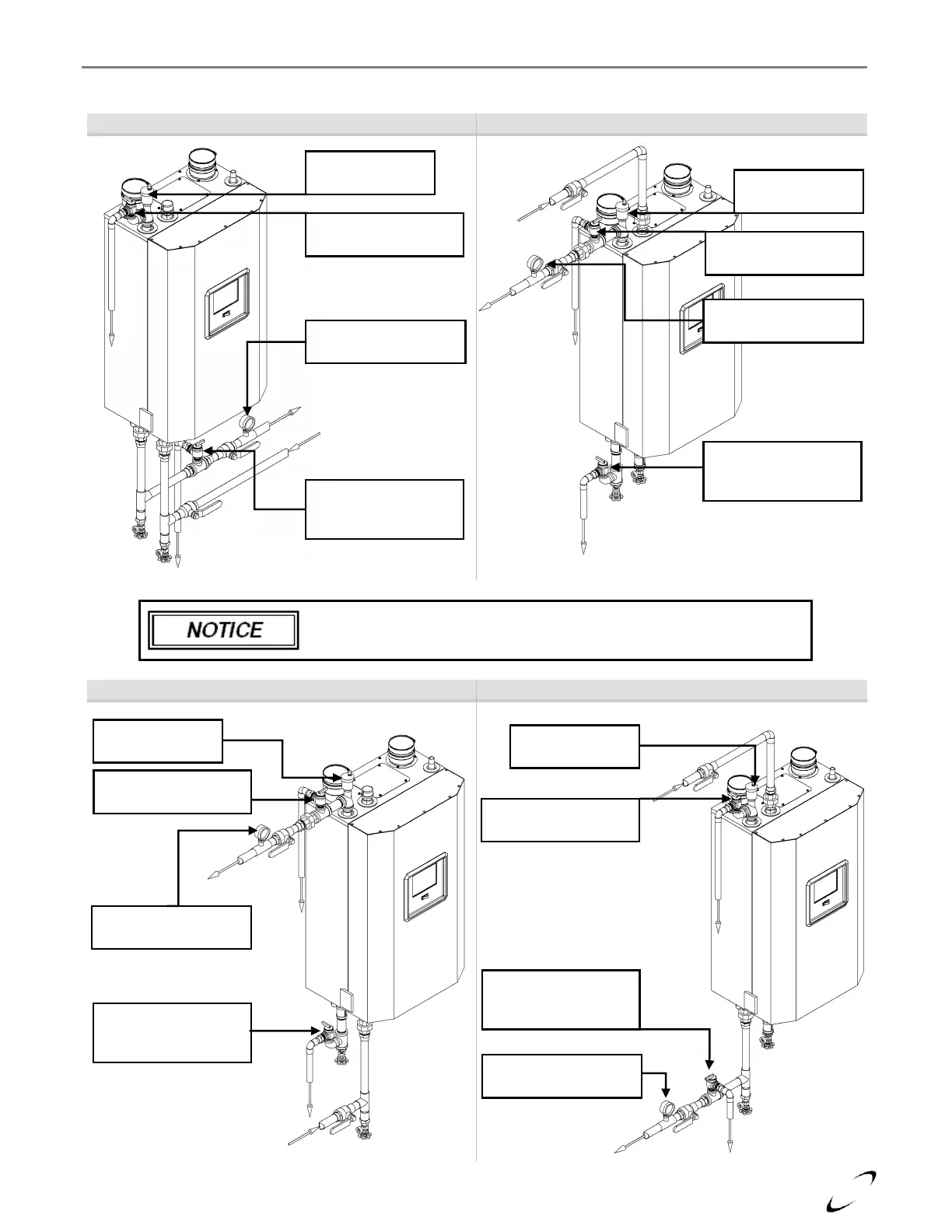

Near Boiler Piping (Tft60-154)
Figure 10-1(a) Supply/Return Bottom
Figure 10-1(b) Supply/Return Top

Boiler Outlet and Inlet water connection location varies between
models; reference the applicable figure for correct location.
Figure 10-1(c) Supply Top / Return Bottom
Figure 10-1(d) Supply Top / Return Bottom
Inlet
Outlet
Auto Air-Vent
(factory Supplied)
Pressure Relief Valve
(factory Supplied)
Press. & Temp. Gauge
(factory Supplied)
Pressure Relief Valve
(alt. location – check
local installation codes)
Inlet
Outlet
Auto Air-Vent
(factory Supplied)
Pressure Relief Valve
(factory Supplied)
Press. & Temp. Gauge
(factory Supplied)
Pressure Relief Valve
(alt. location – check
local installation codes)
Outlet
Inlet
Pressure Relief Valve
(alt. location – check
local installation codes)
Press. & Temp. Gauge
(factory Supplied)
Pressure Relief Valve
(factory Supplied)
Auto Air-Vent
(factory Supplied)
Inlet
Outlet
Auto Air-Vent
(factory Supplied)
Pressure Relief Valve
(factory Supplied)
Pressure Relief Valve
(alt. location – check
local installation codes)
Press. & Temp. Gauge
(factory Supplied)
