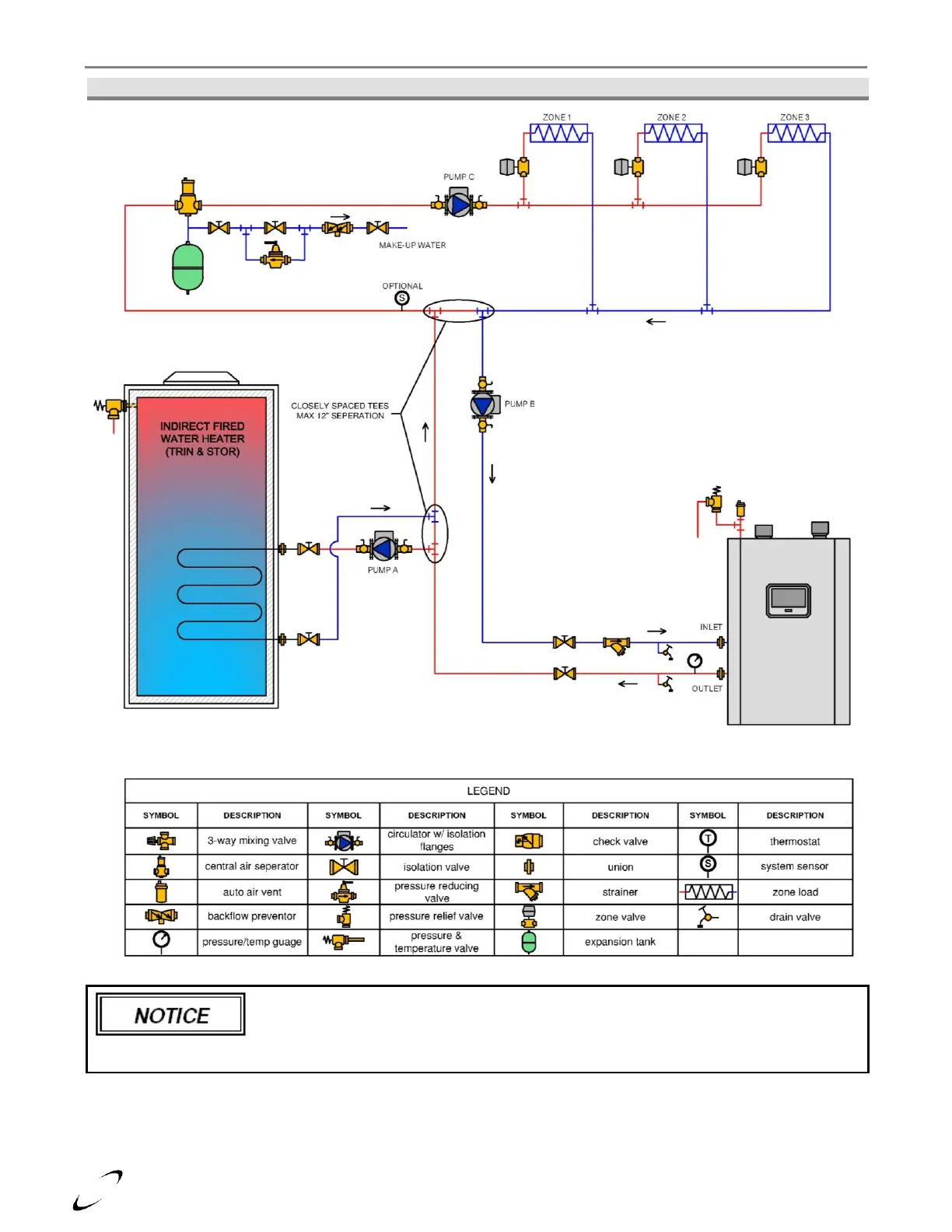

Figure 10-5 Plumbing Schematic – Single Central Heating Circulator
Figure 10-5 illustrates the basic plumbing requirements for a Trinity Tft boiler
installation with a single Central Heating circulator, and an Indirect Water Heater.
Refer to Figures 10-1 through 10-3 for identification of boiler water connections, as
their locations will vary between boiler models.
