Tft Series Installation and Operation Instructions │Trinity
49

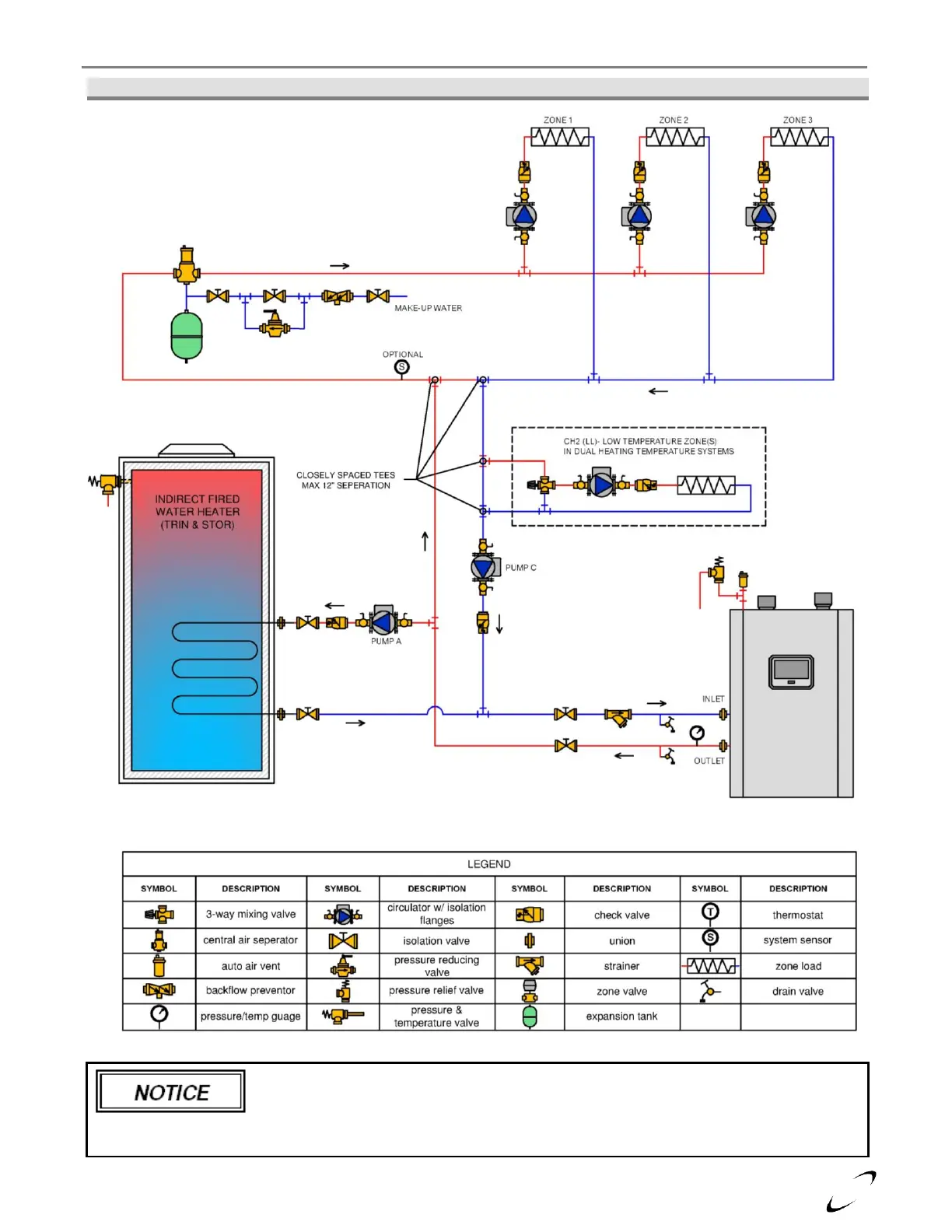

Figure 10-6 Plumbing Schematic – Multiple Central Heating Circulators
Figure 10-6 illustrates the basic plumbing requirements for a Trinity Tft boiler
installation with a multiple Central Heating circulators, and an Indirect Water Heater.
Refer to Figures 10-1 through 10-3 for identification of boiler water connections, as
their locations will vary between boiler models.
