Rev. December 19, 2008 Page 17 of 19

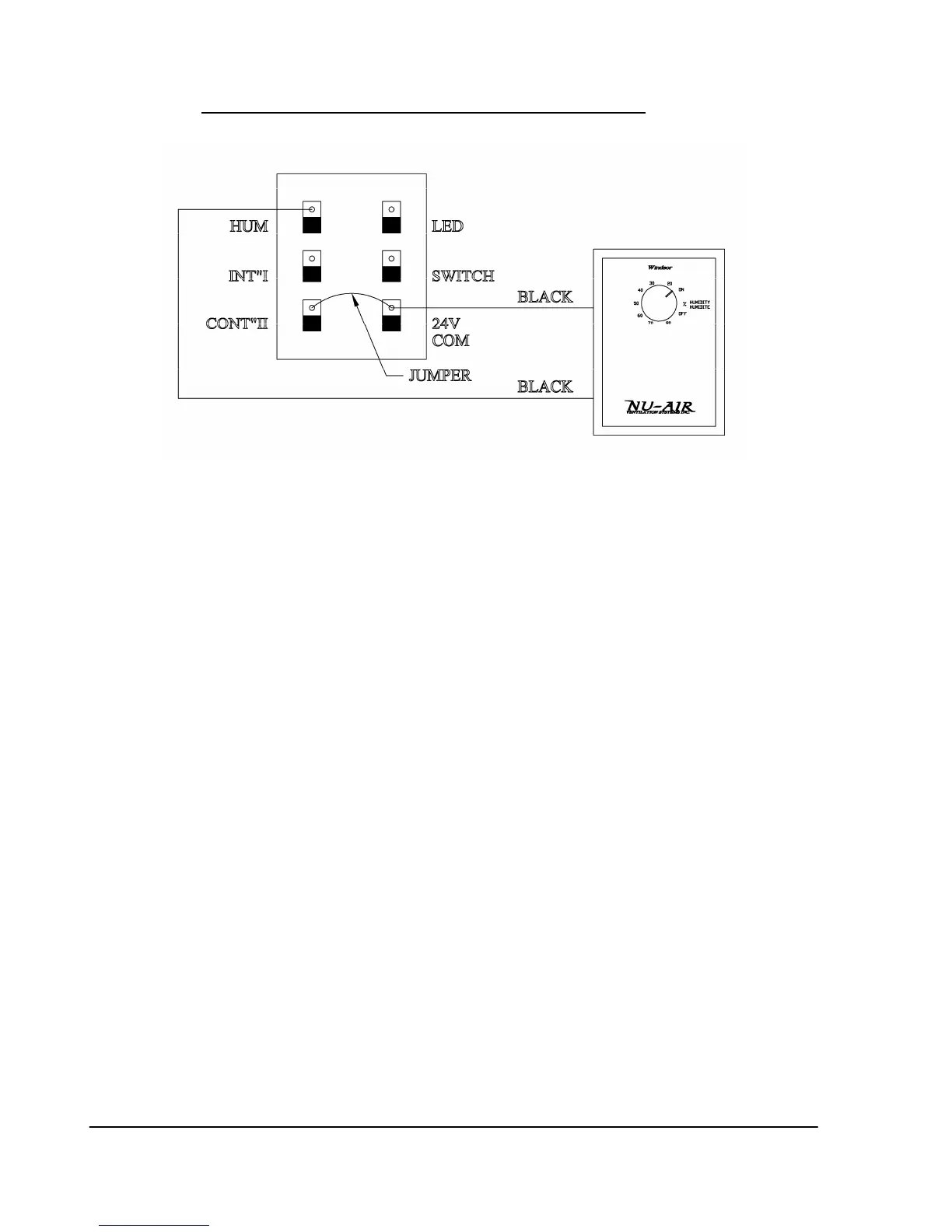

10.2. 24V Standard D-Stat Wiring Diagram (Part#DSTAT-1)
NOTE: Jumper must be removed if WIN-20 timers are installed
