SUB–123P OWNER'S MANUAL PROGRAMMABLE CONTROLLER
NU-VU
®
FOOD SERVICE SYSTEMS MENOMINEE MICHIGAN 49858-1029
(906) 863-4401 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322 page 17

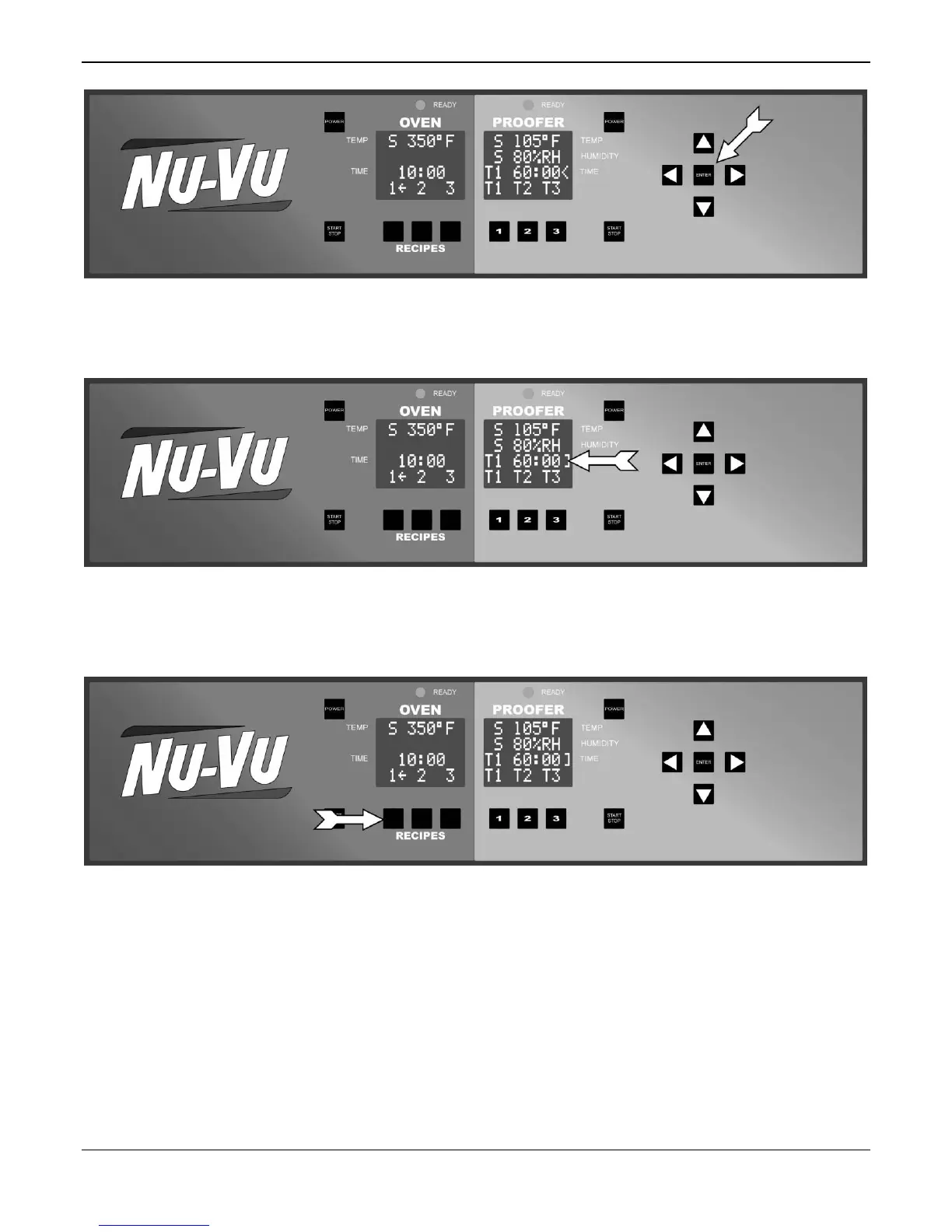

To edit the timer set point the operator would move the cursor to line three and press the enter button.
Now that the time set point is activated, the user can change the value using the directional button.
The controller uses one-touch recipe recall using the buttons located below the oven and proofer displays. A recipe can
also be saved using these buttons. To save the current settings to a recipe slot the operator would hold the button
(beneath the display number) for five seconds, a beep will sound when the recipe has been saved. The save function can
be locked to prevent tampering. Note: The proofer display must show the recipe number in order to save the settings.
