MEGAWATT CARBON BIKE MANUAL | 1 1
ADJUST STEM HEIGHT
The stem height can be made higher or lower to suit rider preference. The headset spacers can be placed below or above
the stem. Do not add too many additional spacers under the stem, as both stem bolts must be clamping fork steerer. If you
are unsure on this process, please consult with your authorised Nukeproof dealer to complete the work.

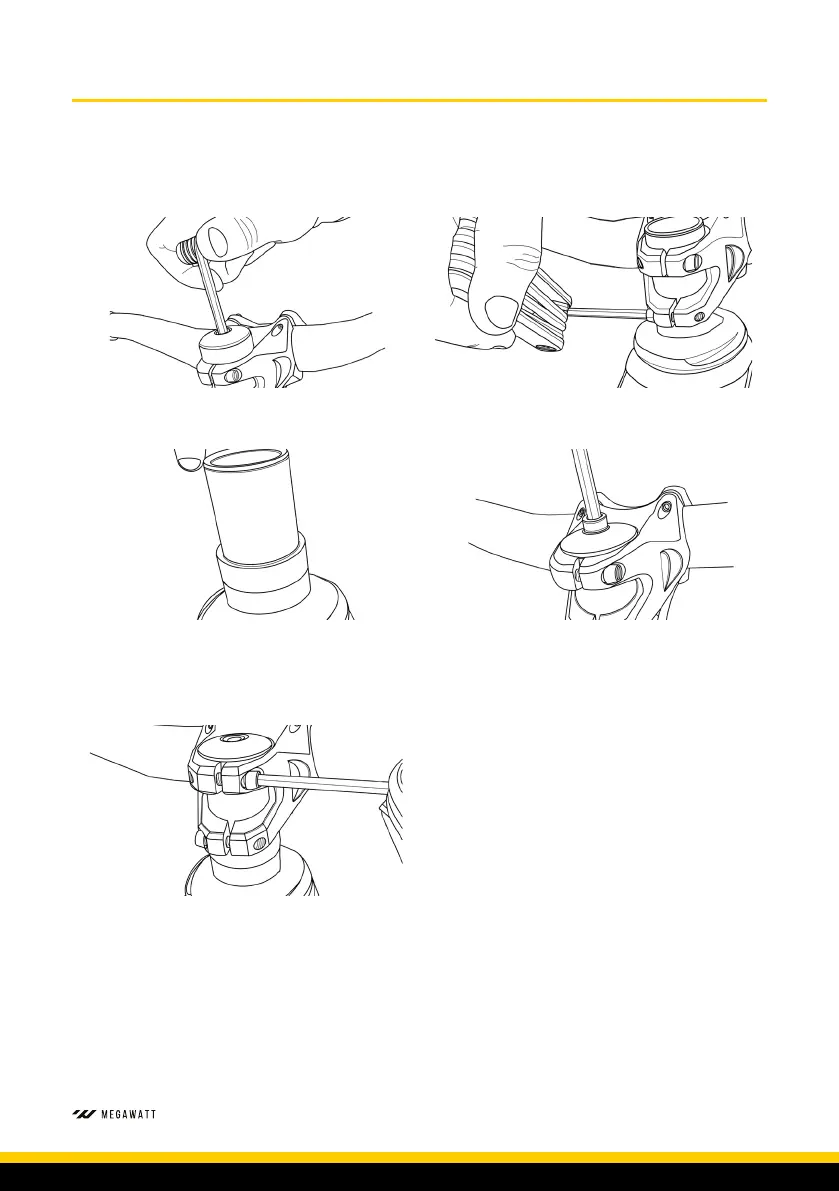

1. Loosen and remove top cap bolt and cover with a 5mm
Allen Key.
2. Loosen both stem steerer clamp bolts with a 4mm Allen
Key
3. Remove stem and place spacers to your preference,
in this example two below the stem to raise height. Both
spacers can be placed above the stem to lower height as
well.
4. Install stem to steerer, replace top cap and bolt and
tighten with 5mm Allen Key. If steering becomes stiff, top
cap bolt is overtightened.
5. Straighten stem and retighten stem steerer clamp
bolts with a 4mm Allen key.
