MEGAWATT CARBON BIKE MANUAL | 2 2

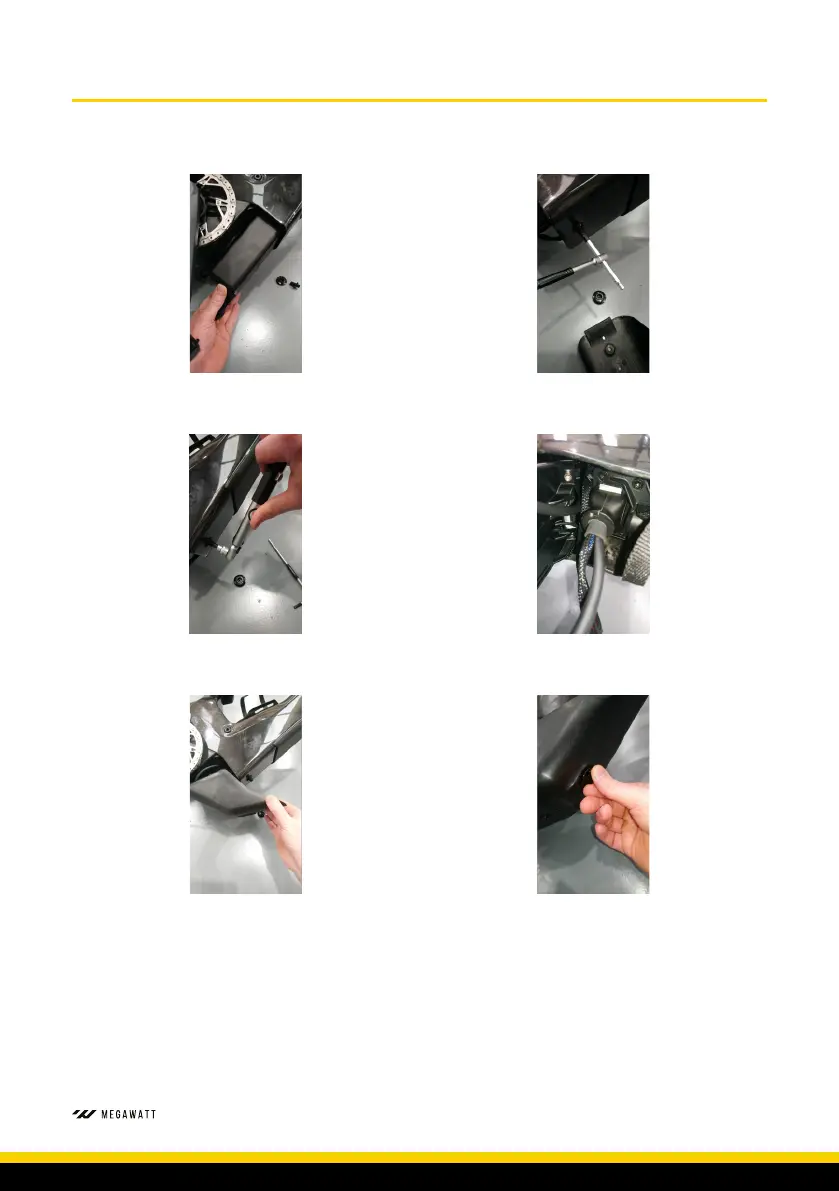

INSTALLING THE BATTERY
To refit the battery simply reverse the removal process.
1. Slide the battery up into down tube. There are guides in
the frame to align the battery correctly.
2. Install the battery bolt into the battery and tighten the
bolt with a 5mm Hex Key.
3. Using a 5mm torque wrench, tighten the battery bolt
to 12Nm.
4. Plug the cable into the battery, The cable is held in
place with magnets.
5. Re-fit the battery door, using the guides in the frame
to seat correctly.
6. Secure the battery door in place with the battery door
cap which has a reverse thread (anti-clockwise). The bat-
tery door cap only needs tightened by hand.
