MEGAWATT CARBON BIKE MANUAL | 2 4
DRIDGE DISPLAY
BATTERY

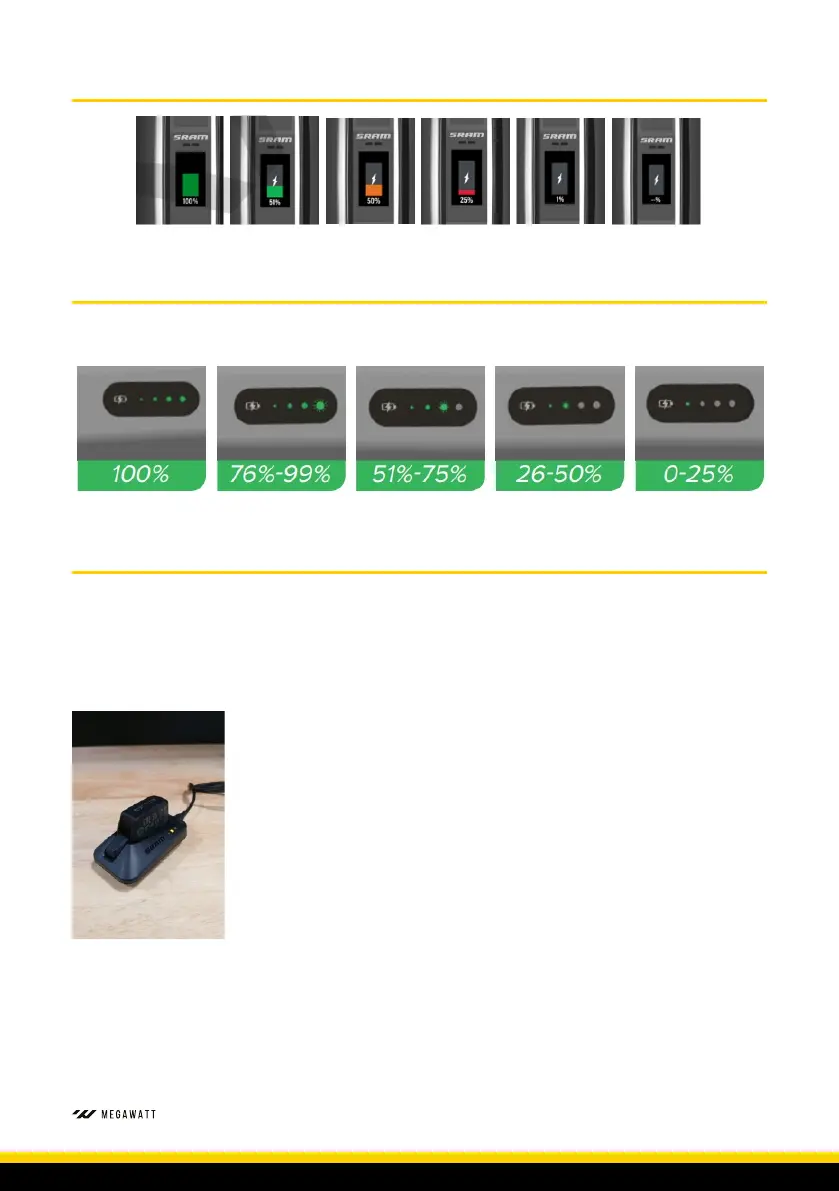

Charge status can be monitored on the battery when it is removed from the bike. Battery is fully charged when all lights
are green with no flashing.
CHARGING AXS DROPPER POST BATTERY
Your bike will be supplied with a Single Base AXS charger and USB Cable. This is for the Reverb AXS Dropper post battery.
Typically, a full charge will take 1 hour.
• To charge, remove protective cover for battery, keep the cover as it will
protect the battery connections when stored.
• Connect USB cable to charger and connect to mains power supply.
• Fit battery to charger, charge time is approximately 1 hour.
• A solid Blue light on the Base indicates power is adequate to charger. Flashing
Blue indicates weak power supply and charge time will be slower.
• Amber light indicates battery is charging.
• Green light indicates battery is now fully charged.
