MEGAWATT CARBON BIKE MANUAL | 4 9

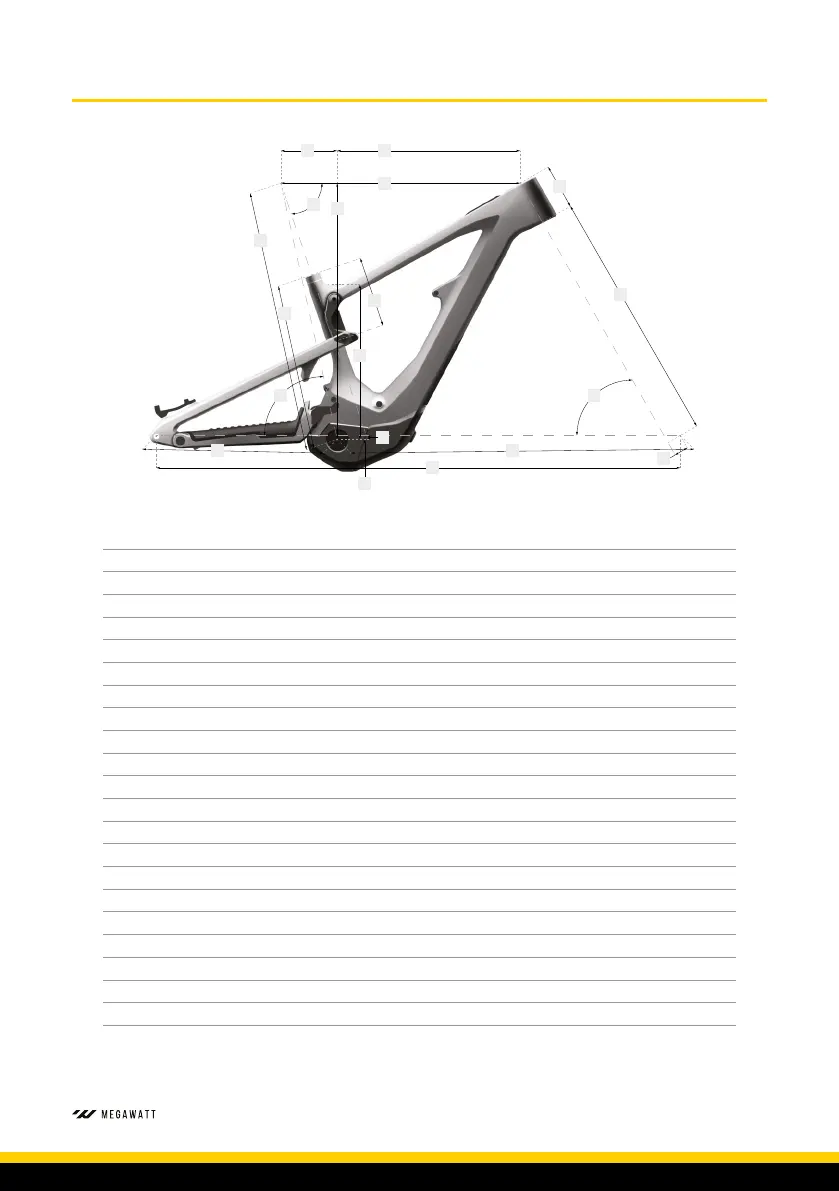

*All dimensions in mm unless otherwise stated
SM MD LG XL XXL
(A) Reach 435 455 475 495 515
(B) Stack 624.29 633.25 642.19 651.14 660.09
(C) Effective Top Tube 573.4 595.39 611.5 633.4 655.31
(D) Seat Tube Length 380 410 440 460 480
(E) Effective Seat Tube Angle 77.5° 77.5° 78° 78° 78°
(F) Seat Tube Angle 71° 71° 72° 72° 72°
(G) Saddle Height At Saddle Offset 650 700 750 800 850
(H) Saddle Offset At Saddle Height 140.84 157.22 165.52 181.03 196.54
(I) Head Tube Length 100 110 120 130 140
(J) Head Tube Angle 63.5° 63.5° 63.5° 63.5° 63.5
(K) Chainstay Length 447 447 447 447 447
(L) Front Centre 778.23 802.69 827.16 851.62 876.08
(M) Wheelbase 1225.28 1249.74 1274.04 1298.51 1322.97
(N) Bottom Bracket Drop (Front/Rear) -30/-10 -30/-10 -30/-10 -30/-10 -30/-10
(O) Bottom Bracket Height 348.50 348.50 348.50 348.50 348.50
(P) Standover Height 737.33 737.33 742.87 742.87 748.19
(Q) Fork Travel 170 170 170 170 170
(R) Trail 141.78 141.78 141.78 141.78 141.78
(S) Fork Offset 44 44 44 44 44
(T) Based On Axle To Crown 582 582 582 582 582
(U) Max Seatpost Insert 216 248 275 305 340
F
C
AH
B
E
o
N
I
T
M
P
G
D
U
J
k L
S
GEOMETRY
