35

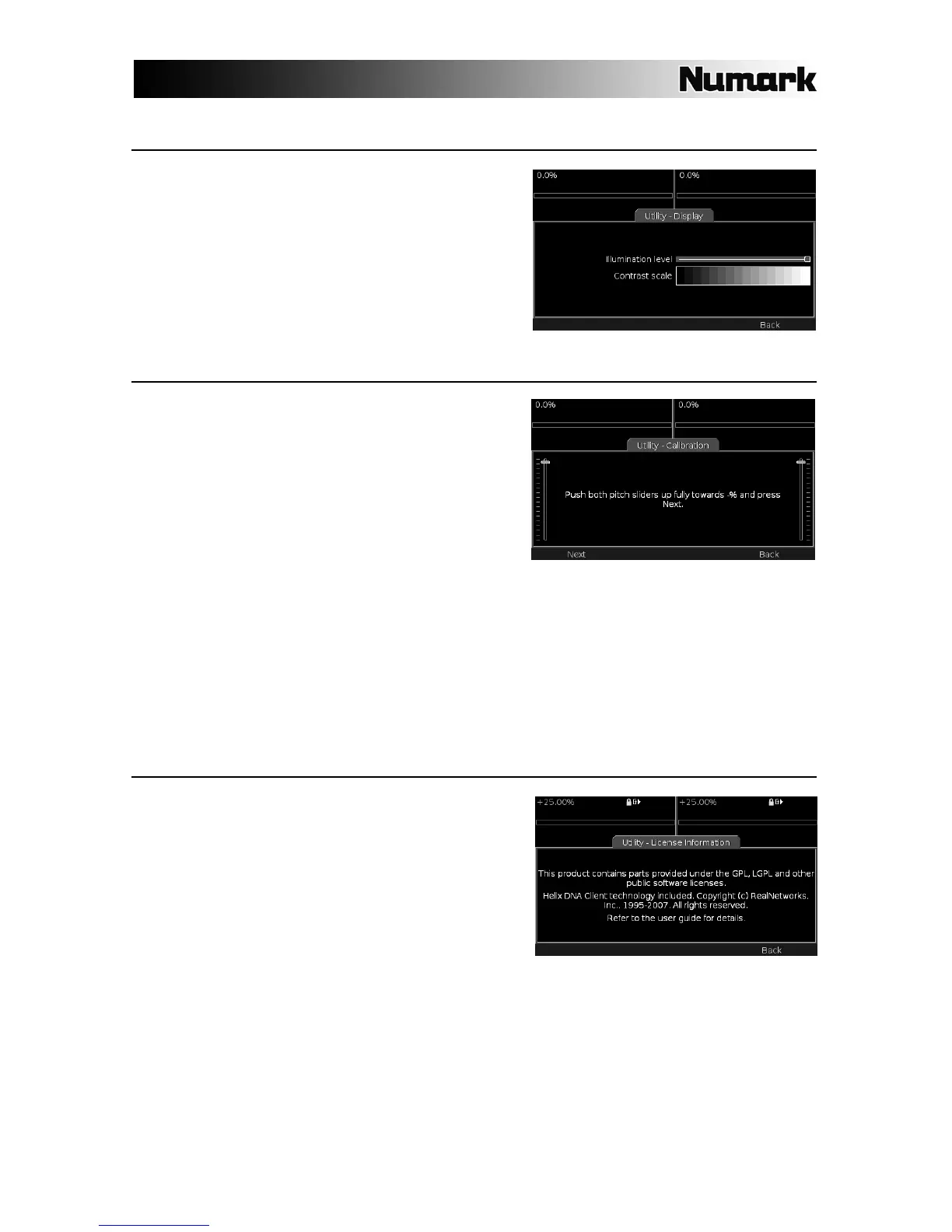

Display
From here the display brightness can be adjusted.
Also, a scale of shades from black to white is shown on
screen as an aid to setting the display contrast. Adjust the
contrast by rotating the Display Contrast knob located to
the left of the display until the left most segment of the scale
is black, the right most is white, and three shades can be
identified in between.
Calibrate
This function is used to calibrate the pitch sliders. Your
HDMIX has been pre-calibrated at the factory, but the
characteristics of the sliders may change slightly over time. If
the top, center and bottom positions no longer align with the
expected pitch range you should run this calibration routine.
Select Calibrate, then when prompted:
1. Move both sliders to the fully upward position (to the -
% symbol)
2. Select Next
3. Move both sliders to the center position
4. Select Next
5. Move both sliders to the fully downward position (to the +% symbol)
6. Select Next
Calibration is now complete. Press the Utility button to exit.
Note: If you mix up the calibration procedure by swapping over the minus and plus ends of the
scale, the pitch slider will have no effect! Simply re-run the calibration.
Licenses
This screen displays the licensing information for the
HDMIX’s parts and software.
