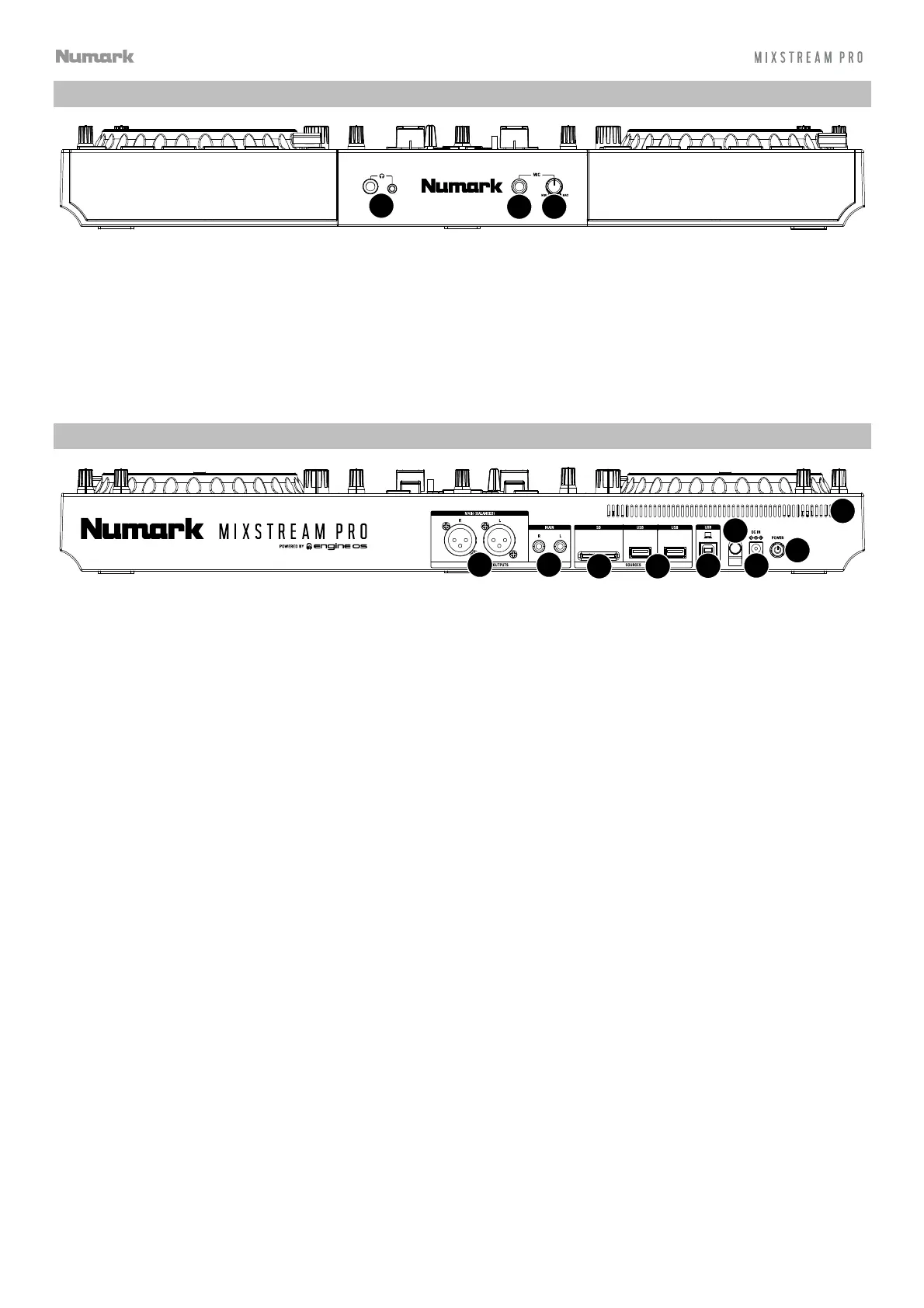

Front Panel
2
1
3
1. Headphones (1/4”, 1/8”) (6.35 mm, 3.5 mm): Connect your 1/4” or 1/8” (6.35 mm or 3.5 mm) headphones to
this output for cueing and mix monitoring. The headphone volume is controlled using the Cue Gain knob.
2. Mic Input (1/4” / 6.35 mm): Use a standard 1/4” (6.35 mm) cable (not included) to connect a standard dynamic
microphone to this input.
3. Mic Level: Turn this knob to adjust the volume level of the microphone input. You can adjust the microphone
attenuation and routing in the Settings menu.
Rear Panel
21
45
6
73
8
9
1. Main Outputs (XLR, balanced): Use standard XLR cables to connect these outputs to loudspeakers or an
amplifier system. Use the Main knob on the top panel to control the volume level.
2. Main Outputs (RCA, unbalanced): Use standard RCA cables to connect these outputs to loudspeakers or an
amplifier system. Use the Main knob on the top panel to control the volume level.
3. SD Card Slot: Insert a standard SD card to this slot. You can use the touchscreen to select and load tracks from
your SD card.
4. USB-A Ports: Connect standard USB drives to these USB ports. When you select a USB drive as a source, you
can use the touchscreen to select and load tracks from your USB drive. You can also connect a keyboard to
these ports to easily search through your library.
5. PC USB-B Port: Use a standard USB cable (included) to connect this USB port to an available USB port on your
computer.
6. Power Adapter Restraint: Secure the power adapter cable to this restraint to prevent it from accidentally
unplugging.
7. Power Input: Use the included power adapter to power the unit.
8. Power Button: Press this button to power Mixstream Pro on. Power on Mixstream Pro only after you have
connected all of your input devices and before you power on your amplifiers and loudspeakers.
To power off Mixstream Pro, press this button and follow the prompts on the touchscreen. Power off your
amplifiers and loudspeakers before powering off Mixstream Pro.
9. Vent: Make sure this vent is unobstructed while using Mixstream Pro.
