4

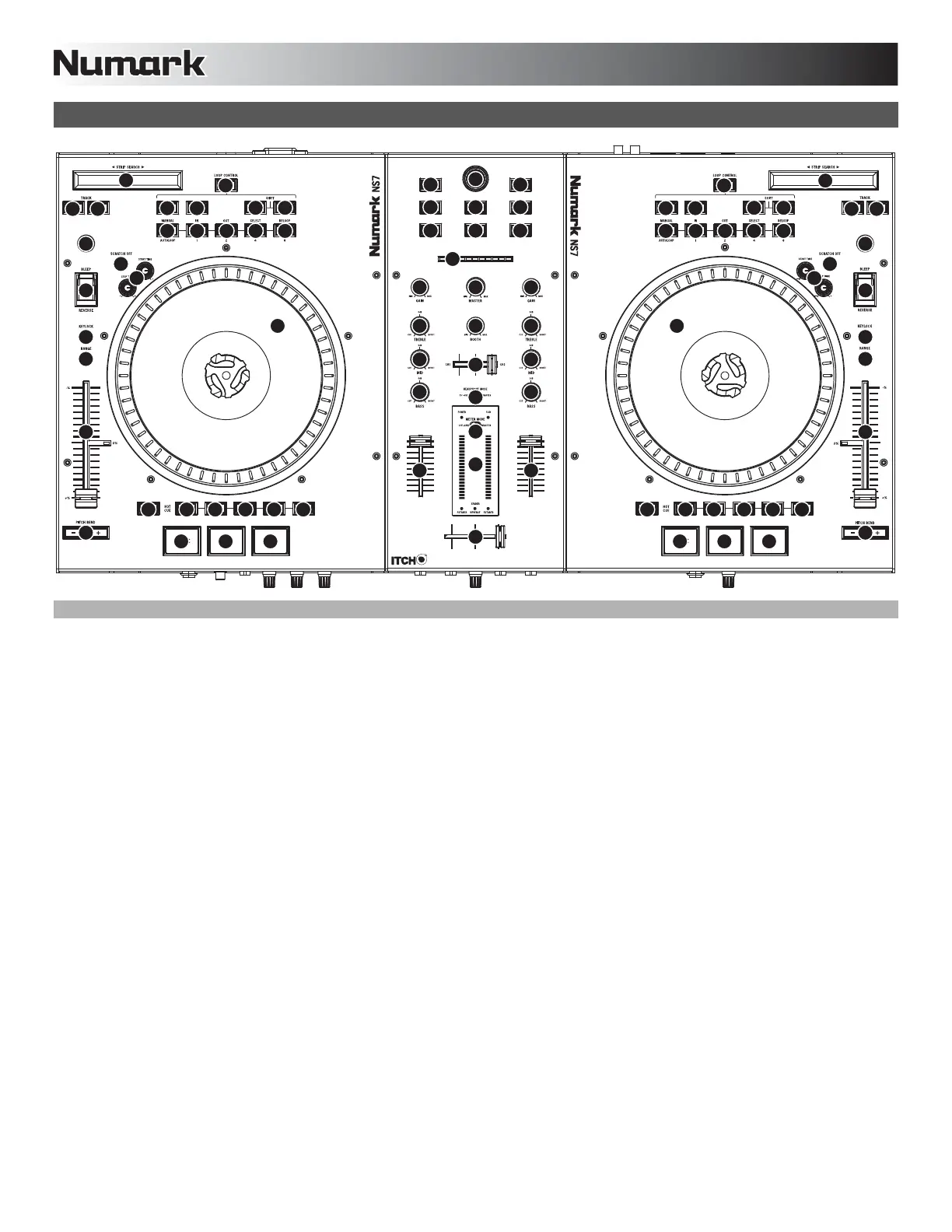

TOP PANEL OVERVIEW
1
2
13
14
15
16
19
17
20
20
20
20
20
14
15
16
19
20
20
20
20
20
13
7
47
46
40
46
44
43
45
41
42
42
8
3
4
9
10
11
12
5
6
1
2
3
4
5
17
18
34
35
36
37
38
39
18
34
35
36
37
38
39
21
22
23
24
25
29
30
26
27
28
21
31
32
33
31
32
33
22
23
24
25
29
30
26
27
28
MIXER CONTROLS
1. GAIN TRIM – Adjusts the pre-fader, pre-EQ audio level of the corresponding channel in the software.
2. CHANNEL TREBLE – Adjusts the high (treble) frequencies.
3. CHANNEL MID – Adjusts the mid-range frequencies.
4. CHANNEL BASS – Adjusts the low (bass) frequencies.
5. CHANNEL FADER – Adjusts the audio level on the corresponding channel in the software.
6. CROSSFADER – Blends audio between the channels assigned to the left and right side of the crossfader.
Note: The crossfader is user-replaceable if it should ever wear out. Simply remove the facepanel, then remove the screws holding
it in position. Replace the fader with a quality authorized replacement from your local Numark retailer only.
7. MASTER VOLUME – Adjusts the output volume of the Program Mix.
8. BOOTH VOLUME – Adjusts the output volume of the BOOTH OUTPUT mix.
9. HEADPHONE MIX – Blends the pre-fader audio playing on Channels 1 and 2. Sliding this to the left plays Channel 1. Sliding to
the right plays Channel 2.
10. HEADPHONE MODE – Selects the audio that is sent to the headphones. Switch it to "MASTER" to hear the Program Mix. Switch
it to "CH1 CH2" to hear a mix of Channels 1 and 2 in the headphones.
11. METER MODE – Determines whether audio from the Program Mix or the Cue Channel is sent to the LED METERS. When set to
"CH1-CH2," the Cue Channel will be monitored (Channel 1 in the left meter, Channel 2 in the right meter). When set to
"MASTER," the Program Mix will be monitored in stereo.
12. LED METERS – Monitors the audio levels of the Program Mix or Cue Channel, depending on the position of the METER MODE
switch.
