Operating Instruction and Documentation
2.30 SPL
- 22 -
• Fasten the Stopp-limit rope and the top-limit switch on the operating column.
• Fasten the cover of the cylinder.
• Position the columns as described in the foundation diagram drawing
.

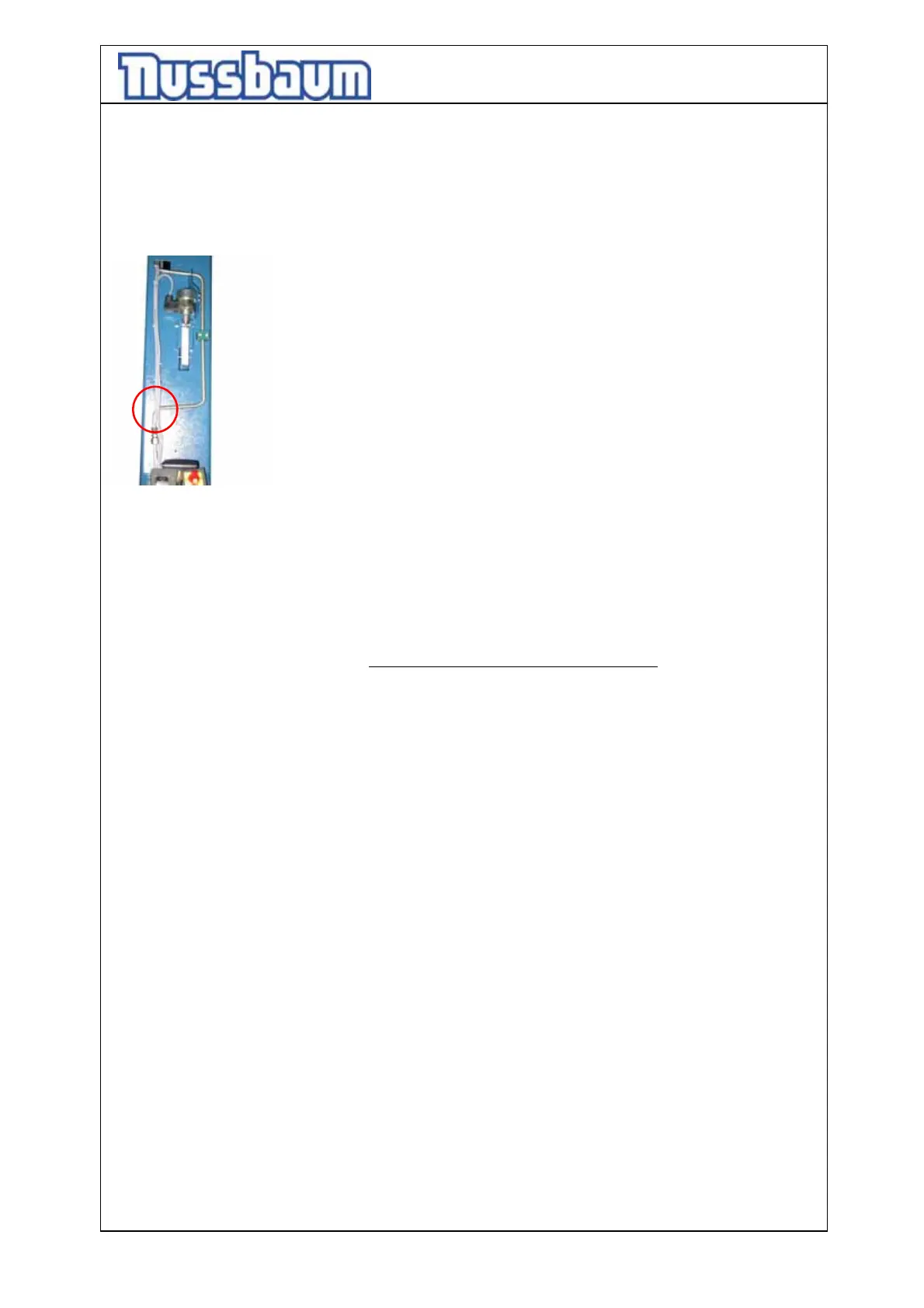

• Hang on the hydraulic aggregate at the screws at the column. Fasten the screws.
Connect the marked supply cables (ratchet magnet, top-limit switch, etc.).
Connect the hydraulic pipe of the cylinder with the screw fitting. If
necessary, you have to adjust the hydraulic pipe.
• To avoid damages, save the electrical cable (to supply the electrical magnet) with
cable clips at the hydraulic pipe.
• Put on the cross beam at the top of the columns and fasten it. Connect the hydraulic
pipes and connect the oil-return line (synthetic material) afterwards at both columns.
• Put both synchronising ropes over the rolls at the top and insert them from the upper
side in column. (see pic. 5). Attention: The ropes must not be crossed!
• Connect the equalization ropes but do not secure.
